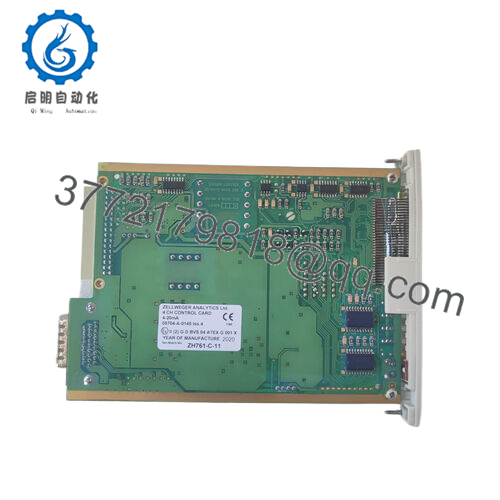

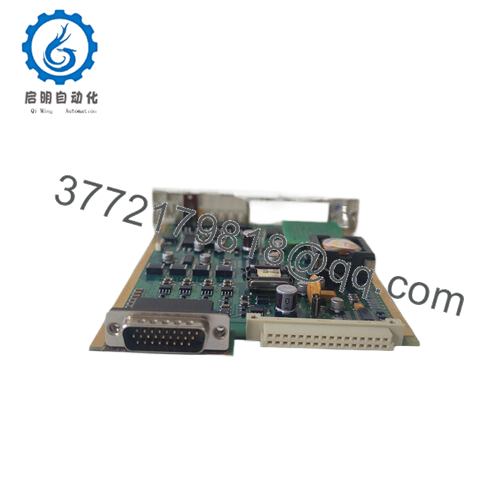

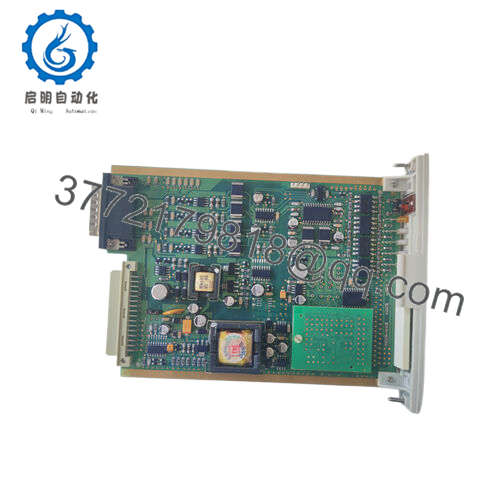

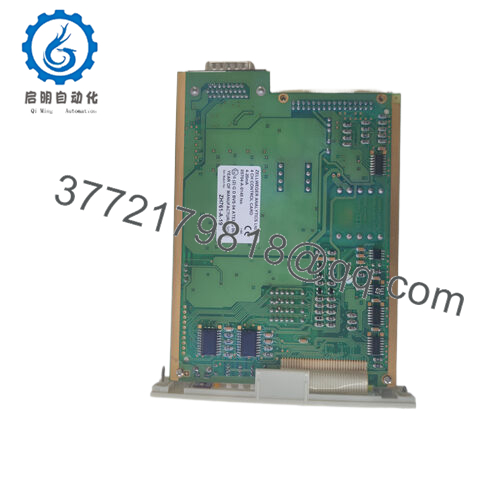

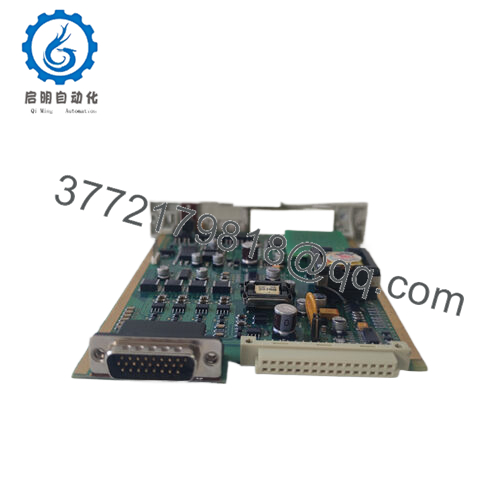

Honeywell 05704-A-0145 High-Performance Signal Conditioning and Conversion Module

Description

The Honeywell 05704-A-0145 is a four-channel control card designed as part of Honeywell’s System 57 family, primarily used for industrial gas detection and monitoring applications. This module is widely applied in sectors such as petroleum, chemical processing, environmental monitoring, and municipal engineering, where continuous detection and control of flammable or toxic gases like methane, carbon monoxide, and chlorine are critical to safety and process integrity. It connects to field-mounted gas sensors via 4-20mA input interfaces and processes multiple sensor signals simultaneously, consolidating data to the control system for real-time monitoring and alarm management.

Specifically, the 05704-A-0145 accepts analogue signals from gas detectors, offering precise signal conditioning and multiplexing for up to four independent channels. It converts input signals into standardized outputs, with options for isolated 24V loop-powered output supporting up to 25mA, making it compatible with chart recorders, PLCs, and data acquisition systems. The card supports various alarm levels including A1, A2, and A3, alongside STEL (Short-Term Exposure Limit) and LTEL (Long-Term Exposure Limit) alarms, enabling multi-level safety response modes like main, zoned, or vote alarms. Its front-panel includes backlit displays for gas readings and LED indicators for alarm status, enabling quick on-site diagnostics and control.

Designed in a compact 3U card format for ease of rack integration, its dimensions are approximately 132 mm high, 25 mm wide, and 172 mm deep, weighing around 170 grams. The card interfaces through 26-way and 32-way connectors to relay interface cards and backplanes respectively. It operates reliably within power supply ranges of 18-32 V DC and consumes up to 8.3 W. The module supports comprehensive calibration and configuration using a dedicated engineering card, which facilitates sensor calibration, alarm setup, and relay testing.

Installation requires mounting within a System 57 rack and consideration for proper wiring, grounding, and signal shielding to ensure signal integrity and compliance with EMC standards. Routine maintenance involves verifying sensor calibration, inspecting LEDs and alarm functionality, and leveraging remote disable/reset inputs for system control.

This control card is best suited for legacy or current Honeywell System 57 installations where comprehensive multi-channel gas monitoring is necessary. Engineers should ensure compatibility with existing relay cards and output modules for full alarm interfacing and system integration. Maintenance and calibration facilitated by the engineering card enhances system reliability and operational safety.
