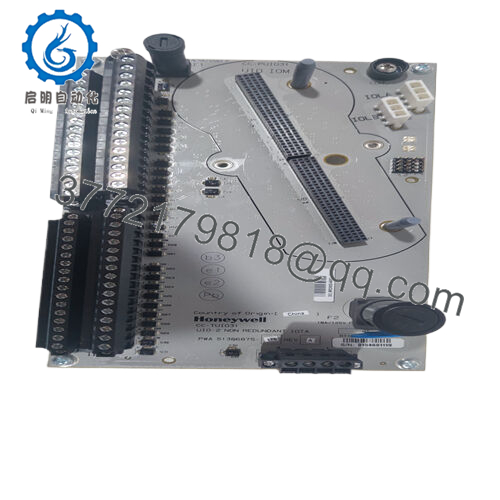

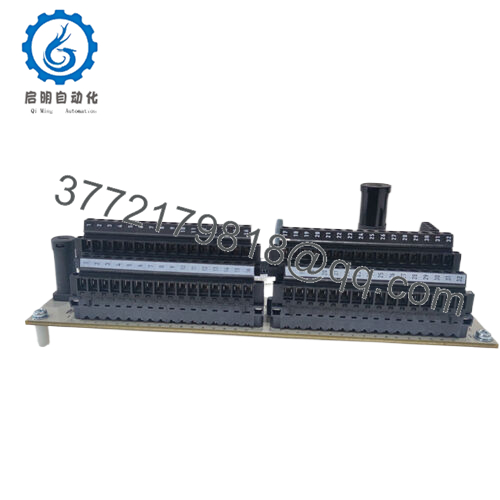

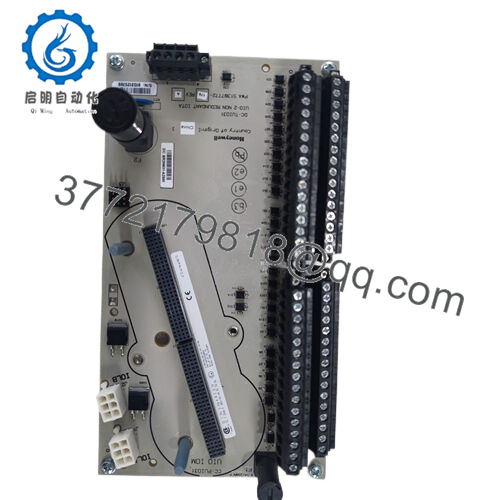

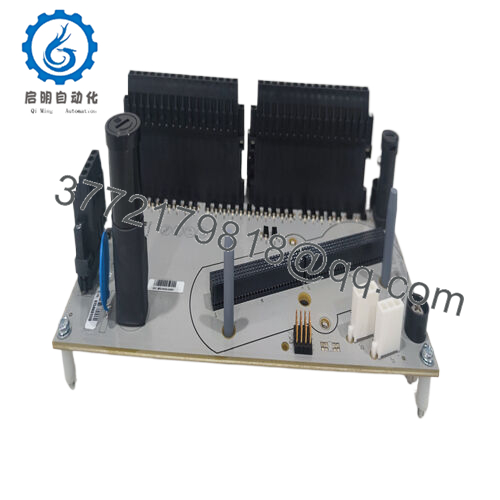

Honeywell DC-TUIO31 multi-function input/output (I/O) module

Description

In process control systems where mixed analog and digital signals from field devices must converge reliably without introducing noise or compatibility headaches, the Honeywell DC-TUIO31 offers a versatile fix for engineers dealing with fragmented I/O termination in non-redundant setups. Picture a blending skid in a chemical facility where mismatched wiring for voltage inputs and relay outputs leads to erratic level readings or valve hesitations, spiking batch variances and waste, or a compressor control panel where unshielded terminations amplify EMI, causing false digital triggers that halt operations mid-cycle—these snags often stem from assemblies that can’t handle hybrid signals in a single footprint or falter at grounding imbalances in shared cabinets. This universal I/O termination assembly (IOTA) tackles them by consolidating 32 channels—configurable for analog (e.g., 4-20 mA or 0-10 V) and digital (discrete I/O)—into a streamlined, non-redundant interface that routes cleanly to your C300 module, ensuring signal purity through compression terminals that support up to 12 AWG wiring while buffering common-mode voltages to preserve loop integrity in dynamic field conditions.

It shines in industrial automation environments like chemical batching or discrete assembly, where high reliability in mixed-signal termination supports modular expansions without the overhead of custom harnesses. The Honeywell DC-TUIO31 anchors Experion PKS Series-C architectures, linking directly to universal I/O modules like the CC-PUIO01 for flexible scaling from 16 inputs/16 outputs, so you avoid the sprawl of dedicated terminators for each signal type. For teams extending legacy TPS nodes, it bridges without major rewiring, easing upgrades by preserving compatibility with existing marshalling while enhancing fault tolerance against transients in vibration-heavy enclosures. In expansive process control deployments, its 9-inch non-redundant design and coated finish withstand humid or dusty atmospheres from -40°C to +70°C, facilitating dense node builds that handle fast scan rates without latency creep. By prioritizing hybrid channel flexibility and robust termination, the Honeywell DC-TUIO31 underpins system stability, allowing tighter integration of sensors and effectors that optimizes throughput and reduces variance, all while lightening the engineering lift of field wiring in rigorous industrial automation frameworks.

When scoping IOTAs for versatile stacks, the Honeywell DC-TUIO31 aligns for its signal agnosticism and footprint efficiency, delivering the termination reliability that unifies analog/digital paths in EMI-challenged or cable-congested environments without sacrificing deployment agility.

The Honeywell DC-TUIO31 operates as a non-redundant universal I/O termination assembly in the field wiring layer of Honeywell’s Experion PKS Series-C distributed control systems, routing mixed analog and digital signals from transmitters, switches, or valves to the C300 I/O module via compression terminals. It deploys in marshalling cabinets or sub-racks, supporting 32 channels configurable as 16 analog inputs/outputs (4-20 mA or 0-10 V) or 32 digital I/O points, with optional jumpers for shunt engagement on current loops and 250-ohm resistors for HART compatibility. This setup decouples signals through per-channel isolation up to 500 V, enabling bidirectional flow for diagnostics without analog disruption, while compression terminals accommodate 12-24 AWG wiring for flexible field routing up to 100 m without repeaters.

In a layered configuration, it interfaces downstream to field devices and upstream to the Series-C bus via the C300 carrier, drawing minimal power while relaying status through the module’s diagnostics for open circuits or overrange alerts to HMIs. It pairs with non-redundant siblings like the DC-TAID01 for hybrid nodes, handling scan rates to 100 ms per channel and complying with FOUNDATION Fieldbus for extensions, with built-in shielding to curb crosstalk in shared trays. Positioned at the field-to-backplane boundary, the Honeywell DC-TUIO31 streamlines I/O architecture by consolidating terminations in a 9-inch assembly, where screw blocks facilitate screened cabling in enclosures—cultivating a resilient pathway that integrates with safety systems via Profisafe, upholding signal purity across topologies without introducing ground loops or reconfiguration hurdles.

Integrating the Honeywell DC-TUIO31 equips your C300 with termination versatility that handles 32 hybrid channels without multiplexing delays, dodging the silos that warp baselines and loosen control grips in mixed-signal loops, which in turn steadies measurements and trims deviations in variables like discrete states or analog trends without added converters. This adaptability shines in configurable configs, where jumpers parse analog/digital seamlessly, empowering broader device coverage that anticipates growth without cabling overhauls.

Diagnostic ties refine field efficiency too, with terminal status that surfaces wiring faults for targeted fixes, confining downtime to minutes in monitored cabinets versus hours for unshielded runs. Its compact form trims deployment friction as well—snaking assemblies demands only pair mapping, not panel rebuilds, which reallocates engineering from routing mazes to signal validation. Forged for cabinet grit, it weathers 10 g shocks and 95% humidity with coated terminals, buffering 500 V surges to undergird long-term clarity, keeping your PKS frontier attuned to field nuances through expansions or surge events gracefully.

In chemical blending skids, the Honeywell DC-TUIO31 routes hybrid signals from level transmitters and solenoid pilots, where its channel flexibility endures steamy, EMI-choked housings to lock in critical system uptime and recipe fidelity in ceaseless batch control.

Gas turbine enclosures leverage it for vibration sensor inputs and fuel valve discretes, handling fast data cycles amid thermal, hydrocarbon-laced zones to synchronize high-reliability starts.

For discrete packaging lines, this IOTA aggregates encoder pulses and gate outputs, meeting high-speed constraints with universal pairs that enable modular cabinet growth in expansive I/O marshalling.

DC-TUIO11 – Redundant variant for dual-path universal termination in high-availability field wiring.

DC-TAID01 – Analog input-focused IOTA for non-hybrid signal terminations in less versatile setups.

DC-TDOX01 – Digital output counterpart for discrete-heavy field interfacing.

CC-PUIO01 – Matching universal I/O module for processing signals from the DC-TUIO31 upstream.

DC-TUOD31 – Coated edition for enhanced humidity resistance in harsh enclosures.

DC-TUIO21 – Extended-length (12-inch) non-redundant IOTA for longer field runs.

CC-TAOX11 – Analog output IOTA for balanced hybrid termination in bidirectional nodes.

Before wiring the Honeywell DC-TUIO31, align with C300 firmware at version 10.x or later for full channel polling, and torque compression terminals to 0.6 Nm to seal against vibration—loose grips amplify noise in dynamic mounts. Gauge pair imbalances under 500 Ω to uphold integrity, and braid shields grounded solely at the IOTA end to drain EMI without loops, vital in trays near solenoids.

Sustaining it calls for semiannual terminal inspections for oxidation in humid process bays, applying dielectric grease to contacts without bridging. Harvest diagnostics quarterly via the Experion console to chart pair trends, flagging dips below 70 dB for cable audits. Biannual end-to-end tests with a 1 V source confirm fidelity across channels, and tagging with run dates syncs with compliance checks. This lean protocol meshes with your PM tempo, preempting degradations that haze signal acuity.
