Sperry Marine 020043-0000-000 Navipilot Solenoid Control Board

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

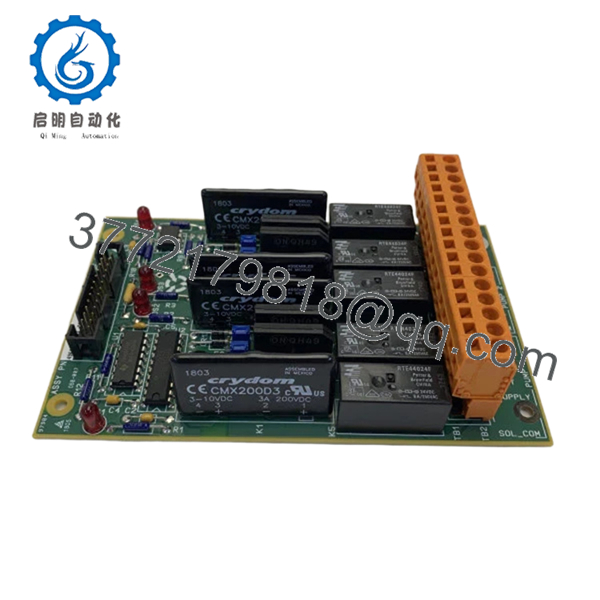

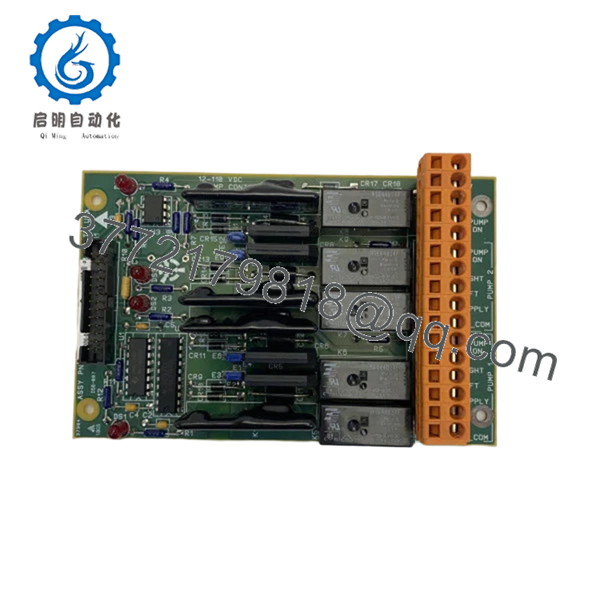

The Sperry Marine 020043-0000-000 is a DC solenoid PCB used within autopilot systems to control steering gear actuation. It interfaces directly with solenoid valves that drive rudder movement, making it a core execution layer in vessel steering automation.

From a supply-chain perspective, this is a critical failure-point component—if the board fails, autopilot control over rudder movement is lost. Availability is already limited to surplus channels, confirming end-of-life status. A structured buffer stock strategy (minimum 1–2 units per vessel) is essential. New Surplus sourcing eliminates the hidden degradation risks found in refurbished boards and stabilizes Total Cost of Ownership (TCO).

020043-0000-000

020043-0000-000

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Apply lock-out/tag-out on autopilot and steering control systems.
• Discharge stored energy in control circuits.
• Use ESD grounding protection.
• Document wiring, terminal layout, and board configuration.
• Verify DC supply range (12–110 V) and ensure ≥20% capacity margin.

Stage 2: Removal

• Power down the Navipilot system fully.
• Disconnect solenoid wiring and control connectors with labeling.
• Remove retaining clips or screws.
• Extract PCB carefully—avoid bending or connector stress.

Stage 3: Installation (Clone & Seat)

• Install replacement PCB in identical slot and orientation.
• Reconnect all wiring exactly as documented.
• Verify secure seating and electrical isolation.

Stage 4: Power-On & Testing

• Restore power and observe system startup.
• Test rudder actuation via autopilot commands.
• Confirm solenoid switching response (no delay or chatter).
• Validate stable heading control under operational load.

6. Firmware/Software Versions & Upgrade Notes

• Firmware Type: Hardware-level control board (no independent firmware in most configurations)
• Compatibility Note:
  • Must match Navipilot system configuration and SCU interface
  • Variants within 020043-0000-xxx family may differ in I/O configuration
• Critical Warning:
  • Installing incorrect variant may result in incorrect solenoid actuation or no steering response
• Best Practice: Replace with identical part number and verify system configuration before energizing

7. Frequently Asked Questions (FAQ)

Q1: Is this PCB truly new or sourced from used systems?
This product is a Brand New Surplus unit. It is not used, not pulled from operational vessels, and not refurbished. It retains original OEM integrity with no wear or repair history.

Q2: Why is this board critical for vessel operation?
This PCB directly controls solenoid valves that actuate the rudder. Failure results in loss of autopilot steering control, forcing manual operation or causing navigation risk.

Q3: Is 020043-0000-000 still in production?
No. This is a legacy component with availability limited to surplus inventory, making proactive lifecycle planning essential.

Q4: What stocking strategy do you recommend?

• Minimum: 1 unit per vessel (insurance policy)
• Critical operations: 2 units buffer stock
• Use cross-site sharing across fleet to reduce capital lock-up
• Execute last-time-buy before global depletion

Q5: What are the risks of refurbished boards?
Refurbished units may contain degraded switching components. In solenoid control applications, this can lead to intermittent rudder response or total steering failure.

Q6: Can this PCB be repaired instead of replaced?
Component-level repair is not recommended for safety-critical steering systems. Replacement with verified New Surplus ensures predictable operation.

Q7: What warranty is included?
12 months warranty with full QC traceability, including electrical verification, functional testing, and inspection sign-off.
