Sperry Marine 5003 Digital Heading Repeater

Description

3. Key Technical Specifications

4. Product Introduction

The Sperry Marine 5003 is a compact, high-reliability digital heading repeater designed for integration with NAVIGAT gyrocompass systems and VisionMaster FT navigation suites. Built to provide an instantaneous, flicker-free readout of the ship’s heading, the 5003 is a staple on the bridge wings, steering consoles, and emergency steering stations of commercial vessels worldwide.

Engineers favor the 5003 for its “plug-and-play” compatibility with NMEA 0183 data streams and its ruggedized construction. Unlike multipurpose monitors, this dedicated repeater features a high-contrast red LED display that ensures zero night-vision degradation for the watch officer. Its solid-state design eliminates the mechanical wear-and-tear common in older “stepping” motor synchro repeaters, making it the preferred choice for modernizing legacy bridge wings.

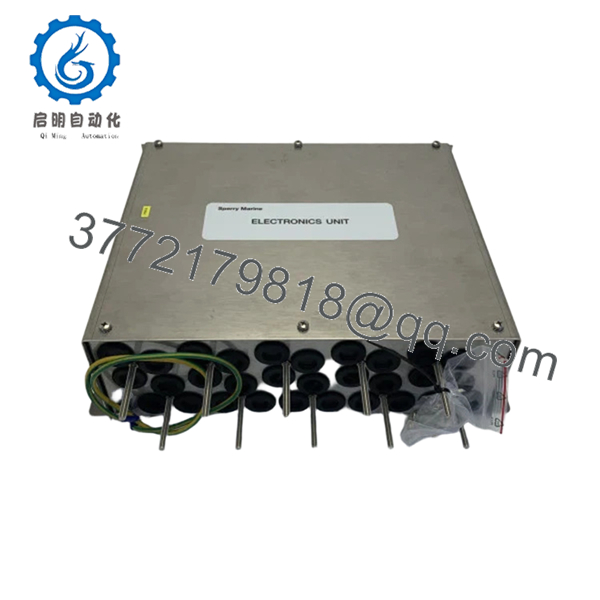

5003

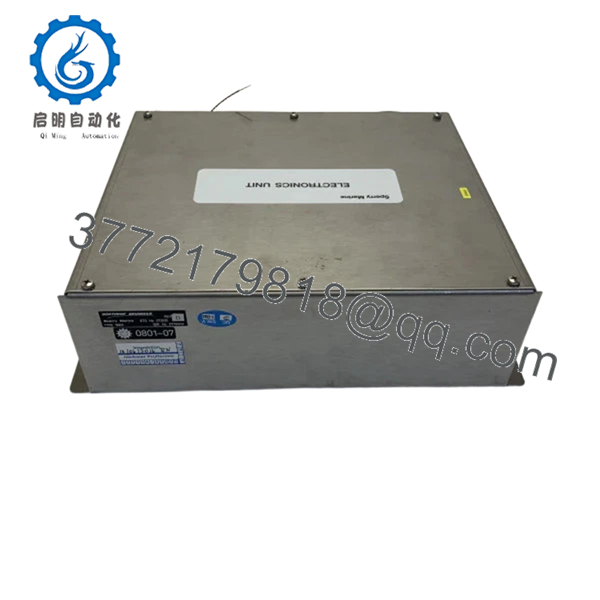

5003

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 10 mins)

• ⚠️ Safety First: Ensure the Gyrocompass is in “Standby” or notify the bridge that heading repeaters will be offline. Isolate the 24 V DC power branch for the specific repeater circuit.
• Tools Required: 2.5mm flat-head terminal screwdriver, 7mm wrench (for mounting studs), and a wire stripper.
• Data Backup: Check the current NMEA baud rate (usually 4,800) and the talker ID (e.g., $HEHDT) from the gyro master unit.

Stage 2: Removing the Old Repeater

1. Unscrew the four corner mounting bolts or rear clamp nuts.
2. Gently pull the unit from the console.
3. Disconnect the Phoenix-style terminal block. ⚠️ Note: Label the “A” and “B” lines for the RS-422 data; swapping these will result in a “No Data” or “Data Error” message.
4. Inspect the 24 V DC supply leads for any insulation cracking.

Stage 3: Installing the New 5003 (Estimated Time: 15 mins)

1. Gasket Seating: Ensure the rubber sealing gasket is perfectly flat against the flange. For bridge-wing (exterior) mounting, this is critical to maintain IP56 protection.
2. Configuration: Use the rear DIP switches or the front-panel menu (hold ‘SET’) to select the input protocol. Standard setup is usually NMEA 0183.
3. Insert the unit into the 92x92mm cutout and secure the mounting brackets.
4. Plug in the terminal block. Ensure the grounding wire is attached to the chassis stud.
5. Self-Checklist: [ ] Baud rate matched, [ ] Gasket sealed, [ ] Polarities checked.

Stage 4: Power-On & Alignment

1. Apply 24 V DC power.
2. Initialization: The unit will cycle through an LED segment test.
3. Synchronization: Once data is received, the display should match the Master Gyro heading.
4. Dimming Test: Verify the “+” and “-” buttons adjust the brightness correctly for night operations.
5. ⚠️ Troubleshooting: If the display shows “Err 1” or “—.-“, the unit is not receiving a valid NMEA sentence. Re-check the A/B data polarity and the baud rate setting.

6. Frequently Asked Questions (FAQ)

Q: Can I use the 5003 with a non-Sperry gyrocompass?

A: Yes. While it’s optimized for Sperry NAVIGAT systems, the 5003 is a standard NMEA 0183 listener. As long as your gyro outputs a standard –HDT, –HDG, or $–HDM sentence, this repeater will display the heading correctly.

Q: Is the 5003 waterproof for mounting on open bridge wings?

A: When flush-mounted with the supplied gasket, the front face is IP56 rated (protected against heavy seas). However, the rear of the unit is IP23. If you are mounting it on a pedestal in an exposed area, it must be housed in a waterproof enclosure.

Q: Why is my 5003 showing a 180-degree offset?

A: This is rarely a hardware fault. Check the settings in your Gyro distribution unit or the 5003’s internal offset menu. Some installers accidentally set a “North/South” flip in the signal converter during commissioning.

Q: Does this unit require a separate synchronization step like older synchro repeaters?

A: No. Because it is a digital NMEA listener, it automatically “syncs” to the data stream as soon as it receives the first valid sentence. There is no need for manual alignment with the master gyro.

Q: Is this “New Original” or a refurbished unit?

A: This is New Original (New Surplus). For maritime safety equipment, “refurbished” repeaters often have dimmed LEDs or failing internal regulators. This is unused factory stock, ensuring maximum brightness and reliability for bridge watch-keeping.

Q: Can I display Rate of Turn (ROT) on this model?

A: Yes, the 5003 can toggle between Heading and ROT if the NMEA $–ROT sentence is being provided by the gyro or an external processor. Use the “MODE” button to cycle the display.
