Key Technical Specifications
- Model: E306.2A REV.D.
- Brand: Stein Sohn GmbH.
- Product type: Printed circuit board / control card.
- Series: E300 family.
- Revision: Rev. D.
- Application: Monitoring / alarm control hardware.
- Compatibility: Verify board revision and connector layout against the original unit.
- Installation note: Match jumpers, cable positions, and mounting orientation before power-up.
- Condition: New Surplus.
- Ordering note: Use the full model string E306.2A REV.D when sourcing replacements.
- E306.2A REV.D
- E306.2A REV.D
Product Introduction

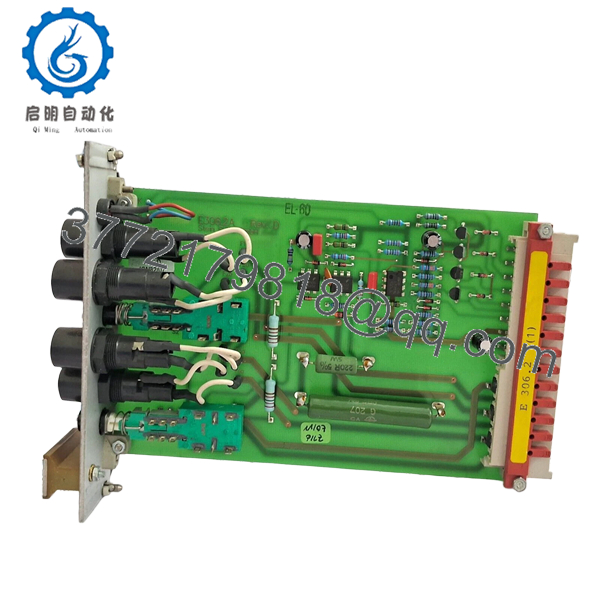

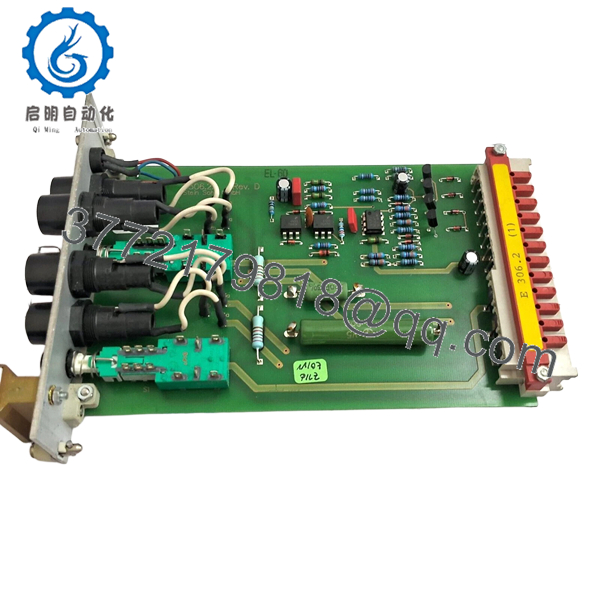

Stein Sohn GmbH E306.2A REV.D is a monitoring PCB card used in industrial or marine control systems. The exact revision matters, because these boards are usually bought as part-for-part replacements for legacy equipment.
This kind of board is selected when the buyer needs the same form, fit, and function as the original unit. Check connector layout, board revision, and wiring before installation to avoid a mismatch that can stop the system from starting correctly.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Board shows no activity on power-up | Missing supply voltage or upstream power fault | ❌ Low | Measure supply rails at the connector with a multimeter | Check power first before blaming the card |
| Monitoring alarms do not clear | Board fault, sensor input issue, or system mismatch | ✅ High | Compare alarm behavior with the original board and check the input circuit | If the rest of the system is healthy, replacement is likely |
| Status LEDs do not follow the normal sequence | Revision mismatch or internal board failure | ✅ High | Compare LED behavior with the site manual and original unit | Verify revision and replace only if the fault stays with the board |
| System intermittently drops alarms or signals | Loose connector, oxidation, or vibration damage | ✅ Medium | Reseat the board and inspect edge contacts for corrosion | Clean contacts and retest before replacing |
| Nothing changes after swap | Wrong pinout, jumper setting, or wiring error | ✅ High | Photograph the old board, then compare jumpers and harness positions | Mirror the original setup exactly before power-up |
| Adjacent modules work, this board does not | Local board failure or bad seating | ✅ High | Swap only after confirming the backplane and neighboring modules are healthy | If the fault follows the board, replacement is justified |
Contact technical support with photos of the label, connector side, and any diagnostic logs if the fault is still unclear.
Frequently Asked Questions
Q: Is this the exact E306.2A REV.D board?
A: The model string matches E306.2A REV.D, which is the key identifier. Still confirm connector layout, revision marking, and site wiring before you install it.
Q: Is this new, used, or refurbished stock?
A: This is listed as New Surplus. That usually means unused excess inventory, not factory-sealed retail packaging.
Q: Can I swap it without changing any settings?
A: Sometimes, yes, but only if the replacement is truly identical. Take photos of the original jumpers, connectors, and cable routing before removal.
Q: Why is surplus cheaper than OEM new?
A: Because it comes from excess stock instead of current factory production. The price is lower, but you still need to verify condition and compatibility before purchase.
Q: What usually causes this board to fail?
A: In the field, the board often gets blamed first, but power issues, bad connectors, and external input faults are common. Check the system path before condemning the card.
Q: Is there a warranty?
A: Warranty depends on the seller and the stock condition. For legacy industrial boards, a written warranty term is more useful than a vague promise.
Q: What is the main installation risk?
A: The main risk is a revision or wiring mismatch. ❗Do not wire from memory. Match the old board exactly before applying power.
