3. Key Technical Specifications
| Parameter | Value |
| Input Voltage | 24 V DC Nominal (18 – 32 V DC Range) |
| Output Voltages | +5 V DC (Logic), ±12 V or ±15 V DC (Analog) |
| Output Current | Rated for full rack logic load (approx. 2.0 A @ 5V) |
| Efficiency | >85% at full load |
| Protection | Short-circuit, Overvoltage, and Reverse Polarity |
| Isolation | 500 V DC between Input and Output |
| Mounting | Standard Marine Rack / 35mm DIN |
| Operating Temp | -10 to +70 °C |
| Status Indicators | LED for Input OK, LED for Output OK |
4. Product Introduction

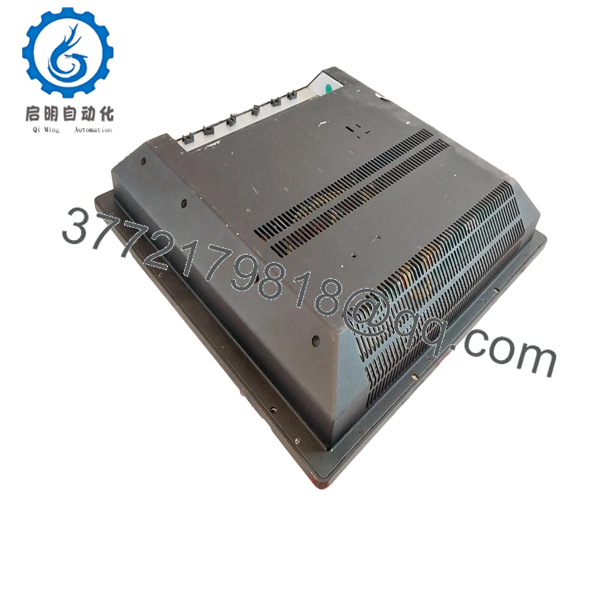

The Stein Sohn P001240-1 is a critical power management module designed for marine data acquisition and alarm systems. Unlike standard industrial power supplies, the P001240-1 is engineered to filter out the electrical “noise” and voltage ripples common in shipboard 24 V DC networks, providing the ultra-stable logic power required for sensitive monitoring processors.
In many older Stein Sohn installations, the P001240-1 is the single point of failure for an entire rack of I/O. Replacing a failing unit with this genuine P001240-1 restores system stability and prevents the “phantom alarms” often caused by degrading capacitors in aged power modules. Its ruggedized construction meets the strict vibration and thermal requirements of DNV and Lloyd’s Register certifications.
- P001240-1
5. Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (Estimated Time: 5 mins)
- ⚠️ Safety First: Disconnect the primary 24 V DC supply at the breaker. Even though it is “low voltage,” a short circuit on a high-amp marine battery bus can cause significant damage.
- Tools Required: PH1 Philips screwdriver, Multimeter (Fluke 87V preferred), and an ESD wrist strap.
- Check: Verify that the replacement part number is exactly P001240-1. The “-1” suffix often indicates specific output rail configurations that are not interchangeable with the base model.
Stage 2: Removing the Old Module
- Verify the “Input Power” LED is completely off.
- Unplug the terminal connectors. Do not pull by the wires; use the plastic connector body.
- Loosen the mounting screws or release the DIN locking tab.
- Slide the module out. Inspect the backplane connector (if applicable) for signs of arcing or heat damage.
Stage 3: Installing the New Module (Estimated Time: 15 mins)
- ESD Prep: Ground yourself to the cabinet frame before handling the new P001240-1.
- Mounting: Seat the module firmly. If it is rack-mounted, ensure the pins align perfectly before applying pressure.
- Terminal Wiring: Reconnect the input and output plugs.
- Self-Checklist: [ ] Input polarity verified, [ ] Connector seated, [ ] No loose wire strands.
Stage 4: Power-On & Testing
- Switch on the 24 V DC supply.
- LED Check: Both the “Input” and “Output” LEDs should be solid green.
- Voltage Verification: Use your multimeter to check the 5 V DC logic rail at the test points (if accessible) or at the first I/O module in the rack.
- ⚠️ Troubleshooting: If the “Output” LED flickers, there may be a short circuit in one of the downstream I/O modules. Pull all I/O modules and re-insert them one by one to isolate the fault.
6. Frequently Asked Questions (FAQ)
Q: My system is completely dead, no LEDs on any module. Is the P001240-1 the culprit?
A: Most likely. In these Stein Sohn racks, this module acts as the “heart.” If it stops outputting the 5 V logic power, the CPU and I/O modules cannot boot. Check your 24 V input first; if power is reaching the P001240-1 but nothing is coming out, the module’s internal DC-DC converter has failed.
Q: Is this module hot-swappable?
A: Absolutely not. Pulling a power module while under load can cause a back-EMF spike that can fry every I/O card in the rack. Always de-energize the circuit before replacement.
Q: This looks like a standard DC converter. Can’t I just use a third-party 24V to 5V supply?
A: I wouldn’t recommend it. The P001240-1 is designed with specific marine-grade filtering and isolation. Off-the-shelf industrial converters often lack the surge protection needed for engine room environments and may not fit the physical form factor or pinout of the Stein Sohn rack.
Q: Is this “New Original” or a repair?
A: This is New Original (New Surplus). We do not sell “re-capped” or repaired P001240-1 units for marine applications because the risk of component fatigue in a critical monitoring system is too high. This is unused factory stock.
Q: Will this fix my “System Communication Error”?
A: It might. If the power supply is failing and providing “dirty” power (high ripple), it can cause the communication processor to reset intermittently. If your comms issues started at the same time as flickering LEDs on the power module, the P001240-1 is the primary suspect.
