Key Technical Specifications
- Model: ACU-01B
- Product ID: 3HNA024871-001
- Manufacturer: ABB
- Catalog description: Air control unit / spray robot air control unit
- Power supply: 24 V DC
- Output signal: 0-10 V or 4-20 mA
- Control range: 0-100%
- Operating temperature: -10 C to +50 C
- Pressure range: 0-10 bar
- Product net weight: 3.66 kg
- Dimensions: 210 mm x 140 mm x 160 mm
- Replacement product ID: 3HNA013719-001
Product Introduction
ABB ACU-01B is a robot air control unit identified by ABB as product ID 3HNA024871-001. It is used in ABB spray robot systems and is delivered with the correct setup for first installation on a robot system.
This part is chosen when the air control function has to match the robot application and setup logic exactly. The main buying risks are robot compatibility, correct setup, and replacing the right ABB spare part number instead of a similar-looking unit.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No air control response | No 24 V DC supply or failed unit | ✅ High | Measure 24 V DC at the input terminals | Verify supply and fuse before replacement |
| Incorrect air output | Wrong setup or control signal mismatch | ✅ High | Check 0-10 V or 4-20 mA command signal | Confirm signal type and configuration |
| Robot alarm on startup | Incorrect first-time setup | ✅ High | Review robot setup and installed spare part data | Reinstall with the correct ABB setup file |
| Pressure unstable | Supply air problem or clogged pneumatic path | ✅ High | Measure inlet pressure and inspect hoses/valves | Check air system before changing the unit |
| Control range limited | Calibration or signal scaling issue | ✅ Medium | Verify 0-100% control range against actual command | Recheck scaling and setup parameters |
| Unit physically fits but does not work | Wrong part number or revision | ✅ High | Compare ACU-01B with 3HNA024871-001 on the label | Use only the exact ABB spare part ID |
If you are stuck, contact technical support with photos, alarm codes, and the robot system type.

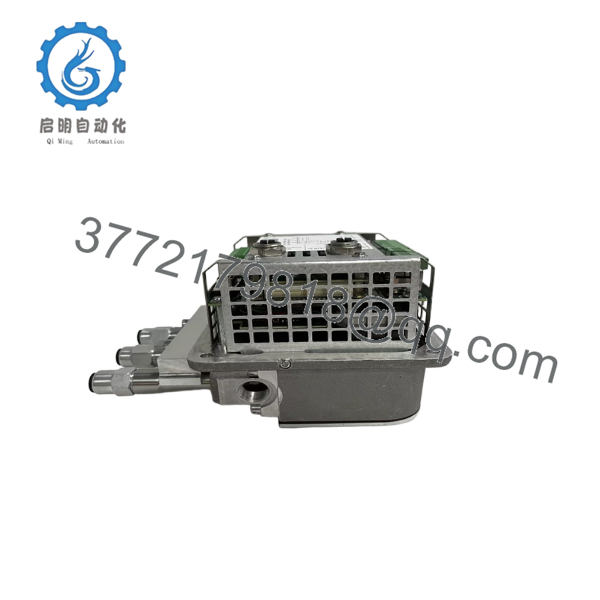

- ACU-01B

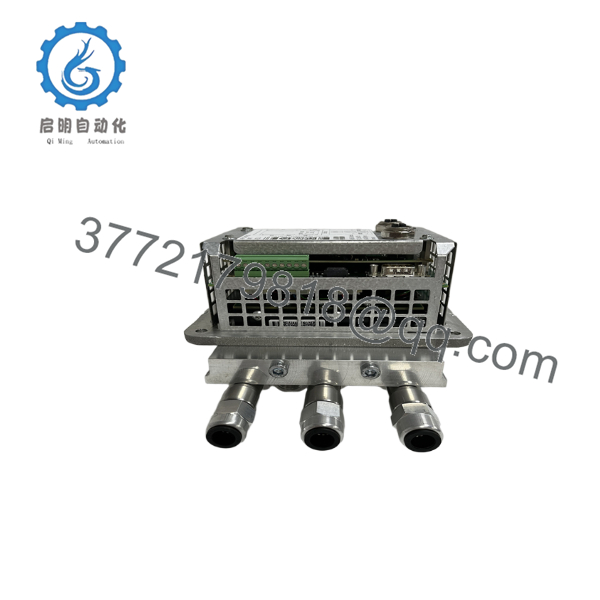

- ACU-01B
Frequently Asked Questions (FAQ)
Q: What is ABB ACU-01B?
A: It is an ABB robot air control unit, identified as 3HNA024871-001.
Q: Is it used in spray robots?
A: Yes. Public listings describe it as a spray robot air control unit
Q: What power does it use?
A: Listings show a 24 V DC supply.
Q: What is the operating range?
A: Public listing data shows -10 C to +50 C, with 0-100% control range and 0-10 bar pressure range.
Q: Does ABB provide a setup for first installation?
A: Yes. ABB’s spare parts page says the spare is delivered with the correct setup that will automatically set up the first time it is installed on a robot system.
Q: Is there a replacement part number?
A: The product data shows replacement product ID 3HNA013719-001.
Q: What should I check before ordering?
A: Confirm the exact robot type, the full part number, the setup requirement, and the pneumatic connection style before you buy.
