Key Technical Specifications
- Manufacturer: Foxboro / Schneider Electric legacy I/A Series.
- Model: FBM217 RH914TR.
- Module Type: Discrete input module.
- Channel Count: 32 input channels.
- Input Type: 2-wire DC voltage source inputs.
- Typical Input Range: 15 to 60 V dc.
- Turn-On Voltage: 15 to 30 V dc.
- Turn-Off Voltage: 0 to 5 V dc.
- Typical Input Current: 2.2 mA at 30 V dc.
- Maximum Pulse Counting Rate: 250 Hz.
- Filtering: 0, 4, 8, 16, or 32 ms configurable.
- Firmware Dependency: Filtering requires firmware 1.25H or later.
- Redundancy: Supports redundant pair installation.
- Environmental Rating: −20 to +60 °C operating.
- Pollution Resistance: ISA S71.04 G3 environment capability.
- Mounting: Compact 200 series backplane, two-screw retention.
- Termination Assemblies: Uses compatible Foxboro TAs such as RH916CA and related assemblies.
Product Introduction
Foxboro FBM217 RH914TR is a 32-channel discrete input module used in Foxboro I/A Series and Foxboro Evo process control systems. It accepts 2-wire DC source inputs and sends status data to the control processor through the system backplane.
This module is selected for high-density input handling, configurable filtering, and redundant deployment options. In field replacements, the main checks are input voltage range, TA compatibility, and firmware revision, because those three items usually decide whether the swap works on the first try.

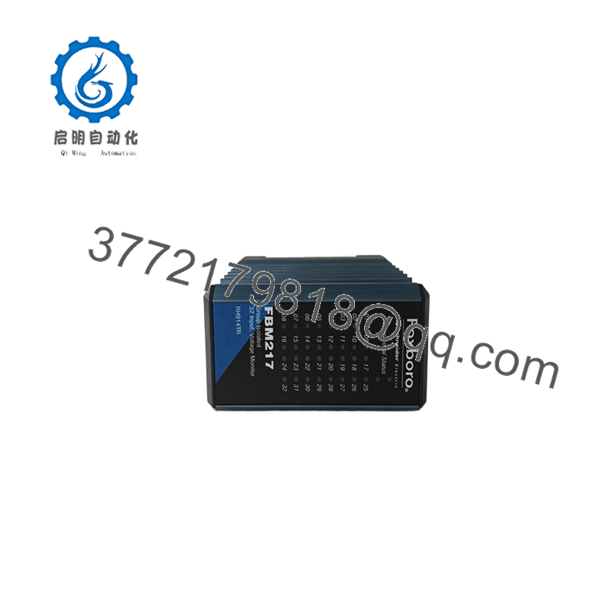

FBM217 RH914TR

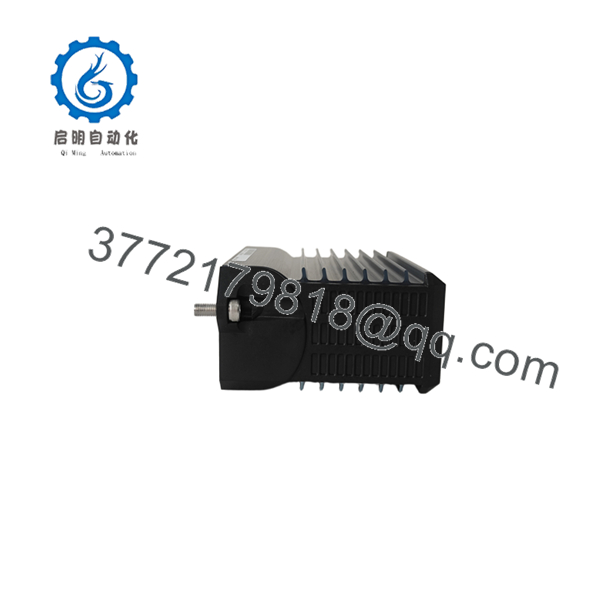

FBM217 RH914TR
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No LEDs on the module | Backplane power loss or bad seat in rack | ❌ Low | Measure rack supply and reseat the module after power-down | Check rack power first, not the module |
| Several inputs stay OFF | Field loop open or wrong TA wiring | ✅ High | Measure 24 V dc at the terminal assembly and check continuity to the field device | Verify wiring and TA pinout before replacing the module |
| Inputs flicker or chatter | Filtering set too low, noisy dry contact | ✅ High | Read the input filter setting in configuration and test the field signal with a meter | Increase debounce/filter time if the process allows it |
| Red fault LED appears after a swap | Firmware mismatch or wrong module type | ✅ High | Compare the installed firmware revision and module part number to the original unit | Match the exact RH914TR version and firmware range |
| One channel fails while others work | Local input channel damage or terminal fault | ✅ Medium | Move the field wire to a known-good channel and observe behavior | If the fault follows the channel, replace the module |
| All channels read ON together | Shorted common or miswired TA | ✅ High | Inspect common wiring and measure for unintended voltage on the shared return | Correct the wiring before suspecting module failure |
If you are stuck, send cabinet photos, the TA label, and the module diagnostic screen to technical support.
Frequently Asked Questions
Q: What is FBM217 RH914TR used for?
A: It is a Foxboro 32-channel discrete input module for process automation systems. It collects DC input signals from field devices and sends them to the controller.
Q: Is RH914TR the module or the terminal assembly?
A: RH914TR is the FBM217 module part number. The module works with compatible Foxboro termination assemblies, so verify the TA model before ordering.
Q: Can I replace it with a different FBM217 revision?
A: Sometimes, but do not assume compatibility. Foxboro systems can be picky about firmware and termination hardware, so match the original part number and revision as closely as possible.
Q: Does it support redundancy?
A: Yes, the FBM217 platform supports redundant pair installation when the system is configured for it. That said, redundancy only works if the rest of the rack and software configuration are also set up correctly.
Q: What is the biggest replacement mistake?
A: The most common mistake is assuming the wiring is the same and skipping documentation. Take photos of the original TA and note the firmware version before pulling the old module. Seriously, that saves a lot of grief.
Q: Why is this listed as New Surplus?
A: Because this type of industrial hardware is often sold from unused OEM stock or excess inventory. It is not factory-fresh production, so the listing should say that plainly.
Q: Is it hot-swappable?
A: In many Foxboro systems, module replacement can be done under specific maintenance procedures, but you should not improvise. Check the site rules, isolate if required, and verify the exact rack behavior before touching it.
