Key Technical Specifications
- Manufacturer: GE
- Model: DS215SLCCG1AZZ01B
- Product type: LAN communication card
- Series: Mark V turbine control system
- Operating system: QNX
- Power supply: 24 V DC
- Mounting: DIN-rail mounting
- Technology: Surface-mount board
- Operating temperature: 40 to 70 C
- Application: Communications with drive or exciter circuits
- Condition: New Original / New Surplus
- Availability: Limited stock, subject to prior sale
Product Introduction

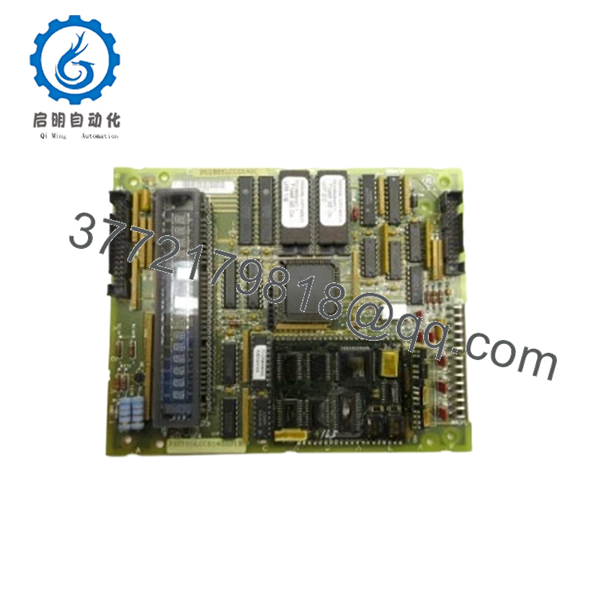

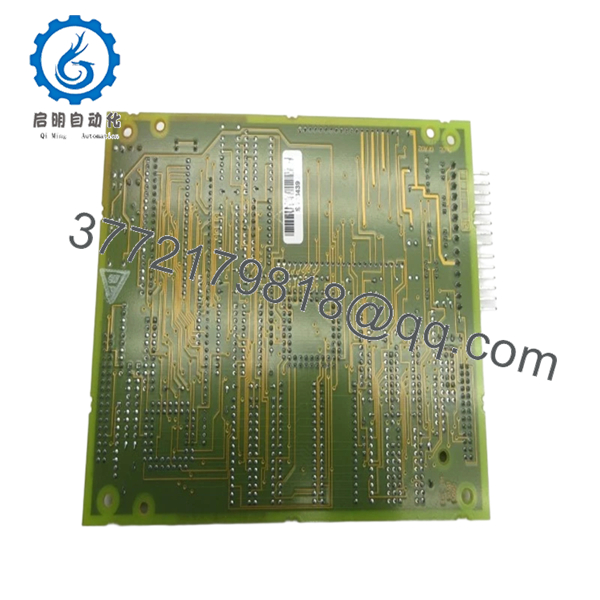

GE DS215SLCCG1AZZ01B is a Mark V LAN communication card used in turbine control and related industrial control systems. It handles data exchange with the drive or exciter side and runs on QNX, with 24 V DC power and DIN-rail mounting.
This part is usually selected as a direct replacement when the installed card matches the same Mark V architecture. The main risk is compatibility, so verify firmware, rack fit, and field wiring before ordering.
- DS215SLCCG1AZZ01B
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No link or no comms with the master | Failed card, bad cable, or mismatched setup | ✅ High | Check link LEDs, verify 24 V DC at the card, and test continuity on the comm cable | Replace only after confirming power and cabling |
| Intermittent communication timeout | Firmware mismatch, noise, or bad connector seating | ✅ High | Compare firmware notes, reseat the card, and inspect shield grounding | Match firmware and recheck installation |
| Card does not boot normally | Internal fault or missing supply | ✅ High | Measure input voltage at terminals, check status LEDs, and inspect the rack backplane | Replace if power is correct and boot still fails |
| Drive or exciter data is missing | Local comm path fault or remote device issue | ⚠️ Medium | Verify the upstream device, then test the card in a known-good rack | Do not blame the card until the remote side is checked |
| Repeated reset or unstable operation | Thermal stress, bad backplane contact, or degraded components | ✅ Medium | Run the unit in a test rack and watch for resets over time | Replace if the fault repeats under known-good conditions |
| Physical damage, corrosion, or rework marks | Shipping damage or prior failure | ✅ High | Inspect the board edges, connectors, and component surfaces under good light | Reject the unit and request photos if damage is visible |
If you are stuck, contact technical support with photos of the board, the rack, and any diagnostic logs.
Frequently Asked Questions
Q: Is DS215SLCCG1AZZ01B a direct replacement?
A: Usually yes, if the existing Mark V rack, firmware range, and wiring match. I would still verify the exact suffix and board revision before you install it.
Q: Can I hot-swap this card?
A: Do not assume so. On older GE control hardware, pulling a comm card live can damage the backplane or corrupt communications, so power down first unless the OEM manual explicitly allows hot-swap.
Q: Why is this part cheaper than a factory new unit?
A: Most units in this market are New Surplus or tested pulls, not fresh factory production. That lowers price, but you should still ask for test status, traceability, and a clear condition statement.
Q: What should I check before ordering?
A: Confirm the exact model, suffix, rack type, firmware expectations, and connector orientation. Also check whether your site uses the same communication path and power requirement.
Q: Does this card retain programming or configuration?
A: It may carry board-level settings, but do not count on it preserving site-specific configuration after a swap. Back up the existing setup before removal and photograph any jumpers or switch positions.
Q: What warranty should I expect?
A: That depends on the seller and the condition grade. For surplus industrial parts, warranty is often limited, so ask for the exact term in writing before purchase.
Q: What makes this item risky to install wrong?
A: The usual traps are firmware mismatch, wrong rack placement, and bad grounding. I have seen a simple comm swap turn into two days of timeout faults because someone did not copy the original setup exactly.
