Sperry CompassNet 074907-0001-00 Data Distribution Unit

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

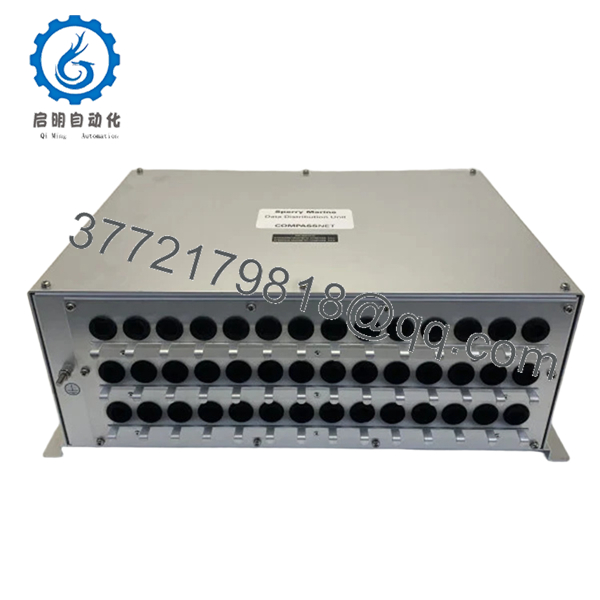

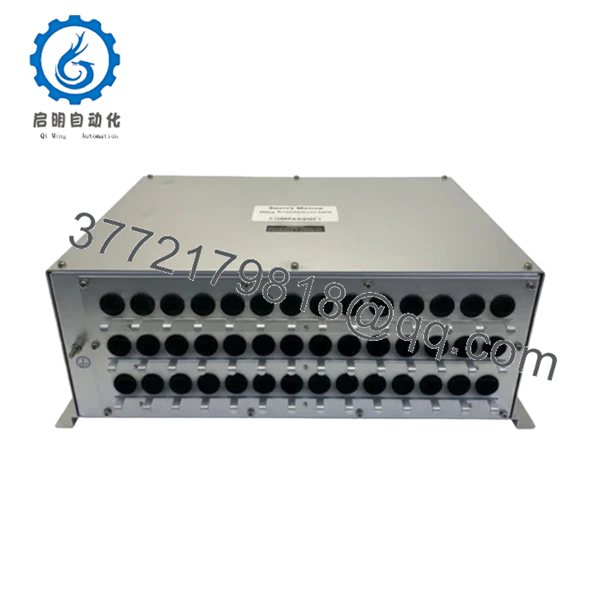

The Sperry CompassNet 074907-0001-00 is a Data Distribution Unit (DDU) that serves as the central hub for gyrocompass heading data within marine navigation systems. It distributes synchronized heading signals to critical onboard systems such as radar, autopilot, ECDIS, and voyage data recorders, ensuring consistent navigation data across the vessel.

From a supply-chain standpoint, this is a mission-critical, compliance-driven component with increasing lead time variability due to lifecycle maturity. The CompassNet architecture relies on the DDU as a core node, making stock-out risk unacceptable. Procuring New Surplus units protects against hidden failure risks associated with refurbished electronics and reduces Total Cost of Ownership (TCO). A minimum buffer stock of 1–2 units per vessel or fleet pool is strongly recommended.

074907-0001-00

074907-0001-00

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Apply lock-out/tag-out procedures on bridge electronics supply.
• Use ESD grounding protection.
• Record all interface connections (NMEA, synchro lines).
• Document system topology (CompassNet nodes and gyro sources).
• Verify 24 V DC supply stability with ≥20% capacity margin.

Stage 2: Removal

• Power down the CompassNet system completely.
• Disconnect communication and signal cables with labeling.
• Remove mounting hardware and extract evenly to avoid connector stress.

Stage 3: Installation (Clone & Seat)

• Install the replacement DDU in the same rack or panel location.
• Reconnect all interfaces exactly as documented.
• Verify grounding and shielding continuity for signal integrity.

Stage 4: Power-On & Testing

• Power up and monitor system initialization.
• Confirm heading data transmission to all connected systems.
• Validate outputs (radar heading, autopilot input, ECDIS alignment).
• Perform redundancy test if dual gyro configuration is present.

6. Firmware/Software Versions & Upgrade Notes

• Recommended Firmware: Match CompassNet system software (commonly NAVITWIN V platform, V2.x range).
• Compatibility Notes:
  • DDU P/N 074907-0001-xxx must align with system controller (NAVITWIN V).
  • Mixing with newer DDU variants (e.g., 074907-0002 series) may require system revalidation.
• Critical Warning:
  • Firmware mismatch can cause heading data dropouts or synchronization faults.
  • Avoid upgrades during replacement—maintain identical system baseline.
• Best Practice: Extract system configuration and firmware revision before swap.

7. Frequently Asked Questions (FAQ)

Q1: Is this unit truly new or just surplus stock?
This product is a Brand New Surplus unit. It is not used, not removed from active vessels, and not refurbished. It retains full OEM integrity with zero connector wear and no repair history.

Q2: Why not use refurbished CompassNet DDUs?
Refurbished units often contain aging internal components. In navigation systems, even a brief failure can disrupt heading data across radar and autopilot systems, creating operational risk and potential compliance violations.

Q3: Is 074907-0001-00 still in production?
No. This is a legacy CompassNet component. Availability is limited and unpredictable, making last-time-buy planning essential.

Q4: What stocking level do you recommend?

• Minimum: 1 unit per vessel (insurance policy)
• Critical operations: 2 units or centralized fleet buffer stock
• Use cross-site sharing to reduce capital lock-up

Q5: Can this unit be hot-swapped?
No. Full system shutdown is required. Hot-swapping risks data corruption and network instability.

Q6: What happens if this unit fails onboard?
Loss of heading data distribution can affect multiple systems simultaneously (radar, autopilot, ECDIS). This can trigger alarms, degrade navigation capability, and potentially force operational restrictions.

Q7: What warranty is provided?
12months warranty with full QC traceability, including functional testing, electrical verification, and documented inspection sign-off.
