Key Technical Specifications
- Model: CAMOS 6809 A A100.1.
- Brand: STEIN SOHN.
- Series: CAMOS 6809.
- Product type: Communication unit.
- Type designation: A100.1.
- Condition: Used.
- Application: Industrial communication / interface hardware.
- Replacement note: Match the exact model string before ordering.
- Compatibility note: Verify system revision and connector layout before installation.
- Stock note: Used stock is commonly the only available source for this part.
Product Introduction
STEIN SOHN CAMOS 6809 A A100.1 is a communication unit for the CAMOS 6809 system. It is typically sourced as a replacement part when the original interface module fails or the control system needs the exact same hardware.
This part is bought for fit and function, not generic compatibility. Confirm the system revision, connector arrangement, and site wiring before installation, because a near-match can still fail in the field.

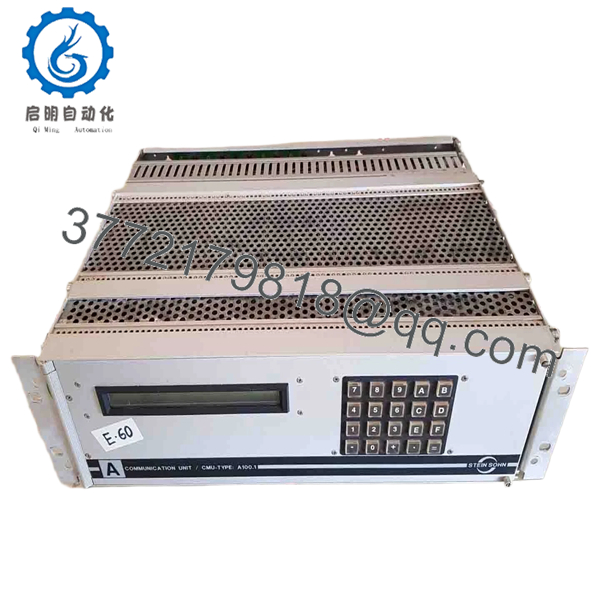

- CAMOS 6809 A A100.1

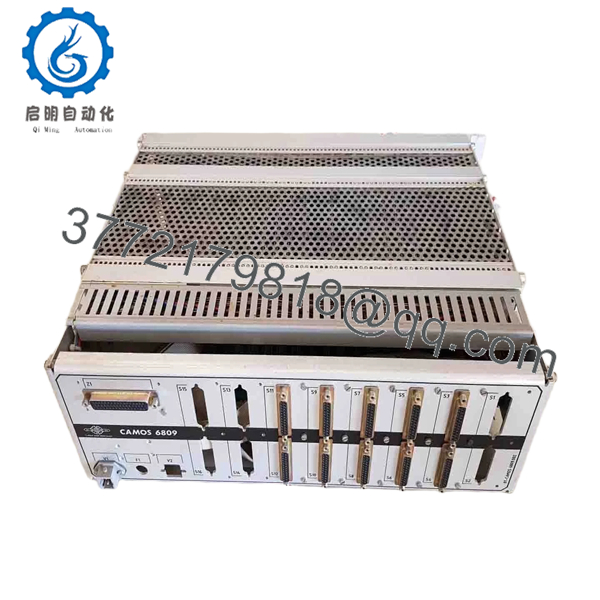

- CAMOS 6809 A A100.1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No communication with the host system | Interface module failure, cabling issue, or wrong revision | ✅ High | Check link LEDs and verify continuity on the comm cable | Replace only after confirming cable and host settings |
| Unit powers up but does not pass data | Configuration mismatch or protocol mismatch | ✅ High | Compare the old module label, DIP settings, and protocol setup | Match the original configuration before swapping again |
| Intermittent data transfer | Loose connector, grounding issue, or damaged cable | ✅ Medium | Reseat connectors and inspect shield terminations | Check wiring first; the module may be fine |
| System reports timeout or handshake failure | Wrong baud rate, address, or incompatible unit type | ✅ High | Read site settings and compare against the replacement unit | Verify comm parameters before power-up |
| All other rack devices work, only this channel fails | Local module fault or channel-specific wiring issue | ✅ High | Swap the cable to a known-good port if available | If the fault stays with the module, replacement is likely |
| Dead unit after installation | ESD damage, incorrect seating, or supply issue | ✅ Medium | Measure supply voltage at the rack and inspect seating | Reinstall carefully with ESD control and proper alignment |
Contact technical support with photos of the label, connector side, and any diagnostic logs if the fault is still unclear.
Frequently Asked Questions
Q: Is this the exact CAMOS 6809 A A100.1 unit?
A: The model string matches CAMOS 6809 A A100.1, which is the key identifier. Still confirm revision, connector layout, and site wiring before installation.
Q: Is this new or used stock?
A: This is listed as Used. That usually means serviceable industrial stock, not factory-sealed inventory.
Q: Can I replace it without changing any settings?
A: Sometimes yes, but only if the replacement is an exact match. Take photos of the original DIP switches, cable positions, and label before removing anything.
Q: What is the main risk with this part?
A: The biggest risk is a mismatch in protocol, wiring, or revision. ❗Do not wire from memory. Verify the original configuration and compare it to the replacement unit before power-up.
Q: Why is used stock cheaper than OEM new?
A: Because it comes from surplus or recovered inventory instead of current factory production. That lowers cost, but you should verify condition and compatibility before buying.
Q: Does this part usually fail on its own?
A: Communication units often get blamed when the real issue is cabling, settings, or the host controller. Check the external system first, then condemn the module only if the fault follows it.
Q: Is there a warranty?
A: Warranty depends on the seller and stock condition. For older industrial communication hardware, a written warranty term matters more than a generic promise.
