3. Key Technical Specifications
The Woodward 8237-1597 ProTech-GII is a dedicated, IEC 61508 SIL-3 capable emergency shutdown system for steam, gas, and hydro turbines. It utilizes three independent microprocessors to process speed signals simultaneously.
| Parameter | Value |
|---|---|
| Part Number | 8237-1597 |
| Manufacturer | Woodward, Inc. |
| Product Line | ProTech-GII Safety Systems |
| Voting Logic | 2-out-of-3 (2oo3) Triple Modular Redundant (TMR) |
| Response Time | < 12 milliseconds (from overspeed detection to trip relay actuation) |
| Speed Inputs | 3 Independent MPU or Proximity Sensor Channels (1 to 50,000 Hz) |
| Relay Outputs | Individual and voted trip output relays (rated for high-voltage DC solenoids) |
| Enclosure Type | Bulkhead mount, NEMA 4X / IP56 weather-tight metal housing |
| Operating Temperature | -20°C to +60°C |
4. Product Introduction & Supply Chain Strategy
The Woodward 8237-1597 ProTech-GII system safeguards large rotating machinery against catastrophic overspeed conditions. Operating independently from the primary governing system, the ProTech-GII constantly evaluates shaft rotation speed across three isolated modules (Module A, B, and C). If at least two channels detect speed exceeding the configured trip setpoint, the internal voted output relays trip the emergency stop valve (ESV) solenoids immediately.
Maintaining an uninstalled Woodward 8237-1597 unit in New Surplus inventory is essential for power generation and chemical processing plants. Overspeed trip system failures halt plant operations entirely under strict safety regulations. Securing a unused, factory-sealed unit ensures uncompromised relay contact resistance, intact internal optical isolation, and immediate drop-in replacement without expensive panel modifications.
5. Installation & Configuration Guide
Critical Turbine Safety & High Voltage Warning
Improper installation or configuration of overspeed protection devices can cause severe machinery destruction or loss of life. Always ensure independent mechanical trip devices are functional and follow strict lockout/tagout procedures before working on solenoid wiring.

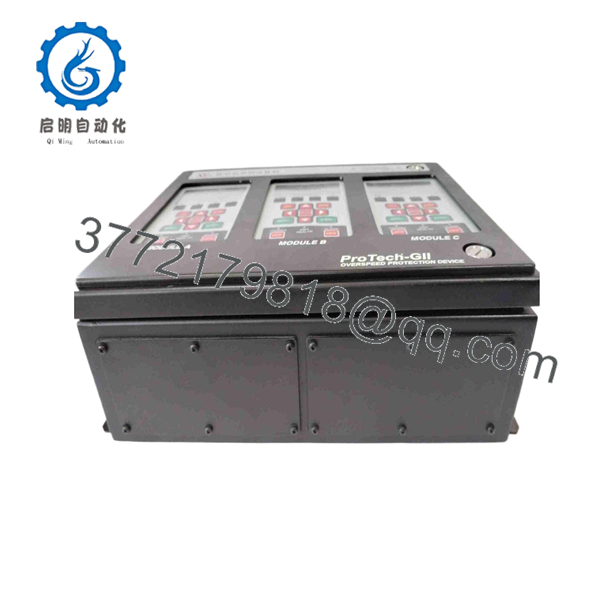

8237-1597

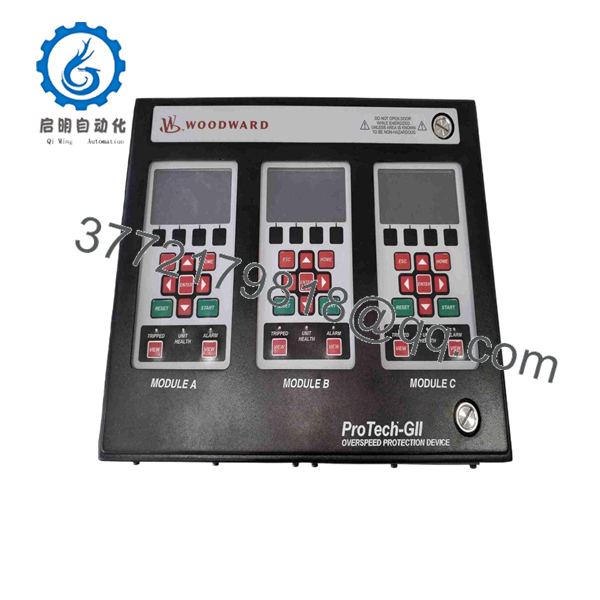

8237-1597
1
System Safety Lockout & De-energization
Prerequisite
1.System Safety Lockout & De-energization:Prerequisite.
Lock out main turbine steam/fuel shut-off valves. Isolate high-voltage power feeds to the existing emergency shutdown panel.
2
Bulkhead Panel Installation
Mechanical Mounting
2.Bulkhead Panel Installation:Mechanical Mounting.
Secure the 8237-1597 enclosure firmly to a low-vibration vertical bulkhead surface using heavy-duty mounting hardware. Ensure gaskets seat properly to maintain NEMA 4X protection.
3
MPU & Trip Solenoid Termination
Signal Wiring
3.MPU & Trip Solenoid Termination:Signal Wiring.
Land shielded speed pickup wires from MPU A, B, and C to their respective isolated module terminal blocks. Terminate trip relay outputs to the main trip solenoid circuit.
4
Power-On & On-Line Test Simulation
Commissioning
4.Power-On & On-Line Test Simulation:Commissioning.
Apply control power and verify system health via front displays. Execute the built-in, non-disruptive routine routine routine test for each module channel to confirm 2oo3 voting trip logic prior to turbine start.
6. Firmware/Software Versions & Upgrade Notes
- On-Line Testing: Supports individual channel testing while the prime mover is operating without triggering a false trip.
- Configuration Protection: Password-protected front keypads prevent unauthorized alterations to critical overspeed setpoints.
- Event Logging: Built-in memory logs trip events, peak speeds, and diagnostic alarms accessible via RS-485 Modbus communications.
7. Frequently Asked Questions (FAQ)
Q: Is this Woodward 8237-1597 ProTech-GII unit genuinely new? A: Yes, this item is a Brand New Surplus unit. It has never been installed on a control panel or connected to active trip solenoids, and is preserved in static-shielding protective OEM packaging.
Q: What does 2-out-of-3 (2oo3) voting mean in the ProTech-GII? A: It means two of the three independent internal sensing modules must agree that an overspeed condition exists before the system issues an overall turbine trip, practically eliminating false trips caused by single-sensor failures.
Q: Can the 8237-1597 replace older ProTech 2030 or ProTech-Protection systems? A: Yes, the ProTech-GII series was designed to upgrade older ProTech overspeed protection units, though terminal mapping should be reviewed prior to rewiring.
Q: What warranty accompanies this unit? A: Every Woodward 8237-1597 unit includes a full 1-year replacement warranty and a certified quality verification report prior to shipment.
