ABB 216VC62A HESG324442R13E Digital Protection CPU Module

Description

3. Key Technical Specifications

The 216VC62A serves as the central processor within ABB’s REG216 generator protection and REC216 substation control systems. It continuously evaluates measured values, executes configured protection functions, and exchanges signals with associated input/output units over the internal system bus.

4. Product Introduction

The ABB 216VC62A (HESG324442R13E / HESG324442R112) is a processor unit used in the REG216 digital generator protection system and the REC216 digital control platform. It executes all configured protection algorithms, logic functions, trip commands, event recording, and communication between electronic rack modules.

Because the REG216/REC216 platform is modular, the processor unit can be configured for applications ranging from generator and transformer protection to feeder protection and substation automation. The installed software determines which protection functions are active, making hardware verification and configuration backup essential before replacement.

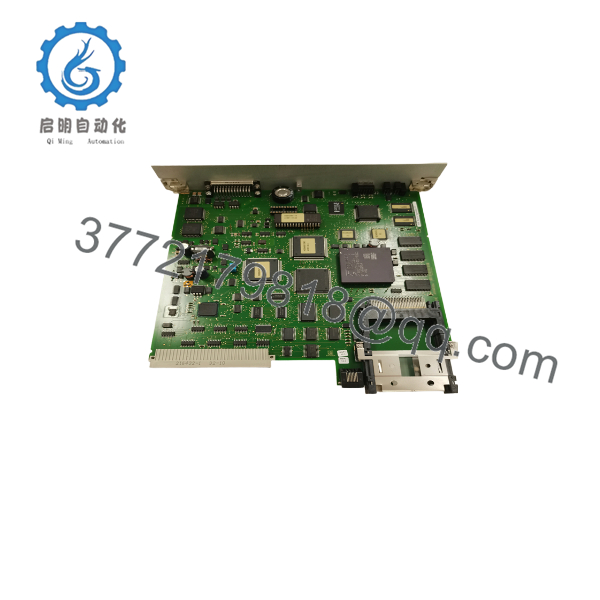

216VC62a HESG324442R13E HESG324442R112F

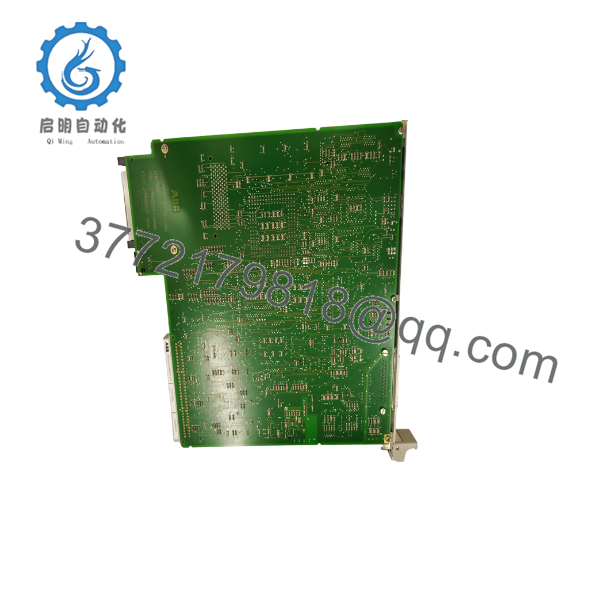

216VC62a HESG324442R13E HESG324442R112F

5. Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (10–15 minutes)

⚠️ Safety First

1. Notify operations of the planned outage.
2. Isolate auxiliary DC power.
3. Apply Lock-Out/Tag-Out procedures.
4. Verify that all redundant power supplies are switched off.
5. Wait for complete system shutdown before removing electronic modules.

Required Tools

• ESD wrist strap
• Phillips screwdriver
• Digital multimeter
• Camera for documentation
• ABB REG216 engineering documentation

Backup Tasks

• Save protection settings.
• Export disturbance and event records.
• Record firmware revision.
• Photograph rack layout and connectors.
• Document all protection logic assignments.

Stage 2 – Removing the Existing Processor Unit

1. Remove the rack cover.
2. Identify the 216VC62A processor board.
3. Label communication and ribbon cables.
4. Release retaining hardware.
5. Withdraw the board evenly using the extraction handles.

⚠️ Avoid touching IC components or edge connectors. Always use ESD protection.

Inspect:

• Rack connectors
• Backplane pins
• Power supply condition
• Connector oxidation
• Cooling airflow path

Stage 3 – Installing the New Processor Unit

1. Verify the replacement part number (HESG324442R13E or the correct compatible revision).
2. Check firmware compatibility with the existing REG216/REC216 system.
3. Insert the board fully into the guide rails.
4. Confirm complete backplane engagement.
5. Reconnect all cables.
6. Secure the retaining hardware.

Installation Checklist

• ☑ Correct hardware revision
• ☑ Firmware compatibility confirmed
• ☑ Connectors fully seated
• ☑ Rack locking mechanism engaged
• ☑ Auxiliary power verified

Stage 4 – Power-Up & Functional Testing

1. Restore auxiliary DC power.
2. Observe startup LEDs.
3. Verify processor initialization.
4. Confirm communication with I/O units.
5. Check protection function status.
6. Verify trip circuits.
7. Perform secondary injection testing before returning the relay to service.

⚠️ Troubleshooting

Processor Does Not Boot

Check:

• Auxiliary DC supply
• Backplane connection
• Board seating
• Power supply module

Protection Functions Not Available

Possible causes include:

• Incorrect firmware
• Missing configuration database
• Hardware revision mismatch
• Configuration download failure

6. Frequently Asked Questions (FAQ)

Q1. What is the function of the ABB 216VC62A?

The 216VC62A is the main processor unit for ABB’s REG216 and REC216 systems. It processes digitized measurements, executes protection algorithms, generates trip commands, and communicates with input/output units over the internal B448C bus.

Q2. What is the difference between HESG324442R13E and HESG324442R112?

These are hardware or revision identifiers for the 216VC62A processor unit. Different suffixes (such as R13E, R112, or R112/F) typically represent manufacturing or revision updates. Before replacement, verify compatibility with the installed REG216/REC216 firmware and engineering documentation.

Q3. Which systems use this processor unit?

The 216VC62A is designed for ABB’s REG216 digital generator protection system and REC216 digital control platform. These systems are widely used for generator, transformer, motor, feeder, and substation protection in medium- and high-voltage power installations.

Q4. Can I replace the processor unit without reconfiguring the relay?

Not always.

If the replacement board has the same hardware revision and compatible firmware, the existing configuration may be restored. However, always back up protection settings and verify firmware compatibility before commissioning.

Q5. Can this board be hot-swapped?

No.

The 216VC62A is a critical processor module within the protection rack. ABB documentation requires the auxiliary power supply to be switched off before installing or removing electronic units to avoid damage and prevent invalid protection operation.

Q6. What should I verify before ordering?

Confirm the following:

• Model: 216VC62A
• Part number: HESG324442R13E or HESG324442R112/F
• System type: REG216 or REC216
• Hardware revision
• Firmware version
• Protection configuration
• Rack compatibility

These checks help ensure a successful replacement while minimizing commissioning time and avoiding protection system incompatibilities.
