3. Key Technical Specifications
| Parameter | Value |
| Model Designation | ZCU-12 Control Unit (Packed Spare) |
| Part Number (MPN) | 3AXD50000183012 (replaces older 3AXD50000005751) |
| Compatible Drives | ACS880 (standard single drives/modules), ACH580, and ACQ580 series |
| Required Accessories | ZMU-02 or ZMU-03 Memory Unit (holding the drive parameter configurations and firmware) |
| Firmware Compatibility | Primary Control Program AINLX version 1.63 and forward |
| ISU Memory Firmware | Must be version v3.41.0.0 or later if used in ACS880-14/34, ACH580-34, or ACQ580-34 |
| Input Power Source | 24 VDC (\pm20%) internal feed or external auxiliary supply |
| Integrated Communication | Modbus RTU / Built-in drive-to-drive (D2D) link |
| Expansion Capabilities | 3 slots for optional fieldbus adapters, I/O extensions, and feedback interfaces |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) depending on cabinet enclosure |
| Physical Dimensions | 272 mm (H) \times 138 mm (D) \times 70 mm (W) |
| Net Weight | 0.55 kg (1.2 lbs) |
4. Product Introduction & Supply Chain Strategy

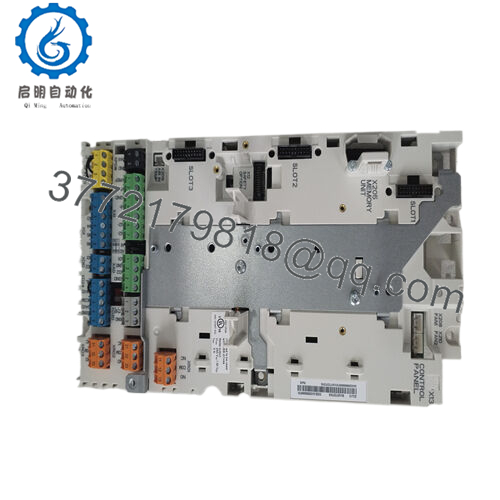

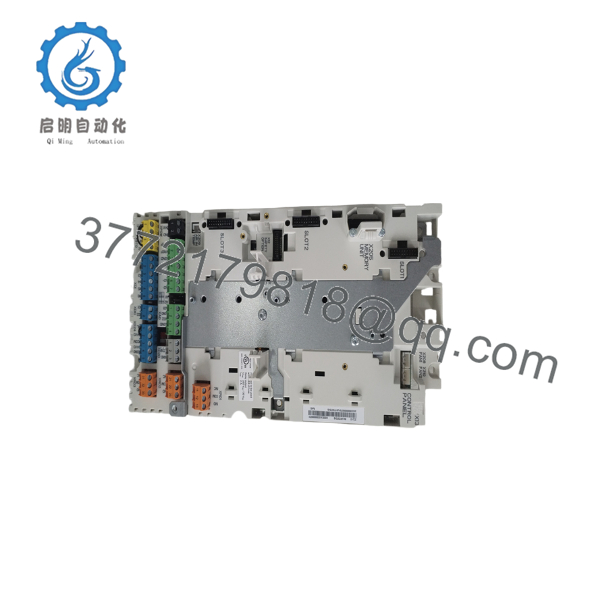

The ABB 3AXD50000183012 is the dedicated ZCU-12 control unit spare package for ABB’s premium ACS880 industrial drive family, as well as select ACH580 (HVAC) and ACQ580 (water/wastewater) platforms. Acting as the brains of the drive, the ZCU-12 processes high-speed encoder feedback, runs direct torque control (DTC) calculations, and monitors internal power electronics.
For maintenance engineers, the ZCU-12 control unit is a high-impact spare. Because all drive parameters, communication channels, and safety configurations run directly through this card, a component-level failure on a running board will shut down the entire motor system immediately.
Sourcing this module as a certified New Surplus component is highly recommended over used or third-party repaired options. Drive control units are sensitive to electrostatic discharge (ESD) and trace degradation. Storing a factory-sealed, zero-hour surplus board ensures your facility can recover from drive failures instantly with clean, unworn board relays and capacitors.
- 3AXD50000183012
- 3AXD50000183012
5. Installation & Technical Requirements
Stage 1: Safety & Power Isolation
Ensure the drive’s main AC supply is completely disconnected and locked out (LOTO). Wait at least 15 to 20 minutes for the internal DC bus capacitors to discharge fully. Use a digital multimeter to confirm that the voltage between the DC+ and DC- terminals has dropped to safe levels (under 50 VDC) before touching any internal card. Wear an ESD wrist strap connected to the metal drive frame.
Stage 2: Memory Unit (ZMU) Transfer
The ZCU-12 does not contain the drive’s firmware or user parameters in its base state; it relies entirely on an external memory unit.
- Remove the ZMU-02 or ZMU-03 memory cartridge from the top of the failed board.
- Insert the cartridge securely into the corresponding slot on the new ZCU-12.
Stage 3: Mechanical Mounting & Wiring
- Disconnect all terminal blocks, fiber optic links, and external option modules (such as FEN-xx feedback or F-series fieldbus adapters) from the failed board.
- Release the plastic retaining tabs or mounting screws securing the ZCU-12 board to the drive chassis, and lift it clear.
- Install the replacement board onto the mounting standoffs.
- Re-land all wiring harnesses and plug the option modules back into their dedicated slots (Slots 1, 2, and 3).
Stage 4: Commissioning
Apply 24 VDC auxiliary control power to the drive. The drive’s control panel will boot, reading the parameter maps directly from the ZMU memory unit. Run a full diagnostic sweep to ensure the drive recognizes all associated I/O extensions, optical channels, and communication nodes.
6. Frequently Asked Questions (FAQ)
Does the 3AXD50000183012 package include the ZMU memory unit?
No. The 3AXD50000183012 package is the ZCU-12 control board itself. The ZMU memory unit (which stores the drive’s parameters and firmware) must be ordered separately or transferred directly from the failed control unit being replaced.
Why does the documentation mention removing the battery for certain drive variants?
When the ZCU-12 is installed in specific drives like the ACS880-14/34, ACH580-34, or ACQ580-34, the onboard lithium battery is not required for operation. To prevent shipping delays associated with UN 3181/3090/3091 lithium-ion battery regulations, it is recommended to physically remove the battery before shipping or installing the board in those specific setups.
What is the difference between ZCU-11 and ZCU-12 control units?
The ZCU-12 is a direct hardware upgrade to older control units (like the ZCU-11 or older ZCU-12 revisions), offering enhanced processing speeds, larger internal memory registers, and upgraded noise-immunity profiles to prevent signal interference in high-EMI environments.
What warranty terms apply to this legacy drive component?
Every New Surplus ABB 3AXD50000183012 control unit is backed by our comprehensive 1-year operational warranty from your date of purchase. If a component defect occurs during this window, we handle replacement or repair immediately, shielding your operating budget from the limited 30-day structural warranties typical of refurbished alternatives.
