ABB 3BHB013088R0001 IGCT Power Semiconductor Module

Description

3. Key Technical Specifications

ABB officially states that the newer 3BHE023784R0001 IGCT module is fully compatible with 3BHB013088R0001 and may be used as a direct replacement without functional constraints. The newer device includes an additional fiber-optic status output that is not utilized in ACS6000 drive applications.

4. Product Introduction

The ABB 3BHB013088R0001 is a high-power IGCT module designed for medium-voltage industrial drives and power conversion equipment. It serves as the primary switching device in high-power converter topologies where high current capability, low conduction losses, and controlled switching are essential.

This module is commonly installed in ABB medium-voltage drive platforms operating in mining, metals, marine propulsion, cement, and utility applications. Before replacing the module, verify the converter hardware revision, cooling assembly, gate drive compatibility, and ABB spare-part documentation for the specific drive model.

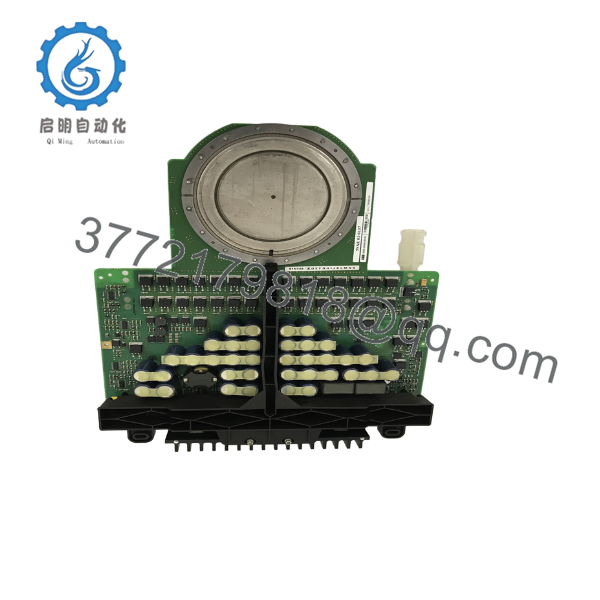

3BHB013088R0001

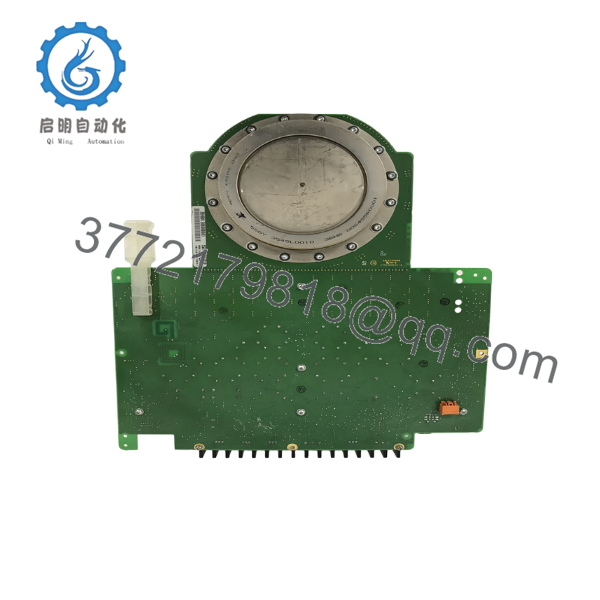

3BHB013088R0001

5. Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (30 Minutes)

⚠️ Safety First

1. Notify operations and schedule converter downtime.
2. Open the incoming MV breaker.
3. Apply Lockout/Tagout procedures.
4. Verify complete DC-link discharge.
5. Measure residual voltage before touching the power stack.

Tools Required

• Grounded ESD wrist strap
• Calibrated torque wrench
• Fluke 115 digital multimeter
• Insulation resistance tester
• Fiber-optic inspection tool (if applicable)
• Camera for documenting installation

Data Backup

Before removal:

• Record converter firmware revision.
• Save converter parameters.
• Photograph the cooling assembly.
• Record gate-driver cable locations.
• Document clamping hardware orientation.

Stage 2 – Removing the Existing Module (25 Minutes)

1. Remove converter access panels.
2. Disconnect gate-drive connections.
3. Disconnect fiber-optic cables if installed.
4. Release clamping hardware using the ABB tightening sequence.
5. Remove the IGCT carefully to prevent mechanical stress.

Inspect:

• Heat sink surfaces
• Cooling plates
• Gate-drive connectors
• Clamping hardware
• Busbar insulation

⚠️ Do not reuse damaged thermal interface materials or distorted clamping hardware.

Stage 3 – Installing the Replacement Module (30 Minutes)

1. Wear an ESD wrist strap.
2. Verify the replacement part number.
3. Confirm cooling surface cleanliness.
4. Install the IGCT using the ABB tightening sequence.
5. Apply the specified clamping force.
6. Reconnect gate-drive and fiber-optic cables.
7. Verify insulation clearances.

Installation Checklist

• Part number verified
• Cooling surfaces cleaned
• Torque sequence completed
• Gate drive connected
• Fiber optics inspected
• Busbars secured

Stage 4 – Power-On & Testing (45 Minutes)

Pre-Power Inspection

• Verify insulation resistance.
• Check cooling circuit operation.
• Confirm gate-drive supply voltage.
• Inspect fiber-optic communication.

Startup Procedure

1. Energize auxiliary supplies.
2. Verify gate-driver diagnostics.
3. Confirm converter self-test passes.
4. Energize the DC bus.
5. Perform low-load functional testing.
6. Monitor device temperature.
7. Increase load gradually while monitoring switching performance.

⚠️ Troubleshooting Note

If the converter reports IGCT gate faults immediately after startup, inspect the gate-drive connections, clamping force, and cooling assembly before replacing the semiconductor. In practice, improper installation causes many failures attributed to the IGCT itself.

6. Frequently Asked Questions (FAQ)

Q1. What is the ABB 3BHB013088R0001 used for?

It is a high-power IGCT module used in ABB medium-voltage drives and industrial power converters where megawatt-level switching capability is required.

Q2. Is this module still manufactured?

No.

ABB identifies 3BHB013088R0001 as a legacy part and recommends 3BHE023784R0001 as its replacement.

Q3. Can I directly replace it with 3BHE023784R0001?

Yes.

ABB documentation states that 3BHE023784R0001 is fully compatible and can replace 3BHB013088R0001 without operational restrictions. The newer module includes a fiber-optic status output that is not used in ACS6000 applications.

Q4. Can this module be replaced in the field?

Yes, but only by personnel trained on medium-voltage converter maintenance. The procedure involves high stored energy, precision mechanical clamping, and careful handling of power semiconductor assemblies.

Q5. Why is correct clamping torque so important?

I’ve seen converters fail shortly after startup because the replacement module was installed with uneven clamping pressure. Too little force creates thermal hotspots; too much can damage the semiconductor package. Always follow the ABB torque specification for the converter.

Q6. Why is surplus inventory available?

Many modules originate from unused project inventory, strategic spare-part stock, or modernization projects. Before purchase, request serial-number verification, inspection records, functional test reports, and packaging documentation.

Q7. What documentation should accompany shipment?

For critical medium-voltage drive applications, request:

• Part number verification
• Hardware revision confirmation
• Visual inspection report
• Insulation verification
• Packaging inspection
• ESD protection confirmation
• QC inspection report
• Replacement compatibility statement for 3BHE023784R0001 if supplied as the substitute part.
