3. Key Technical Specifications
| Parameter | Value |
| ABB Part Number | 3BHB040969R0001 |
| Model Designation | TPC-1582H (TPC1582H43A1401E-T) |
| Display Type & Size | 15″ XGA TFT LED LCD Display |
| Native Resolution | 1024 \times 768 pixels |
| Touchscreen Type | Highly durable 5-wire analog resistive touch system |
| Processor (CPU) | Intel® 4th Gen Core™ i3-4010U dual-core 1.7 GHz |
| System Memory | 4 GB DDR3L 1600 MHz SDRAM (SO-DIMM slot) |
| Front Panel Protection | IP65 / NEMA 4 rated dust and moisture sealing |
| Cabinet Construction | Fanless die-cast aluminum alloy front bezel with steel sheet chassis |
| Storage Capabilities | Supports CFast Card and internal 2.5″ SATA SSD drives |
| I/O Interfaces | 2 x Gigabit Ethernet, 2 x RS-232/422/485 serial ports, 2 x USB 3.0, 1 x HDMI, 1 x Audio line-out |
| Power Requirements | 24 VDC (\pm20\%) operating input |
4. Product Introduction & Supply Chain Strategy
The ABB 3BHB040969R0001 TPC-1582H is an industrial-grade, fanless 15-inch Touch Panel PC. Co-developed with Advantech hardware architecture and fully certified under ABB’s rigorous power-system and medium-voltage drive standards, this unit acts as a high-durability Human-Machine Interface (HMI). It is deployed in the demanding environments of power generation facilities, grid monitoring sub-stations, and petrochemical plants where standard computers would quickly fail due to dust, moisture, and high electromagnetic interference (EMI).
Because an HMI terminal functions as the operator’s primary window into complex machinery, a failed screen instantly blinds your staff to real-time system alerts, temperatures, and pressures. Rather than risking unpredictable downtime on third-party repaired units (which often suffer from compromised touchscreen matrixes or failing LCD backlights), stocking a New Surplus 3BHB040969R0001 terminal is the safest choice. Storing a zero-hour, factory-fresh HMI ensures immediate field restoration with pristine display optics and fully responsive touch layers.
- 3BHB040969R0001 TPC-1582H

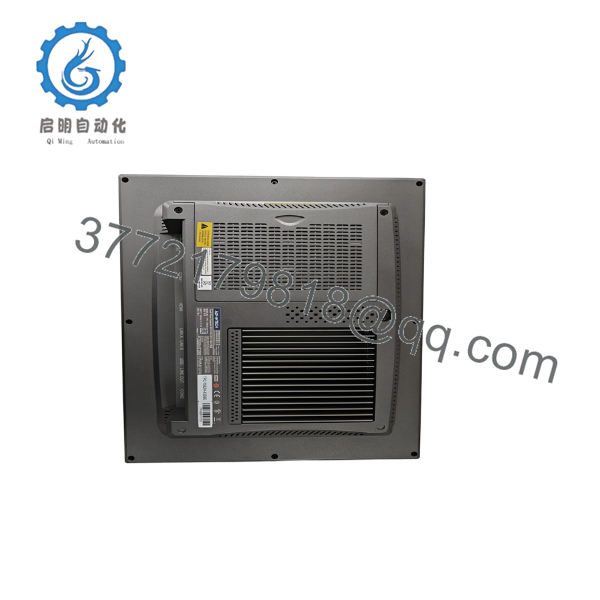

- 3BHB040969R0001 TPC-1582H
5. Installation & Cabinet Integration Guide
Stage 1: Cutout & Pre-Installation Prep
Ensure the structural enclosure where the PC is to be mounted matches the recommended cutout dimensions for a 15″ TPC (374.5 mm \times 298.5 mm with a maximum panel thickness of 6 mm). Isolate the local 24 VDC control power distribution loop. Fasten a grounded ESD wrist strap to your arm to protect the internal electronic boards during handling.
Stage 2: Mechanical Panel Mounting
- Position the TPC-1582H from the front of the cabinet door into the cutout opening, checking that the rubber IP65-rated front-bezel gasket is properly seated against the sheet metal.
- From inside the cabinet, insert the provided panel mount clamps into the slots on the sides of the PC chassis.
- Tighten the clamp screws evenly until the unit is held firmly against the panel to establish an airtight, moisture-resistant seal.
Stage 3: Electrical & Network Cabling
Connect the field and system cables to the lower I/O panel:
- Grounding: Connect a low-impedance ground wire from the chassis ground screw directly to the cabinet’s main copper ground bar.
- Network Integration: Insert the redundant RJ-45 Ethernet cables into the gigabit LAN ports.
- Power Supply: Wire the nominal 24 VDC supply lines into the included 3-pin terminal block plug, checking the polarity carefully before plugging it in.
Stage 4: Commissioning & Image Configuration
Energize the 24 VDC feed. The unit will boot through its BIOS screen and load its pre-installed operating system (such as Windows Embedded Standard or the designated ABB software image). Use the touchscreen calibration tool to align the pointer to your touch. Open your supervisory software to verify that communication links to your PLCs are healthy and that the control screen updates properly.
6. Frequently Asked Questions (FAQ)
What is the advantage of a fanless design for the TPC-1582H?
By using a fanless system cooled entirely by a passive heatsink and its aluminum alloy chassis, the TPC-1582H prevents dust, moisture, and corrosive atmospheric particles from being drawn into the computer enclosure. This design drastically reduces physical component wear and prevents internal hot spots, making it ideal for dusty petrochemical and utility applications.
Does this ABB-specified computer support advanced fieldbus networks?
Yes. The TPC-1582H features Advantech’s modular iDoor technology. By installing optional mini-PCIe expansion cards (such as Hilscher netX modules), you can configure the unit to communicate directly over industrial networks like PROFINET, EtherCAT, EtherNet/IP, or PROFIBUS without needing external signal converters.
Is this unit a standard refurbished Advantech panel PC?
No. This is a Brand New Surplus unit certified under the ABB part number 3BHB040969R0001. It has not been used or salvaged, and has not undergone third-party electronic repairs. The PC is shipped in original protective industrial packaging, featuring clean, unscored connector pins, a flawless screen bezel, and factory-fresh internal memory components.
What warranty terms apply to this HMI hardware?
Every New Surplus 3BHB040969R0001 panel PC is backed by our comprehensive 1 -year operational warranty from your date of purchase. If a component defect occurs during this window under normal operating parameters, we will facilitate an immediate replacement or repair.
