Product Core Brief

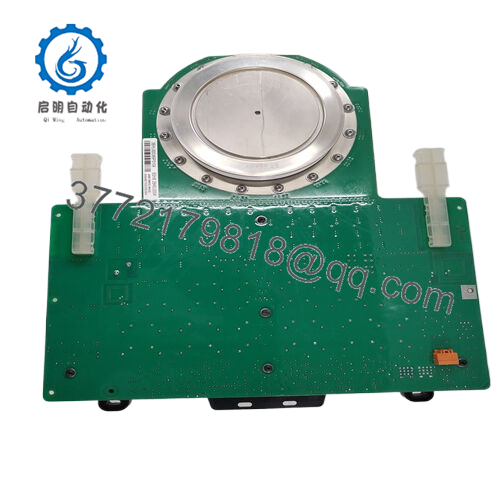

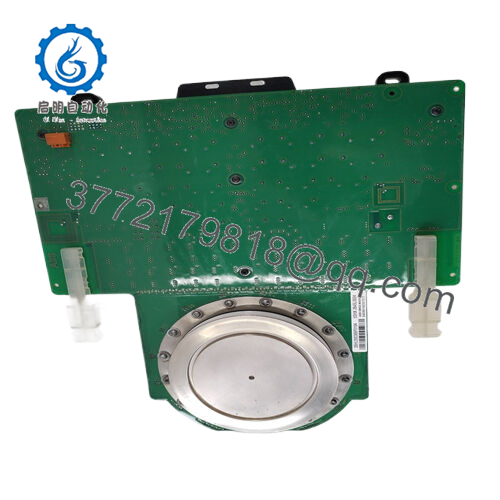

- Model: 5SHX2645L0004 (3BHL000389P0104)
- Brand: ABB
- Series: 5SHX IGCT Series
- Core Function: High-voltage power switching
- Product Type: Press-pack IGCT module
- Key Specs: 4500 V | High current rating | Fast switching
- Condition: New Surplus (factory sealed, original packaging).
- Inventory Status: Buffer stock for legacy IGCT systems; monitor EOL in PCS6000/ACS6000
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | IGCT Module |
| Voltage Rating | 4500 V |
| Current Rating | High-power (specifics per datasheet) |
| Housing Type | Press-Pack, 91 mm height |
| Switching Type | Fast on/off with gate control |
| Cooling Method | External heatsink or liquid |
| Gate Interface | Integrated drive circuits |
| Operating Environment | Harsh industrial conditions |
| Weight | 2.6 kg |
| Applications | Inverters, drives, renewables |
| Certifications | ABB OEM standards |
- 5SHX2645L0004
Product Introduction & Supply Chain Strategy
The ABB 5SHX2645L0004 is an IGCT module for high-voltage inverters, motor drives, and renewable energy converters like wind turbines. It delivers precise current control in medium-voltage systems such as ACS6000 and PCS6000, handling multi-MW loads in steel mills and HVDC with low losses.
New Surplus inventory secures supply before full EOL, minimizing TCO by avoiding refurbished parts’ hidden failures like capacitor wear that trigger $50k downtimes. Keep min/max levels at 1/2 units for critical spares, leveraging 20-30% savings over OEM while ensuring 10+ year life.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
Lock out/tag out all power sources. Use ESD strap, torque wrench for press force, fiber-optic tools. Photograph gate connections, coolant lines, and any jumpers; confirm 20% buffer on cooling capacity.
Stage 2: Removal
Drain fluids if liquid-cooled. Release press evenly to prevent pin damage. Disconnect gate fibers without bending; remove module vertically.
Stage 3: Installation (Clone & Seat)
Replicate gate fiber positions from photos. Apply specified press force (per ABB torque specs). Secure coolant fittings at 10 Nm; verify alignment.
Stage 4: Power-On & Testing
Power gate drive; check for shorts on rails. Observe status LEDs (RUN green, no fault). Test at 10% load, confirm comms and thermistor readings (2-10 kΩ).
Firmware/Software Versions & Upgrade Notes
Gate unit firmware (e.g., matched to drive controller) required—no module-level updates. Use ACS/PCS series V7.x or earlier for compatibility; mismatch causes turn-off delays
Document original version pre-swap; upgrades risk overvoltage trips, downgrades lead to comms loss—test incrementally at low power.
Frequently Asked Questions (FAQ)
Is this New Surplus or refurbished?
Factory New Surplus—sealed OEM packaging, zero hours, full QC including power-on test. We reject used parts due to relay degradation risks.
Why the price gap to OEM/refurb?
Sourced globally as last-time-buy, 60-70% below list but above junk with failure risks. Includes 1-2 year warranty vs. 30 days on refurb.
EOL status on 5SHX2645L0004?
Legacy in high-power drives; stock 1-2 as insurance against discontinuations via vendor frame agreements.
Hot-swap possible?
No—full shutdown mandatory for 4500V press-pack. Risks arcing; build redundancy
Config retention across swaps?
None on module; stored in gate/drive controller. Backup params first
Warranty coverage?
1-2 years, OEM-equivalent, with serial docs and test reports. Excludes mishandling like improper torque.
Stocking advice?
Min 1, max 2 for A-class critical spares; JIT for fast-movers, consignment option for slow.
