ABB 5SHY3545L0009 IGCT Power Semiconductor Module

Description

3. Key Technical Specifications

ABB identifies 5SHY3545L0009 (Product ID 3BHB013085R0001) as an IGCT MODULE supplied as a spare part for ABB drive and power-conversion equipment. The official product information lists a net weight of approximately 3.4 kg and Swiss origin.

4. Product Introduction

The ABB 5SHY3545L0009 (3BHB013085R0001) is a high-power Integrated Gate-Commutated Thyristor (IGCT) module used in medium-voltage power converters. It serves as the primary switching device inside converter power stacks, where efficient control of high voltage and high current is required.

Unlike conventional IGBT modules, an IGCT is designed for megawatt-class applications with very low conduction losses and high surge capability. It is commonly installed in ABB medium-voltage drives, static excitation systems, and industrial power conversion equipment where long-term reliability and precise switching performance are essential.

5. Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (15 minutes)

⚠️ Safety First

1. Notify plant operations of the shutdown.
2. Apply Lock-Out/Tag-Out procedures.
3. Disconnect all incoming power.
4. Verify the DC bus is completely discharged.
5. Confirm stored energy capacitors are below the manufacturer’s safe voltage.

Required Tools

• ESD wrist strap
• Insulated torque wrench
• Digital multimeter
• Thermal compound (if specified)
• Camera for documentation
• Converter service manual

Before Removal

• Record converter fault history.
• Photograph all power busbar connections.
• Label every gate driver cable.
• Record the associated gate driver module and cooling assembly.

Stage 2 – Removing the Existing IGCT Module (15–20 minutes)

1. Remove converter access panels.
2. Disconnect fiber-optic or gate-drive connections.
3. Remove power busbars in the specified sequence.
4. Loosen mounting hardware evenly.
5. Lift the IGCT module carefully.

⚠️ Never pry against the ceramic housing. Even minor mechanical damage can permanently affect the semiconductor.

Inspect:

• Busbar contact surfaces
• Cooling plates
• Insulation sheets
• Clamping hardware
• Gate connector condition

Stage 3 – Installing ABB 5SHY3545L0009 (20 minutes)

1. Verify the part number is 5SHY3545L0009 / 3BHB013085R0001.
2. Clean all mounting surfaces thoroughly.
3. Install the module using ABB’s specified clamping sequence.
4. Apply the correct tightening torque.
5. Reconnect gate-drive wiring.
6. Reinstall power busbars.
7. Confirm all insulation barriers are correctly positioned.

Installation Checklist

• ☑ Correct module installed
• ☑ Busbars clean
• ☑ Torque verified
• ☑ Cooling surfaces inspected
• ☑ Gate driver connected
• ☑ Insulation intact

Stage 4 – Power-Up & Functional Testing (20–30 minutes)

1. Measure insulation resistance before energizing.
2. Apply auxiliary control power first.
3. Verify gate driver diagnostics.
4. Power the converter gradually.
5. Monitor DC-link voltage.
6. Check switching status.
7. Monitor heatsink temperature.
8. Perform a controlled load test.

⚠️ Troubleshooting

Converter Trips Immediately

Possible causes:

• Incorrect gate-driver connection
• Faulty fiber-optic communication
• Shorted power bus
• Incorrect clamping pressure

IGCT Overtemperature

Check:

• Cooling water flow (if water-cooled)
• Fan operation
• Thermal interface condition
• Heatsink cleanliness

5SHY3545L0009

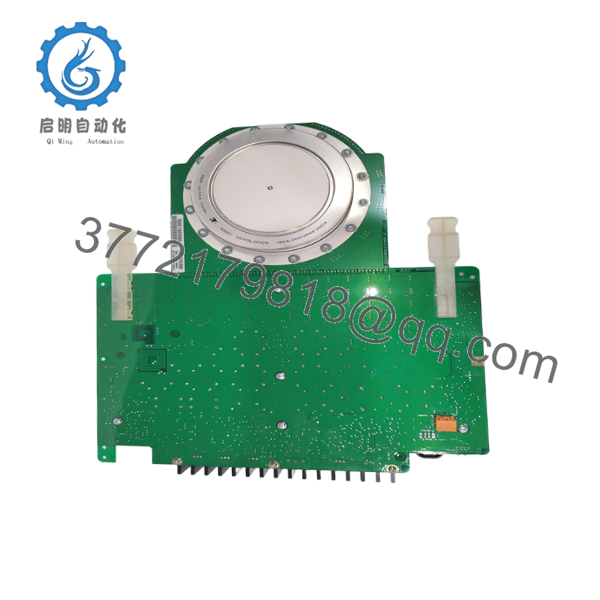

5SHY3545L0009

6. Frequently Asked Questions (FAQ)

Q1. What is the function of the ABB 5SHY3545L0009?

It is the main power-switching semiconductor used in medium-voltage converters. The IGCT rapidly switches high currents while maintaining low conduction losses, making it suitable for high-power industrial drives and excitation systems.

Q2. Is this an IGBT module?

No.

Although both are power semiconductors, an IGCT is designed for substantially higher power levels than conventional IGBTs. IGCT technology is commonly used in megawatt-class converters where efficiency, surge capability, and reliability are critical.

Q3. Can I replace only the IGCT module?

Yes, provided that:

• The gate driver is compatible.
• Cooling components are in good condition.
• Mechanical clamping follows ABB specifications.
• The replacement has the exact part number (5SHY3545L0009 / 3BHB013085R0001).

Q4. Is this module used with other ABB components?

Yes. The 5SHY3545L0009 is commonly paired with ABB gate-driver assemblies such as GVC750BE101 (3BHE009681R0101) in medium-voltage converter systems. Compatibility should always be verified against the specific converter design.

Q5. Can the module be hot-swapped?

No.

The IGCT is installed in the converter’s main power circuit. All power sources must be isolated, and the DC-link capacitors fully discharged before replacement.

Q6. What should I verify before ordering?

Confirm the following:

• ABB Product ID (3BHB013085R0001)
• Device designation (5SHY3545L0009)
• Converter model
• Gate-driver compatibility
• Cooling system configuration
• Mechanical mounting arrangement
• Hardware revision

Verifying these items before purchase helps avoid compatibility issues and minimizes commissioning time after installation.
