ABB AO910 Analog Output Module 4 Channels S900 Remote I/O

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The ABB AO910 is a 4-channel analog output module designed for the S900 Remote I/O platform. Operating over a standard PROFIBUS DP field network, this module converts digital position demands into isolated 0/4 to 20 mA current loops to drive control valves, positioners, and actuators directly in industrial environments. The module is available in distinct environment models: the AO910S features an integrated galvanic isolation barrier for installation directly inside ATEX Zone 1 hazardous areas, eliminating external marshalling barriers.

From an inventory optimization standpoint, the AO910 is a classic “insurance policy” asset class. Because these units frequently manage critical control loops in explosive or highly corrosive environments (supported by standard G3 conformal coating), a field failure will disrupt the entire safety loop. Sourcing New Surplus components prevents the catastrophic downside of refurbished options, which risk component drift or compromised intrinsic safety barriers. A verified New Surplus unit provides long-term operational peace of mind without the extended procurement delays associated with factory backorders.

AO910

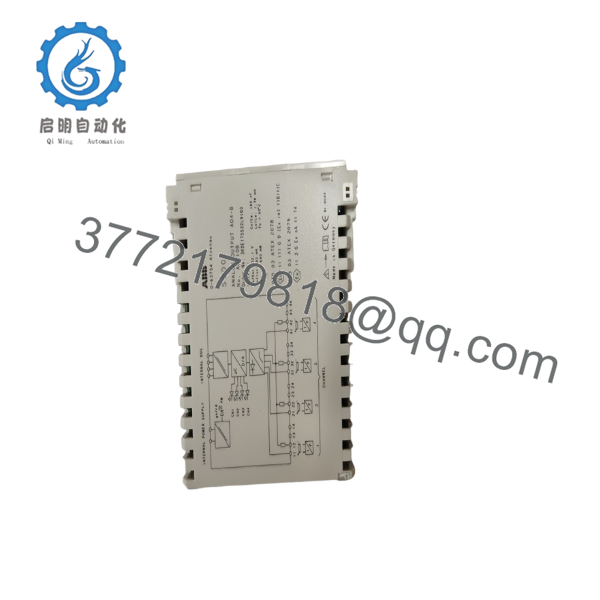

AO910

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify the environmental classification of the target slot. CRITICAL: Ensure you do not mix Type N (safe area), Type B (Zone 2), and Type S (Zone 1) components within the active rack.
2. Fasten a grounded ESD wrist strap before handling the replacement module.
3. Review system documentation to ensure the target PROFIBUS master is configured to recognize the correct device variant slot index.

Stage 2: Removal

1. The S900 architecture fully supports Hot Swap functionality. You do not need to power down the entire I/O rack.
2. Engage the module’s mechanical disconnection mechanisms to unseat it cleanly from the terminal block.
3. Slide the card straight outward from the terminal slot housing and package it immediately in an ESD shielding pouch.

Stage 3: Installation (Clone & Seat)

1. Confirm that the slot keying matches the target AO910 module type configuration.
2. Align the module card with the card guides on the S900 terminal block housing.
3. Slide the module home until the integrated latching mechanism engages securely, establishing proper galvanic connectivity with the backplane bus.

Stage 4: Power-On & Testing

1. Once inserted, the module executes an automated power-on self-test via its local diagnostic microcode.
2. Monitor the local status LEDs. The green power indicator should stay steadily lit, while channel status indicators must confirm active loop continuity without fault.
3. Validate field loop status via your FDT/DTM engineering software to ensure that wire-break and short-circuit monitoring parameters indicate nominal status.

6. Firmware/Software Versions & Upgrade Notes

The AO910 family depends heavily on correct GSD (Generic Station Description) configuration files loaded into your network’s PROFIBUS DP master. When replacing a legacy module index, check the hardware release suffix. If a system is running legacy engineering environments, inserting a newer firmware revision can cause configuration mismatches during the PROFIBUS initialization handshake.

Do not attempt firmware modifications on modules allocated to hazardous Zone 1 deployments. Any unauthorized firmware flashes can invalidate localized intrinsic safety parameters and type certifications. If your facility runs specific legacy baselines, verify those parameters with procurement prior to component deployment.

7. Frequently Asked Questions (FAQ)

Can I mix AO910S and AO910N modules in the same S900 rack?

No. ABB system specifications explicitly warn against mixing Type N, B, and S system components within the same localized rack infrastructure. The sub-assemblies utilize distinct grounding paths and physical isolation limits to ensure intrinsic safety compliance.

What is the purpose of the G3 coating on this module?

The standard G3 conformal coating provides exceptional resistance against corrosive gases and industrial moisture profiles (complying with ISA-S71.04 criteria). This protection ensures long-term operational life in harsh chemical, petrochemical, and wastewater processing environments.

Does the AO910 support HART pass-through communication?

No, the standard AO910 variant does not process secondary high-frequency HART protocol overlays. If your system relies on digital HART valve diagnostic readouts, you must procure the specialized AO930S/B/N variant.

Is it completely safe to pull this module out while the fieldbus is active?

Yes, the S900 Remote I/O line is engineered with an integrated hot-swap disconnection mechanism that lets you exchange modules during continuous operation without disrupting power or network lines. However, be aware that pulling the card will instantly open-circuit the four associated field actuator loops.

What warranty applies to this New Surplus module?

Every New Surplus AO910 module comes backed by our 12-month commercial replacement warranty. This coverage ensures complete operational protection against mechanical flaws or component failure from the exact day your logistics team receives the shipment.

The AO910 provides four highly isolated analog current outputs for S900 fieldbus platforms. It is equipped with G3 conformal coating and built-in short-circuit and wire-break diagnostics to ensure stable actuator control in demanding plant environments.
