ABB BC810K01 AC 800M Controller Bus Extension System Specs

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The ABB BC810K01 (3BSE031154R1) is a high-performance CEX-Bus Interconnection Unit designed to expand the communication capabilities of AC 800M controllers. When a system architecture requires multiple serial, Profibus, or Ethernet communication modules (such as CI853, CI854, or CI867) that exceed the physical backplane limit of a single processor slot, the BC810 splits and extends the CEX-Bus. It provides optical and galvanic isolation between the processor-adjacent CEX segment and downstream expansion segments. This layout prevents electrical disturbances from propagating throughout the entire control platform.

From a procurement and maintenance strategy perspective, stocking the BC810K01 as a New Surplus asset is critical for plants relying on System 800xA. Since the CEX-Bus acts as the central nervous system for all external network communications, any failure on an expansion node or interconnect card will instantly blind the main controller to field networks or third-party subsystems. Deploying cheap, unverified refurbished cards introduces the risk of subtle diagnostic lag or internal bus impedance mismatches. Sourcing our factory-original New Surplus kits guarantees optimal signal integrity, protects redundant communication paths, and keeps your system online.

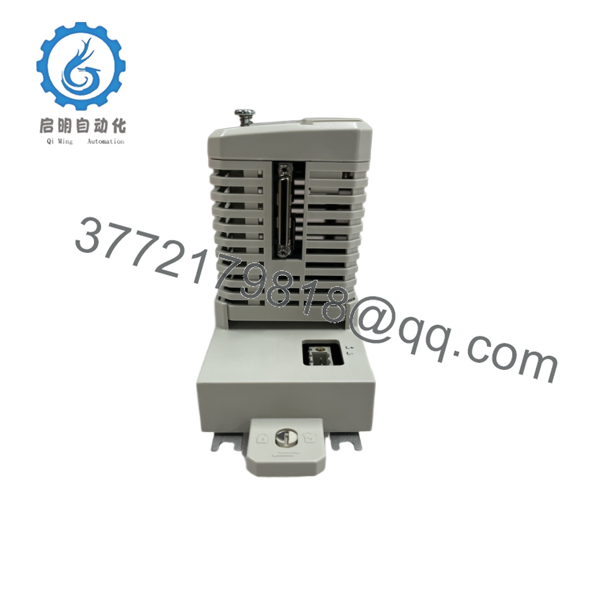

BC810K01

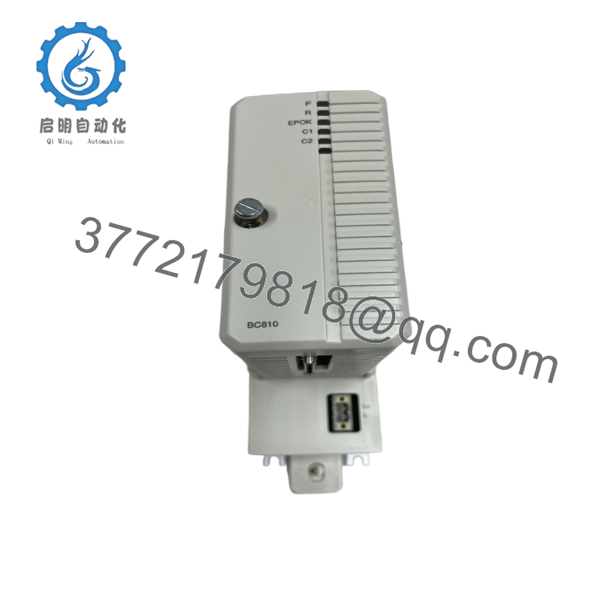

BC810K01

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify that the AC 800M controller rack is in a stable state. If running redundant processors, ensure primary/secondary synchronization is nominal before making bus adjustments.
2. Put on a grounded ESD wrist strap and connect the ground clip to the control cabinet’s earth ground bar.
3. Verify that dual independent 24 V DC power sources are prepared and safely isolated at the terminal points.

Stage 2: Removal

1. Unplug the redundant 24 V DC power connectors from the front terminal points of the running unit.
2. Unthread the module’s securing screw located on the front face of the BC810 housing.
3. Slide the BC810 module straight forward off the TP850 baseplate, taking care not to disturb the adjacent communication cards.
4. If replacing the baseplate as well, slide the TP850 baseplate off the DIN rail after disconnecting the adjoining bus extension cable.

Stage 3: Installation (Clone & Seat)

1. Mount the TP850 baseplate onto the DIN rail and connect the left-hand bus expansion bridge to the controller backplane.
2. Align the new BC810 module with the TP850 card guide tracks.
3. Push the module firmly onto the baseplate connector until it seats completely, then hand-tighten the front panel retaining screw to lock it in place.

Stage 4: Power-On & Testing

1. Reconnect the dual 24 V DC power plugs.
2. Watch the startup diagnostic LEDs. The green P (Power) LED should glow steadily. Once initialization is complete, the R (Run) LED should lock on, and the red F (Fault) LED must remain completely dark.
3. Check your engineering software’s hardware tree to confirm that the CEX-Bus extension is online and all downstream interface modules (e.g., CI854) are communicating without errors.

6. Firmware/Software Versions & Upgrade Notes

The BC810K01 acts primarily as a physical media converter and bus transceiver, which means it is largely independent of direct firmware loads. However, the system’s firmware library within Control Builder M must be configured to recognize the bus extension branch topology. If you are inserting this unit to expand an existing running controller rack, verify that your software project configuration accurately reflects the presence of the BC810 block in the physical layout.

Do not plug in communication modules that require higher data throughput than your current CPU firmware revision supports over an extended CEX-Bus. Always verify the maximum supported segment lengths and baud rate limits defined in your specific AC 800M system guide to avoid communication timeouts or buffer overflows.

7. Frequently Asked Questions (FAQ)

Does the BC810K01 support hot-swapping under power?

Yes. You can hot-swap the BC810 module on an active TP850 baseplate. However, pulling the module will instantly sever the CEX-Bus connection to all communication interfaces located to the right of the BC810 unit. Ensure that any processes controlled via these interfaces are locked in safe manual states before starting the swap.

What is included in the BC810K01 kit?

The BC810K01 is a complete hardware kit. It contains the active BC810 CEX-Bus Interconnection module and the matching TP850 baseplate unit. If you only need to replace the active electronics, you can swap the module itself while leaving the existing TP850 baseplate on the DIN rail.

Why do I need optical isolation on a CEX-Bus extension?

Optical isolation breaks ground loops and prevents high-voltage electrical surges (caused by field faults or lightning strikes on remote communication lines) from reaching the main AC 800M processor card. It acts as an electrical firewall, protecting your highly expensive central processing unit.

Can I run this module with only a single 24 V DC power feed?

Yes, the BC810 will run on a single power feed, but this triggers a power monitoring fault. To maintain high plant availability, you should always connect redundant, dual-feed 24 V DC sources to the separate power input terminals on the front of the unit.

What is the warranty on this New Surplus kit?

Our New Surplus BC810K01 kits are protected by our comprehensive 1-year replacement warranty. This warranty begins on the day of delivery, protecting your facility against early failures and giving you the same peace of mind as a factory-direct purchase.

The BC810K01 kit provides optically isolated CEX-Bus extension capabilities for AC 800M controller setups. It features dual redundant 24 V DC power terminals and full compatibility with standard S800 communication interfaces to ensure stable, isolated communications across your control network.
