ABB CI541V1 3BSE014666R1 PROFIBUS-DP Interface

Description

Key Technical Specifications

ABB’s current product-detail record gives the 255 mm × 125 mm × 20 mm dimensions, 0.17 kg net weight, RoHS status, and AC 400/Advant controller classifications.

ABB’s Advant Controller 410 product guide specifically lists CI541V1, Article No. 3BSE014666R1, as the one-channel communication interface for PROFIBUS-DP.

Compatibility Clarification

A number of aftermarket listings incorrectly place CI541V1 3BSE014666R1 in the newer AC 800M/S800 product family. ABB’s own product records instead classify this part under AC 400 / Advant OCS, including Advant Controller 110, 410, 450, and 450RMC configurations.

For an existing AC 400 installation, the controller model and submodule carrier should therefore be checked before treating a supplier listing as proof of compatibility.

Product Introduction

The ABB CI541V1 3BSE014666R1 is a single-channel PROFIBUS-DP interface submodule for ABB’s legacy Advant OCS/AC 400 control architecture. It provides the PROFIBUS-DP communication interface used by supported Advant controllers to exchange data with distributed field equipment. ABB documentation explicitly identifies CI541V1 as the PROFIBUS-DP interface for the Advant Controller 450 and lists it for other Advant controller configurations as well.

This is a legacy submodule rather than a general-purpose Ethernet communication card. Replacement planning should verify the Advant controller model, SC510/SC520 carrier arrangement, PROFIBUS configuration, and installed software/database configuration before ordering. The physical part number should be matched exactly as / 3BSE014666R1.

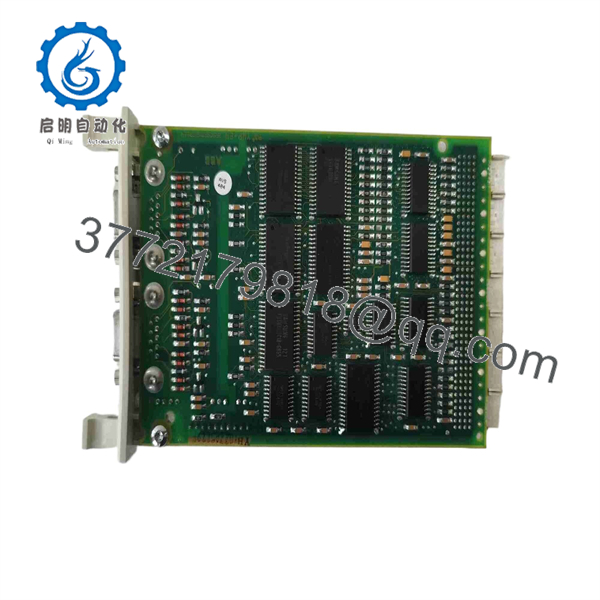

CI541V1 3BSE014666R1

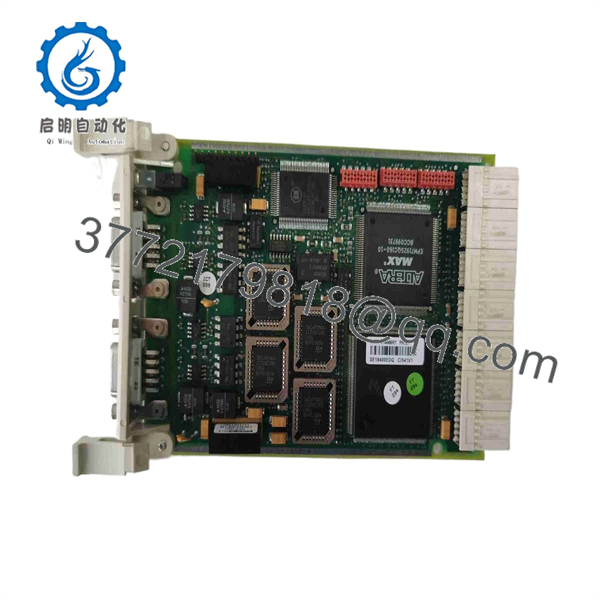

CI541V1 3BSE014666R1

Installation & Configuration Guide

Stage 1 — Pre-Installation Preparation

Approximate time: 20–30 minutes

1. Follow the plant’s lockout/tagout and controller maintenance procedure.
2. Record the complete existing module identification: / 3BSE014666R1.
3. Record the Advant controller model and submodule carrier type.
4. Back up the controller application and configuration database before removing the communication module.
5. Record the PROFIBUS network configuration, including station addresses, baud rate, connected slaves, and bus topology.
6. Photograph the PROFIBUS connector and module position.
7. Verify that the replacement module has the same ordering number and compatible hardware revision.

⚠️ Do not substitute an AC 800M communication module simply because a supplier database describes as an AC 800M module. ABB’s product classification places within the Advant/AC 400 architecture.

Stage 2 — Removing the Existing Module

Approximate time: 15–20 minutes

1. Place the controller in the approved maintenance state.
2. Follow the applicable Advant hardware isolation procedure.
3. Do not remove the from a live SC510/SC520 carrier unless the exact approved live-insertion procedure for the installed controller version is being followed.
4. Label the PROFIBUS cable and record its connector position.
5. Disconnect the PROFIBUS connection without applying excessive force to the connector.
6. Release the submodule from the carrier.
7. Inspect the carrier connector and adjacent modules for bent pins, contamination, or mechanical damage.

ABB release documentation specifically warns that should not simply be inserted live into a running SC510/SC520 carrier because the Advant Controller 450 may stall.

Stage 3 — Installing

Approximate time: 15–25 minutes

1. Verify the replacement label shows and 3BSE014666R1.
2. Confirm the intended carrier position against the controller configuration.
3. Carefully seat the submodule into the carrier without forcing the connector.
4. Secure the module using the applicable carrier hardware.
5. Reconnect the PROFIBUS cable in its documented position.
6. Verify the PROFIBUS termination arrangement at the physical ends of the bus.
7. Check cable shielding and grounding against the plant’s PROFIBUS installation standard.
8. Do not change the existing network topology or termination configuration during a simple module replacement.

ABB’s Advant Controller 450 documentation shows the installed on an SC510 or SC520 carrier for PROFIBUS-DP and notes that the bus must be terminated at its ends.

Stage 4 — Power-On & Testing

Approximate time: 30–60 minutes

1. Perform a final inspection of the module seating and PROFIBUS connection.
2. Restore controller power according to the site’s approved startup sequence.
3. Verify controller initialization and communication-module diagnostics.
4. Confirm that the is recognized at the configured carrier position.
5. Verify the PROFIBUS network configuration against the backup.
6. Check communication with representative PROFIBUS-DP devices.
7. Confirm that expected process values are updating correctly.
8. Verify diagnostic status for connected slaves.
9. Check for bus errors, station-address conflicts, or termination faults.
10. Save the verified controller configuration after successful commissioning.

⚠️ If the controller starts but PROFIBUS devices remain unavailable, check the physical bus, termination, station addressing, carrier position, and controller configuration before replacing additional modules.

FAQ

What is ABB 3BSE014666R1?

It is an ABB PROFIBUS-DP interface submodule used with the Advant OCS/AC 400 family of controllers. ABB identifies 3BSE014666R1 as the product ID and as its type designation.

Is an AC 800M module?

ABB’s product documentation does not classify this part as a standard AC 800M communication module. The current ABB product record places it under AC 400 – Communication Modules / PROFIBUS-DP, with compatibility entries for Advant Controller 110, 410, 450, and 450RMC configurations.

How many PROFIBUS channels does provide?

The Advant Controller 410 product guide identifies as a one-channel PROFIBUS-DP communication interface.

How many modules can an Advant Controller 450 use?

ABB’s Advant Controller 450 documentation lists up to eight PROFIBUS-DP interface channels using within the stated hardware limits. The actual permissible configuration depends on the controller, submodule carriers, and other communication interfaces installed.

Can be hot-swapped?

Do not treat it as a conventional hot-swappable I/O module. ABB release documentation specifically warns against inserting live into a running SC510/SC520 carrier because the Advant Controller 450 may stall.

What is the physical size of ?

ABB’s current product data lists approximately 255 mm depth × 125 mm width × 20 mm height, with a net weight of 0.17 kg.

What should be checked before ordering a replacement?

Verify the following against the installed system:

• 3BSE014666R1
• Advant controller model
• or carrier where applicable
• PROFIBUS-DP network configuration
• Module position
• Controller software/configuration revision
• PROFIBUS termination and cabling
• Required condition: new original, surplus, or tested refurbished

For legacy Advant systems, matching the complete part number and controller architecture is more reliable than selecting a communication module based only on the PROFIBUS protocol.
