Key Technical Specifications
- Communication Protocols: TCP/IP, UDP via VIP interface
- Function: Multi-vendor interface for integration with third-party systems
- Mounting: DIN-rail in AC800M or Advant controller rack
- Application: Connects to external devices and systems using standard Ethernet-based protocols
- Compatibility: Works with AC800M controllers and Advant open control systems
- Data Handling: Supports real-time data exchange between control systems
- Operating Temperature: Standard industrial range for AC800M modules (0 to +55 °C typical)
- Power Supply: Supplied via controller backplane
Product Introduction
The ABB CI546 (3BSE012545R1) is a VIP Communication Interface module used in AC800M and Advant control systems. It enables multi-vendor connectivity by supporting TCP/IP and UDP protocols for data exchange with external equipment and systems.
Field teams use this module when integrating ABB controllers with third-party PLCs, SCADA systems, or specialized devices. It provides a reliable Ethernet-based link that fits standard controller racks and reduces custom programming needs through its defined interface.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No Ethernet link | Cable or network config issue | ✅ High | Check link LEDs on module and switch | Verify IP settings and cable integrity |
| Communication timeouts | Protocol mismatch | ✅ High | Monitor diagnostic counters in Control Builder | Confirm TCP/UDP port and remote device settings |
| Module not recognized | Backplane or power fault | ✅ Medium | Check module status LEDs and rack power | Reseat module; verify backplane voltage |
| Intermittent data loss | Network congestion | ❌ Low | Use network analyzer on the segment | Optimize network traffic or add switches |
| VIP interface errors | Firmware incompatibility | ✅ High | Read error logs in controller software | Match firmware versions between CI546 and CPU |
Contact technical support with screenshots of diagnostics, network captures, and module serial numbers if problems continue.

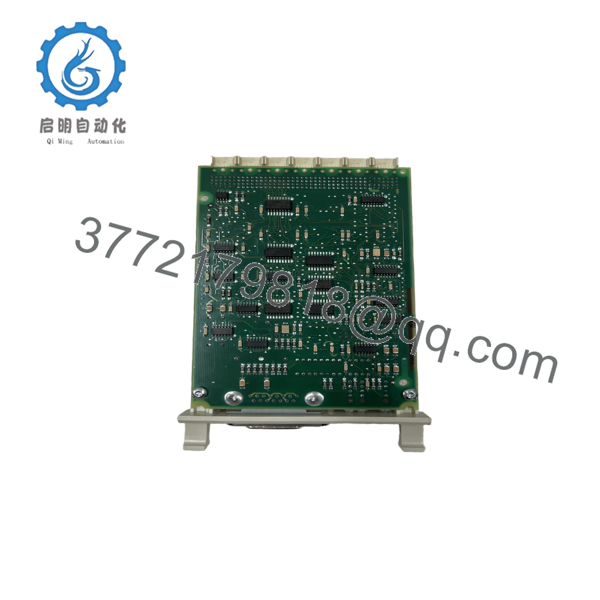

- CI546

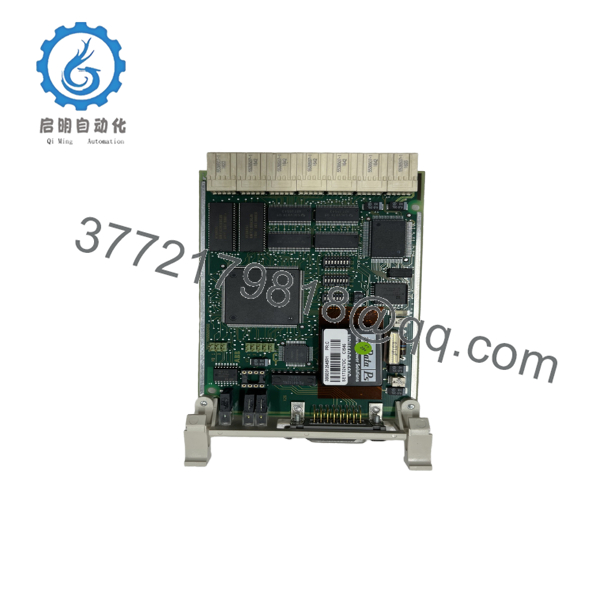

- CI546
Frequently Asked Questions (FAQ)
What systems does the CI546 work with? It integrates primarily with ABB AC800M and Advant open control systems. It acts as a multi-vendor interface for TCP/IP and UDP communications.
Is the CI546 hot-swappable? Follow standard AC800M procedures. In redundant setups it may support online replacement, but always power down the specific communication path when possible to avoid disruptions.
Do I need special cables or accessories? Standard Ethernet cables for the network ports. Confirm your controller rack has available slots and matching firmware for the CI546.
Why is New Surplus a good option here? These are genuine ABB new units from project spares or excess stock. They receive full inbound verification and functional testing in AC800M racks before shipping, with documentation available.
How do I configure the communication parameters? Use Control Builder or the engineering tool for your AC800M system. Set IP addresses, ports, and VIP protocol parameters according to the connected device requirements.
What is the typical lead time compared to factory new? New Surplus units ship same or next day from stock. Factory fresh orders can take longer depending on current production schedules.
Any common installation pitfalls? Take a photo of existing DIP switches or jumpers if applicable, and verify network segmentation. Use shielded Ethernet cables and proper grounding. Always wear an ESD strap when handling the module.
