Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | ABB |
| Model Series | ControlMaster CM10 |
| Form Factor | 1/16 DIN (48 mm × 48 mm panel cutout) |
| Display Type | 5.7 cm (2.25 in.) full-color TFT screen with customizable layouts |
| Universal Inputs | 1 input channel (Thermocouple, RTD, 0–10 V DC, 0–20 mA / 4–20 mA) |
| Control Modes | Single-loop PID, On/Off, Auto-tune, Manual, Ramp/Soak profiling |
| Relay Outputs | Up to 2 control/alarm relays (spdt/spst model dependent) |
| Analog Outputs | 1 isolated 0–20 mA / 4–20 mA retransmission or control output |
| Supply Voltage | 100–240 V AC (50/60 Hz) or 24 V AC/DC options |
| Front Panel Protection | NEMA 4X / IP66 rated for hose-down environments |
| Communications | RS-485 Modbus RTU interface option |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
Product Introduction & Supply Chain Strategy

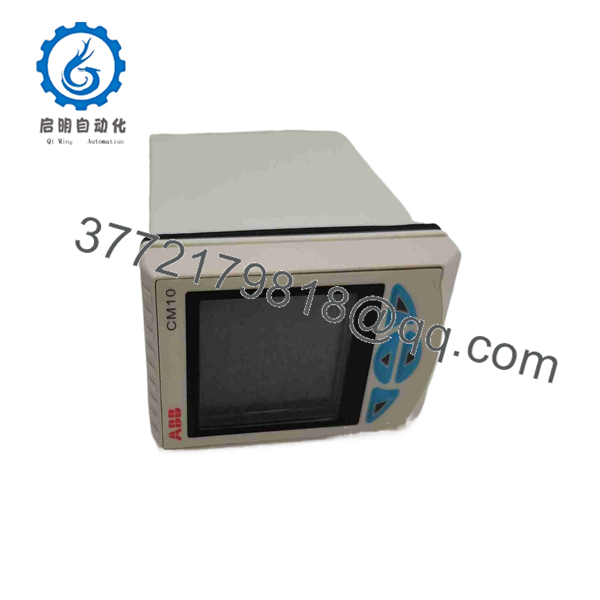

The ABB ControlMaster CM10 is a versatile 1/16 DIN single-loop process controller engineered for precision control across temperature, pressure, liquid level, and flow applications. Featuring a clear, full-color TFT display, the CM10 offers operator-friendly trend charts, bar graphs, and diagnostic alarms within a compact panel footprint.
Keeping verified New Surplus CM10 units in stock protects your facility against sudden instrument failures in critical process lines. Securing unused original inventory bypasses long lead times from OEM distribution channels and eliminates the operational hazards associated with second-hand hardware. Holding 1–2 replacement units on-site minimizes production downtime and optimizes your plant’s Total Cost of Ownership (TCO).

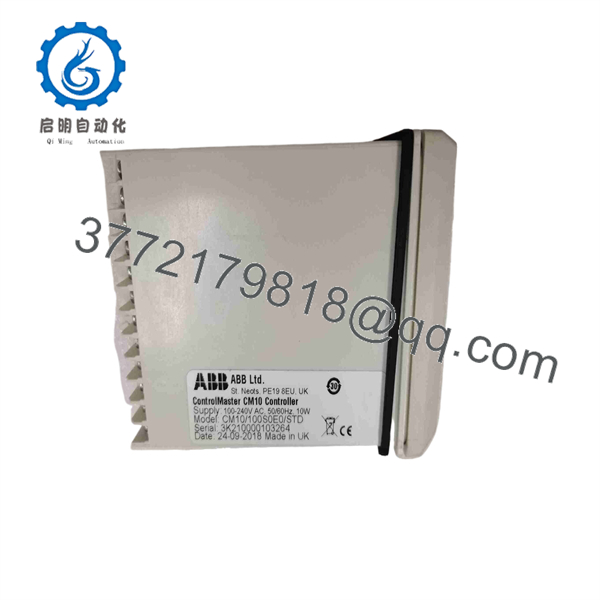

CM10
CM10
Installation & Configuration Guide
1.Stage 1: Pre-Installation (Prep & Safety):Prerequisites & LOTO.
Isolate main power to the instrument enclosure using lock-out/tag-out (LOTO) protocols. Wear a grounded ESD wrist strap during handling. Inspect the panel cutout (45 mm × 45 mm standard 1/16 DIN) and check that the rear terminal wiring matches the designated AC or DC supply voltage rating.
2.Stage 2: Removal:Safe Extraction.
Loosen the side mounting clamps securing the legacy unit inside the panel. Disconnect the pluggable terminal blocks or individual wire leads, ensuring all wire labels match their assigned terminal numbers for input, output, and line power loops.
3.Stage 3: Installation (Clone & Seat):Mechanical Mounting.
Insert the new ABB CM10 unit into the panel cutout, verifying that the IP66 panel gasket is seated evenly around the front bezel. Slide the rear mounting brackets onto the housing until the controller locks firmly against the panel face plate. Reconnect field wiring to the designated screw terminals.
4.Stage 4: Power-On & Testing:Loop Verification.
Apply operating power and follow the initial setup wizard on the TFT screen. Select the correct input sensor type (e.g., Type K Thermocouple or 4–20 mA current loop), set process setpoints, and verify sensor scaling. Run an automatic tuning cycle to calibrate PID parameters to process dynamics.
Firmware/Software Versions & Upgrade Notes
- Firmware Dependencies: ABB ControlMaster units run embedded firmware that governs menu structures, Modbus register mapping, and control math. Match firmware revisions when replacing controllers linked to supervisory Modbus RTU networks.
- Configuration Transfer: Parameter templates can be saved and cloned across CM10 controllers using ABB’s FIM (Field Information Manager) tool or via the front-panel configuration interface.
- Retrofit Warnings: When replacing older legacy controllers (such as the ABB Commander C100) with a , verify analog output load impedances and update host PLC address maps to match the ‘s Modbus register map.
Frequently Asked Questions (FAQ)
Q: This product is a Brand New Surplus unit. Is it used, pulled, or refurbished?
A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The casing shows zero panel-mounting scuffs, terminal connections are pristine, and internal electronics maintain full OEM factory integrity.
Q: Why buy New Surplus instead of taking a chance on a refurbished controller?
A: Refurbished process instruments often suffer from degraded internal power supply capacitors, worn relay contacts, and faded display backlights. Buying a refurbished unit risks premature failure under thermal stress. New Surplus guarantees a 10–15 year operational lifespan and avoids costly unplanned downtime.
Q: Can the ABB display graphical process trends directly on the screen?
A: Yes. The full-color TFT display supports multiple display modes, including historical trend graphs, digital process values, setpoint bar graphs, and plain-language diagnostic alerts without needing an external HMI screen.
Q: Is the front panel of the suitable for washdown environments?
A: Yes. The front panel features an IP66 and NEMA 4X rating, making it water-resistant and suitable for food and beverage, chemical, or washdown environments when properly panel-mounted with its sealing gasket.
Q: What power options are supported by the series?
A: The family comes in two hardware power builds: standard mains voltage (100–240 V AC) and low-voltage options (24 V AC / 12–30 V DC). Always verify your specific model suffix before connecting supply power.
Q: What warranty and quality verification backs this New Surplus unit?
A: Every unit passes complete dielectric isolation tests, universal input signal injection checks, relay output switching tests, and burn-in testing. We provide a 1-year operational replacement warranty along with full QC verification documentation.
