ABB CS513 3BSE000435R1 IEEE 802.3 LAN Module

Description

Key Technical Specifications

ABB’s published product data confirms the model, IEEE 802.3 LAN function, MB300/MB300E switch configuration, physical dimensions, and associated replacement references.

A separate technical listing gives the electrical consumption as 0.25 A at 5 V and 0.25 A at 24 V, with approximately 8 W total power dissipation. These figures should be checked against the exact board revision when performing a cabinet power calculation.

Product Introduction

The ABB CS513 3BSE000435R1 is an IEEE 802.3 LAN communication module for ABB Advant control systems. It provides the LAN interface associated with the MasterBus 300/300E architecture and is documented for Advant Controller 410, Advant Controller 450, and related legacy control-system configurations.

The important replacement detail is the MB300 versus MB300E switch configuration. ABB specifies switch position 1 for MB300 Standard and position 3 for MB300E Extended. For newer AC450 and AC460 configurations, ABB documentation identifies CS513AK01 and CS513AK02 replacement references rather than treating every CS513 installation as identical.

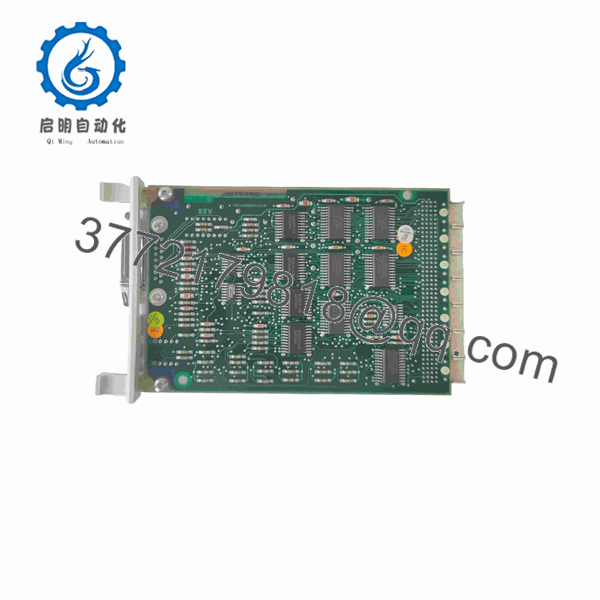

CS513 3BSE000435R1

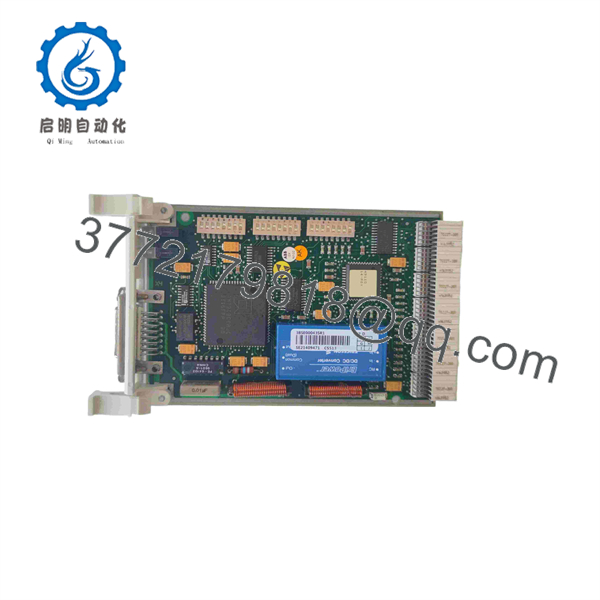

CS513 3BSE000435R1

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation — Approximately 5–10 Minutes

⚠️ Safety First: Notify operations, place the Advant control system in the approved maintenance state, and follow the plant’s LOTO procedure before removing a communication module unless the specific chassis procedure explicitly permits live replacement.

Tools Required

• ESD wrist strap
• PH1/PH2 screwdriver as applicable
• Digital multimeter
• Wire/port labels
• Smartphone or camera

Data Backup

1. Record the complete CS513 3BSE000435R1 identification.
2. Photograph the installed module and switch positions.
3. Record whether the existing configuration uses MB300 Standard or MB300E Extended.
4. Photograph network cabling and connector locations.
5. Record the controller type: AC410, AC450, AC460, or AC450RMC.
6. Save the current Advant configuration and communication parameters where applicable.

⚠️ Do not change the switch setting simply because the replacement board arrives with a different factory setting. The switch configuration must match the existing MasterBus architecture.

Stage 2: Removing the Old Module — Approximately 5 Minutes

1. Confirm the control system is in its approved maintenance state.
2. Isolate power if the installed rack does not support live module replacement.
3. Apply ESD protection.
4. Photograph the CS513 one more time before removal.
5. Record the exact switch positions.
6. Label network connections before disconnecting them.
7. Release the module’s retaining mechanism.
8. Pull the module straight out of the rack.
9. Inspect the backplane connector for bent contacts, contamination, or physical damage.
10. Store the original module in an ESD-safe bag.

⚠️ Keep the original until the replacement has passed communication diagnostics.

Stage 3: Installing the New Module — Approximately 5 Minutes

1. Verify the replacement marking: ABB 3BSE000435R1.
2. Compare the PCB revision and physical construction with the original.
3. Confirm the intended controller family.
4. Replicate the original MB300/MB300E switch configuration.
5. Inspect the rack connector.
6. Align the board with the rack guides.
7. Insert the module straight into the backplane.
8. Secure the retaining hardware.
9. Reconnect the network interface exactly as documented.
10. Confirm that the module is fully seated.

Self-Checklist

• model verified
• 3BSE000435R1 verified
• Controller type verified
• / setting copied
• Network connection labeled
• Backplane inspected
• Module fully seated
• Retaining mechanism secured

Stage 4: Power-On & Testing — Approximately 10–15 Minutes

1. Complete a visual inspection.
2. Restore power according to the Advant maintenance procedure.
3. Observe the module’s status indicators.
4. Confirm that the controller recognizes the communication interface.
5. Verify MasterBus communication.
6. Check communication diagnostics from the engineering/maintenance environment.
7. Confirm communication with the relevant controller and supervisory nodes.
8. Check for bus/network errors.
9. Verify that existing process data and supervisory communications are restored.
10. Return the system to normal operation only after operations confirms correct communications.

⚠️ Troubleshooting Note: If the module powers up but the Advant network does not communicate, check the / switch setting first. Then verify cabling, controller type, network configuration, and module revision.

Technical Pitfalls to Check Before Commissioning

1. vs. Configuration

❗ This is the first thing I would check in the field. ABB’s technical documentation explicitly associates switch position 1 with Standard and switch position 3 with Extended. Copy the original setting before removing the old board.

2. Wrong Replacement Variant

For AC450, ABB identifies 3BSE091971R1 / CS513AK01 as a replacement reference; for AC460, it identifies 3BSE091972R1 / CS513AK02. Do not assume the older and these newer variants are interchangeable without checking the controller configuration.

3. Controller Compatibility

appears in multiple Advant OCS configurations. ABB documentation associates the module with Advant Controller 410, Advant Controller 450, and Advant Controller 450RMC configurations. Verify the exact controller version before ordering.

4. Power Consumption

The published electrical data indicates approximately 0.25 A at 5 V and 0.25 A at 24 V, with approximately 8 W total dissipation. Include the communication module in the rack power calculation rather than treating it as a negligible load.

5. ESD

❗ Do not handle the PCB by its circuitry or connector contacts. Use a grounded wrist strap and ESD-safe work surface throughout the replacement.

Frequently Asked Questions (FAQ)

What is the ABB 3BSE000435R1?

The 3BSE000435R1 is an ABB IEEE 802.3 LAN communication module associated with the Advant OCS and MasterBus 300/300E architecture. ABB classifies it as a communication module rather than a standalone CPU or I/O module.

What is the difference between and on the ?

The board has a configuration switch that selects the applicable MasterBus mode. ABB specifies switch position 1 for Standard and switch position 3 for Extended. The replacement must reproduce the configuration used by the existing system.

Is compatible with ABB Advant Controller 450?

is documented within Advant Controller 450 communication-module configurations. However, ABB also identifies 3BSE091971R1 / CS513AK01 as a replacement for AC450. Therefore, verify the controller revision and existing communication architecture before treating an original as a direct replacement.

Is compatible with AC460?

ABB documentation identifies within communication-module configurations and lists 3BSE091972R1 / CS513AK02 as the replacement reference for . Confirm the exact configuration before purchasing.

Can I hot-swap the ?

Do not assume hot-swapping is permitted. I did not find an authoritative ABB statement in the available product data establishing universal hot-swap operation. Follow the specific Advant rack and plant maintenance procedure.

Is ABB 3BSE000435R1 obsolete?

It is a legacy Advant/MasterBus communication module, and ABB documentation now points to newer replacement variants for some controller configurations. However, the available ABB product documentation does not provide a simple universal EOL statement for every installation. Procurement should therefore verify the controller generation and replacement path rather than relying only on the model number.

What condition should I specify when purchasing ?

Specify the exact condition: Factory Sealed, New Original/New Surplus, or Refurbished and Tested. This distinction matters for legacy ABB hardware. Current market listings show both new-stock claims and refurbished units, so the seller’s condition statement should be confirmed with actual photographs and the module’s nameplate/revision.
