ABB DCF803-0035 35A External Field Exciter Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

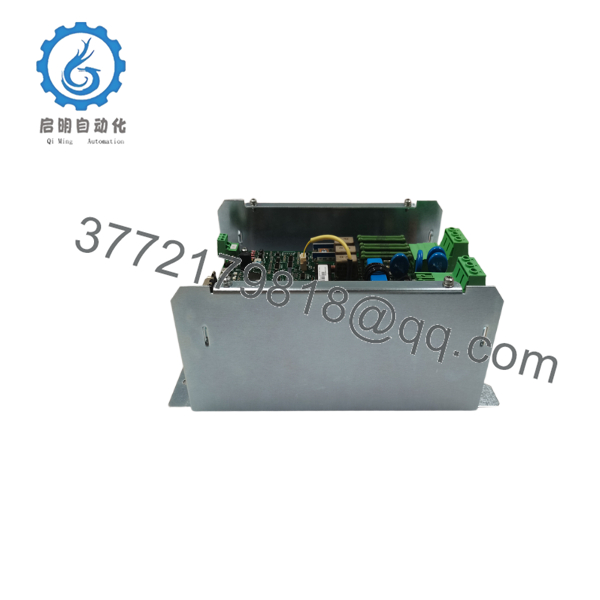

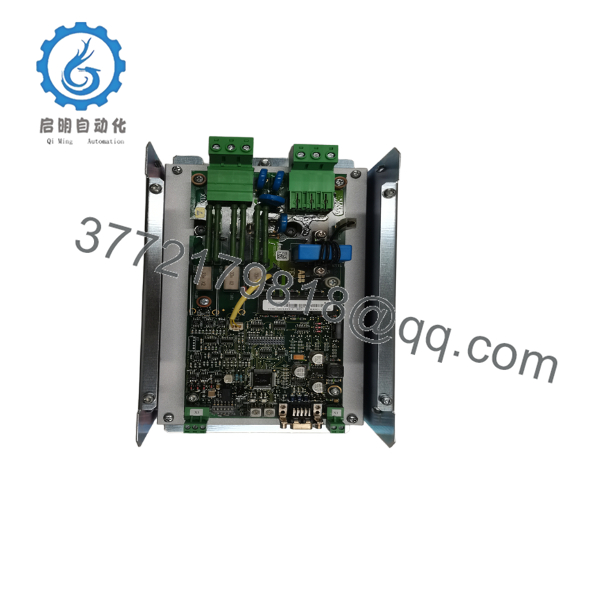

The ABB DCF803-0035 (3ADT209023R0001) is an external 3-phase field exciter module built for precise current regulation in DC motor field circuits. Operating on a 110–500 V AC line input, it delivers up to 35 A output current, interfacing directly with ABB DCS800 drives or standalone process controllers to maintain motor field flux.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Refurbished field exciters frequently harbor thermal stress damage on thyristor/diode bridges or dried-out snubber capacitors. A failure in the field exciter causes an immediate loss of motor field flux, leading to motor overspeed trips or high armature current spikes that collapse main breakers. Stocking a New Surplus unit secures immediate swap-in availability, lowering Total Cost of Ownership (TCO) and eliminating multi-week vendor backorders.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO) on the incoming 3-phase AC supply line (110–500 V AC) and isolation breakers feeding the DC drive system.
2. Wear a grounded ESD wrist strap before handling internal wiring and signal connectors.
3. Verify panel mounting space inside the enclosure for natural convection clearance (minimum 100 mm top and bottom).
4. Photograph and label incoming AC phase lines (U1, V1, W1), DC field output leads (F+, F-), and field control feedback wiring.

Stage 2: Removal

1. Unbolt the power wiring terminals for 3-phase AC input and DC output connections.
2. Disconnect the control ribbon interface or field feedback bus connector from the drive controller.
3. Loosen the panel-mounting screws holding the open-frame IP00 chassis to the cabinet backplate and lift the module out.

Stage 3: Installation (Clone & Seat)

1. Mount the new DCF803-0035 securely onto the panel backplate using M5/M6 mounting hardware.
2. Connect the dedicated protective earth (PE) ground lead directly to the chassis ground stud before landing any power leads.
3. Reattach the AC supply lines, DC field terminals (F+, F-), and internal drive control cable to the terminal blocks.

Stage 4: Power-On & Testing

1. Measure input phase-to-phase voltages to confirm balanced power between 110 V AC and 500 V AC.
2. Apply power and verify the DCS800 drive controller recognizes the field exciter handshake.
3. Measure field output current with a calibrated DC clamp meter during initial motor field energization to verify it tracks the 0–35 A setpoint smoothly.

DCF803-0035

DCF803-0035

Firmware/Software Versions & Upgrade Notes

• System Integration: Compatible with ABB DCS800 drive firmware parameter structures (specifically Field Supply parameter group 45/103).
• Control Handshake: When replacing a field exciter, verify that parameter settings for field current limit (e.g., FldCurrMax) match the motor nameplate field rating (≤ 35 A).
• Re-Commissioning Hazard: Do not auto-tune the field current loop while the motor is under heavy mechanical load. Always execute field current tuning or parameter verification under un-coupled or safe static conditions to prevent voltage spikes.

Frequently Asked Questions (FAQ)

Is this DCF803-0035 module brand new or pulled from old equipment?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. Every unit undergoes live electrical verification and signal checking before shipment to guarantee original factory performance.

Why choose New Surplus over a cheaper refurbished field exciter?

Refurbished field exciters often retain worn power semiconductors and thermal grease that has dried out over years of operation. While a used board might save a small amount upfront, a field exciter failure during full-load motor operation can cause dangerous motor overspeed conditions and catastrophic mechanical damage. New Surplus offers a full 10–15 year operating lifespan and 100% peace of mind.

Can the DCF803-0035 operate on a single-phase AC input?

While natively designed for 3-phase 110–500 V AC lines, single-phase operation is possible when using an autotransformer for voltage adaptation as outlined in ABB installation guidelines. Output current derating must be applied for single-phase setups.

Can I disconnect field wiring while the module is energized?

No. Never disconnect field leads (F+, F-) while power is applied. Opening a highly inductive DC field circuit under load generates extreme high-voltage inductive kickback (flyback voltage) that can instantly destroy the module’s thyristors and damage insulation.

How does the module handle thermal protection?

The open-frame IP00 assembly relies on natural convection cooling through cabinet airflow. Internal current sensing monitors thermal loading; ensure cabinet internal temperature stays within 0°C to +40°C to maintain full 35 A rated output without derating.

What warranty and documentation are provided with this unit?

All New Surplus ABB DCF803-0035 field exciters ship in anti-static protective packaging with factory serial numbers, QC inspection certification, and a full 1-year operational warranty.
