ABB DI650 32-Channel 24V DC Digital Input Card

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The ABB DI650 (3BHT300025R1) is a high-density 32-channel digital input module designed for ABB S600 I/O racks connected to Advant Controller 110/160 systems. Featuring 24 V DC opto-isolation grouped into 4 independent banks, it provides fast pulse catching and Sequence of Events (SOE) registration to capture precise contact transitions during plant trip events.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Installing refurbished input cards in critical DCS racks presents severe risks: degraded optocouplers often cause input signal chatter, failed group isolation, or complete loss of SOE timestamping during an emergency shutdown. A single unrecorded trip event can extend downtime by hours while engineers troubleshoot blind. Securing genuine New Surplus inventory guarantees zero component degradation, original 1,500 V isolation integrity, and reliable operational life across mature Advant architectures.

DI650

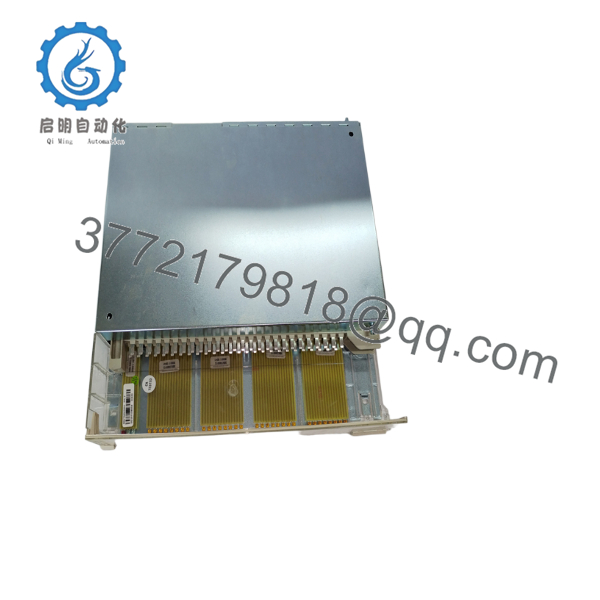

DI650

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full Lock-Out/Tag-Out (LOTO) procedures on cabinet field power and S600 rack power feeds.
2. Put on a grounded ESD wrist strap connected to the enclosure chassis ground before touching the module.
3. Record all channel wiring designations, terminal assignments, and card slot positions on the S600 backplane.
4. Inspect the rear edge connectors and backplane slot for debris or physical pin distortion.

Stage 2: Removal

1. Unplug the front field terminal connector blocks from the DI650 faceplate.
2. Unfasten the top and bottom retaining screws securing the card to the S600 rack chassis.
3. Slide the card straight outward along the guide slots to prevent twisting or mechanical stress on backplane interface connectors.

Stage 3: Installation (Clone & Seat)

1. Verify address jumper or DIP switch positions on the new DI650 to match the configuration of the card being replaced.
2. Align the module with the card guides of the S600 slot and push it smoothly inward until the rear pins seat completely into the backplane connector.
3. Hand-tighten the upper and lower panel mounting screws to 0.6 N·m.
4. Reconnect the 32-channel field wiring terminal blocks and lock them into place.

Stage 4: Power-On & Testing

1. Confirm the 24 V DC field loop supply measures between 20.4 V DC and 28.8 V DC at the field terminals.
2. Power up the S600 rack and observe the front panel LEDs: confirm the Run indicator illuminates green and the Fault LED remains off.
3. Toggle a field contact on a test channel and verify the corresponding front-panel channel LED responds instantly.
4. Verify channel status and SOE event logging through Advant station engineering tools or system diagnostic software.

Firmware/Software Versions & Upgrade Notes

• System Compatibility: Fully compatible with ABB Advant Controller 110 and 160 systems utilizing Master Software and S600 I/O subsystems.
• SOE Buffer Setup: Verify that channel filter times and SOE registration settings in the software database match the plant’s event-recording parameters.
• Firmware Notes: Swapping an existing DI650 card with identical hardware revisions requires no software recompilation or firmware modifications. Always ensure rack backplane power is off before inserting or extracting the module to avoid corrupting active memory buffers.

Frequently Asked Questions (FAQ)

Is this DI650 module genuine new stock or refurbished?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. Every board undergoes complete electrical testing, optocoupler channel verification, and power-on diagnostics prior to shipment.

Why is New Surplus preferred over refurbished modules for Advant DCS racks?

Refurbished I/O cards often contain aged optical isolators and power components that have endured thousands of hours of high thermal stress inside active cabinets. Buying a refurbished card risks signal latency, intermittent channel dropouts, and sudden total failure. New Surplus delivers original factory reliability and full 10–15 year operational service life.

Are all 32 channels on the DI650 isolated individually?

The 32 digital input channels are opto-isolated in 4 distinct groups of 8 channels. This provides electrical isolation between separate field power zones while maintaining dense I/O packaging.

Does the DI650 support Sequence of Events (SOE) time-stamping?

Yes. The DI650 includes dedicated onboard hardware logic for high-speed pulse catching and SOE event recording, allowing the host Advant system to pinpoint precise event order down to millisecond accuracy.

Is the DI650 still actively produced by ABB?

The DI650 and the surrounding S600 I/O family are in mature/legacy lifecycle phases. Sourcing New Surplus units is critical for facilities relying on Advant controllers to maintain reserve stock and prevent expensive control system migration projects.

What warranty and documentation are provided with this module?

All New Surplus ABB DI650 3BHT300025R1 modules ship in anti-static ESD packaging with individual serial verification tags, a QC test sign-off report, and a full 1-year operational replacement warranty.
