3. Key Technical Specifications
- Input Type: Single-channel frequency input from magnetic pickup
- Frequency Range: 0 Hz to 10 kHz
- Accuracy: 0.05% of full scale (or ±0.25 Hz for 1 Hz to 5 kHz per field data)
- Resolution: 0.1 Hz
- Update Rate: 100 ms
- Input Voltage Range: 300 mVp-p to 120 Vrms
- Power Requirements: +5 V, ±15 V (typical Harmony rack supply)
- Microprocessor: MC68701 based processing
- Mounting: Plugs into Infi 90 module mounting unit
- Operating Temperature: Standard industrial range (verify with specific rack)
- Dimensions: Approx. 17.8 x 5.1 x 33.0 cm (module envelope)
- Weight: 0.3 kg
4. Product Introduction

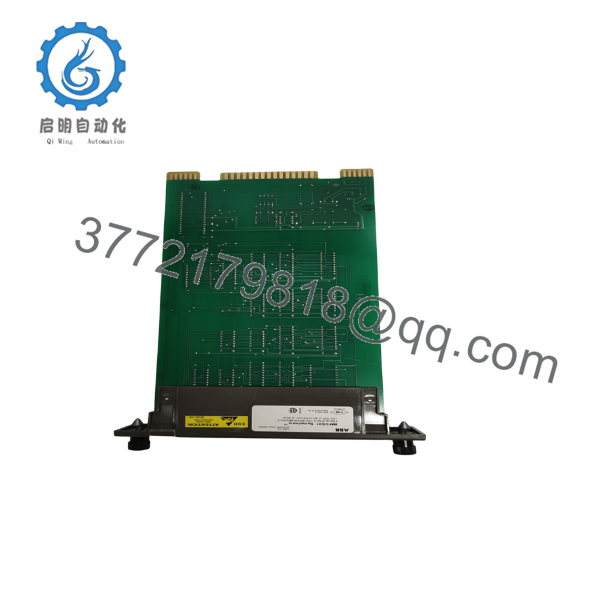

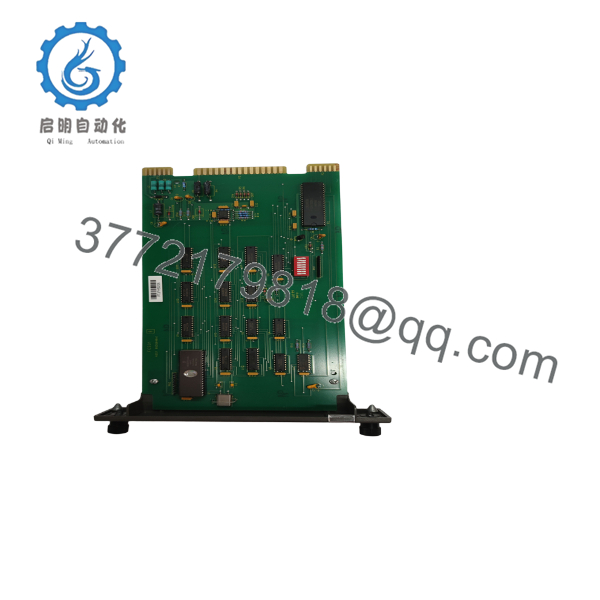

The ABB IMFCS01 is a Frequency Counter Slave Module designed for the Infi 90 and Harmony distributed control systems. It conditions, converts, and processes pulse inputs, typically from a magnetic pickup on steam or gas turbines, to provide accurate speed or frequency measurement to the controller.
In field use on turbine control applications, this module delivers reliable pulse counting with fast update rates. Engineers choose it for its direct compatibility with existing Infi 90 racks and proven performance in continuous process environments where precise frequency monitoring prevents overspeed or under-speed trips.
- IMFCS01
- IMFCS01
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No frequency reading in controller | Input signal absent or wiring issue | ✅ High | Measure AC voltage at input terminals with oscilloscope or multimeter in AC mode | Verify magnetic pickup output and cabling before replacing module |
| Erratic or unstable counts | Noise on input or poor shielding | ✅ High | Check input waveform for clean pulses; measure insulation resistance | Ensure proper shielding and grounding; add filtering if needed |
| Module LEDs not responding or comms fault | Backplane power or slot issue | ❌ Medium | Confirm rack power supply voltages at module pins | Check power supply and rack connections first |
| Frequency value stuck at zero | Pickup failure or module input circuit fault | ✅ High | Swap with known good pickup or test input with signal generator | Replace IMFCS01 if input conditioning fails diagnostics |
| Intermittent counts during operation | Loose terminal connections or vibration | ❌ Low | Inspect and reseat field wiring terminals | Tighten connections and secure module in rack |
Contact technical support with photos of the module LEDs, diagnostic logs from the controller, and field wiring details if issues persist after these checks.
6. Frequently Asked Questions (FAQ)
Is the IMFCS01 hot-swappable? No. Kill power to the rack before removing or installing. Hot-swapping risks backplane damage or module failure in Infi 90 systems.
What is the condition of this unit? This is offered as New Original / New Surplus. It comes from factory-sealed or verified unused stock with full traceability.
Will this work as a direct replacement for an older IMFCS01? Yes in most cases. Match firmware and configuration. Take photos of existing DIP switches or jumpers before removal and duplicate them exactly.
Can I use this with non-ABB systems? No. It is engineered specifically for ABB Infi 90 / Harmony I/O racks and controllers. Verify compatibility with your system drawings.
How do I confirm the firmware or revision? We document the current firmware version during testing and include it in the test report. Request details before ordering if you have specific revision requirements.
What testing do you perform before shipping? We run inbound visual and traceability checks, power-on self-test in a live Infi 90 rack simulation, communication handshakes, input signal simulation across the frequency range, and a minimum 24-hour load test. Insulation and continuity tests are also performed. Full test report and photos available on request.
What is the warranty and lead time? 1-year warranty on New Surplus units. Most stock ships same or next business day. Confirm current availability for your quantity.
