ABB KUC321AE Industrial Power Supply Module

Description

3. Key Technical Specifications

Engineering Note: ABB has released limited official public documentation for the KUC321AE. The specifications below combine verified identification data with information consistently reported across industrial suppliers. Always verify the exact hardware revision and ordering number before installation.

4. Product Introduction

The ABB KUC321AE (HIEE300698R1) is an industrial power supply module used in ABB drive control and generator excitation systems. Its primary function is to provide stable, regulated DC power for processor boards, communication interfaces, and other control electronics within the cabinet. Reliable power delivery is essential because voltage instability can lead to controller resets, communication faults, or unexpected drive trips.

The KUC321AE is commonly found in ABB medium-voltage drives, rolling mill drives, and generator excitation cabinets. Since many installations have been operating for years, engineers should verify the ordering number, hardware revision, and electrical ratings before replacing the module to ensure compatibility with the existing system.

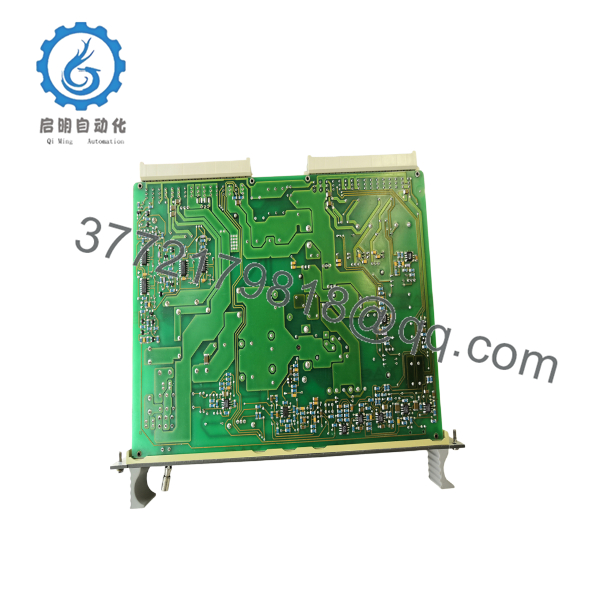

KUC321AE

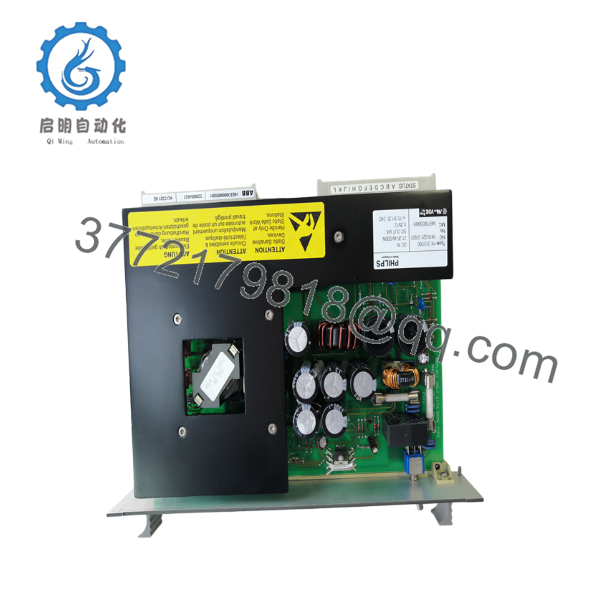

KUC321AE

5. Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (10–15 minutes)

⚠️ Safety First

1. Notify operations of the planned shutdown.
2. Apply Lock-Out/Tag-Out procedures.
3. Isolate all incoming control power.
4. Wait at least 5 minutes for DC bus capacitors to discharge.
5. Confirm zero voltage using a calibrated multimeter.

Required Tools

• ESD wrist strap
• Digital multimeter
• Insulated screwdrivers
• Torque screwdriver
• Camera for documenting wiring

Before Removal

• Photograph every terminal connection.
• Record the complete ordering number.
• Inspect cabinet labels for voltage ratings.
• Check surrounding modules for heat damage.

Stage 2 – Removing the Existing Module

1. Disconnect the incoming power cables.
2. Label every wire before removal.
3. Remove mounting hardware.
4. Withdraw the module carefully without stressing adjacent wiring.
5. Inspect connectors for discoloration or loose contacts.

⚠️ Do not discard the original module until the replacement has successfully completed functional testing.

Stage 3 – Installing the Replacement Module

1. Verify the replacement is KUC321AE (HIEE300698R1).
2. Compare the hardware revision with the original unit.
3. Install the module securely.
4. Reconnect all power and signal wiring.
5. Tighten terminals to the specified torque.
6. Inspect for proper cable routing and grounding.

Installation Checklist

• ✔ Correct ordering number
• ✔ Power wiring verified
• ✔ Ground connection secure
• ✔ Module firmly mounted
• ✔ Cabinet free of loose hardware

Stage 4 – Power-On & Functional Testing

1. Restore control power.
2. Observe the module’s startup behavior.
3. Measure output voltage under no-load conditions.
4. Verify voltage remains stable under operating load.
5. Confirm all connected control modules initialize correctly.
6. Monitor the system for at least 30 minutes for voltage alarms or communication faults.

⚠️ Troubleshooting

No output voltage

• Verify incoming DC supply.
• Inspect input protection devices.
• Check terminal connections.

Intermittent controller resets

• Measure output voltage during load changes.
• Inspect the backplane connectors.
• Verify the power supply capacity matches the system load.

Excessive module temperature

• Check cabinet ventilation.
• Inspect cooling airflow.
• Measure total power consumption of connected devices.

6. Frequently Asked Questions (FAQ)

Q1. What is the primary function of the KUC321AE?

The KUC321AE supplies regulated DC power to ABB control electronics used in drive and excitation systems. Stable power is critical for maintaining controller operation and reliable communication between system components.

Q2. Is the KUC321AE used in ABB drive systems or excitation systems?

It is found in both applications, depending on the equipment configuration. Many installations use the KUC321AE within ABB drive control cabinets and generator excitation systems. Always verify compatibility using the equipment documentation and ordering number.

Q3. Can the KUC321AE be replaced while the cabinet is energized?

No. Power supply modules should never be replaced under load unless the manufacturer explicitly specifies hot-swapping capability. Removing the module while energized can damage both the module and connected control electronics.

Q4. What is the most common field replacement mistake?

The most common mistake is replacing the module based only on the KUC321AE designation while overlooking the complete ordering number (HIEE300698R1 or legacy revision). Different hardware revisions may have mechanical or electrical differences that affect compatibility.

Q5. Why should the output voltage be measured before returning the system to service?

I’ve seen replacement projects where the module powered up normally, but the output voltage sagged under load because of a deteriorated connector rather than a faulty power supply. Measuring both unloaded and loaded output voltage helps identify these hidden issues before they cause intermittent controller failures.

Q6. Is the KUC321AE still available?

The KUC321AE is considered a legacy ABB component. Availability generally comes from new surplus inventory or professionally tested refurbished stock rather than current production. Before purchasing, verify the exact ordering number, hardware revision, and application to ensure compatibility with your installed drive or excitation system.
