ABB KUC711AE Power Supply Factory Sealed Gate Unit Power Card

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

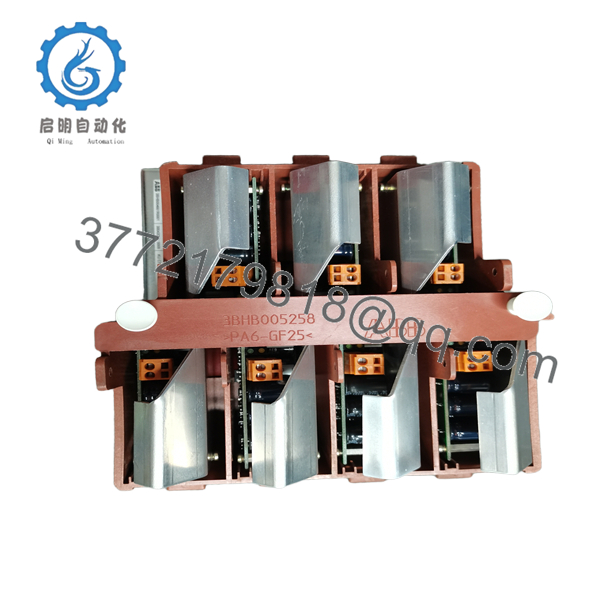

The ABB KUC711AE (3BHB004661R0001 / 3BHB004661R0101) is a specialized Gate Unit Power Supply (GUSP) module engineered for ABB’s medium-voltage drive platforms, including the ACS1000 and ACS6000 series. Installed within the drive power electronics building block (PEBB), the KUC711AE generates precise, galvanically isolated power needed to fire and maintain the IGCT gate units controlling high-power semiconductor switching.

This unit is offered as Brand New Surplus stock—never deployed, pulled from decommissioned drives, or rebuilt. Utilizing refurbished or aging power supply modules in medium-voltage drives presents severe operational risks. Over time, electrolytic capacitors dry out and transformer insulation degrades under high dV/dt stress, causing output voltage ripple or unexpected gate voltage dropouts. If a gate unit loses power mid-operation, an IGCT can misfire or fail to turn off cleanly, resulting in a short-circuit shoot-through across the phase leg. Such a failure destroys expensive IGCT semiconductors and causes severe, unscheduled plant downtime. Installing a verified New Surplus KUC711AE ensures clean gate drive power, preserves drive efficiency, and secures long-term operating stability.

Installation & Configuration Guide

Stage 1: Pre-Installation & Safety

1. Perform full Lock-Out/Tag-Out (LOTO) on the main medium-voltage circuit breaker and auxiliary 24 V / 230 V cabinet control feeds.
2. Mandatory Safety Wait: Allow the drive’s main DC-link capacitors to fully discharge (minimum 15–20 minutes). Verify zero voltage across DC link terminals using a certified high-voltage meter before opening PEBB doors.
3. Wear a grounded ESD wrist strap connected to cabinet ground before unboxing the replacement KUC711AE board.

Stage 2: Removal

1. Unplug input power feeds and internal gate supply harness connectors attached to the module faceplate.
2. Unfasten retaining screws securing the KUC711AE module chassis to the drive frame assembly.
3. Carefully slide the module out along its guide tracks, taking care not to strain adjacent fiber-optic gate channels or cooling conduits.

Stage 3: Installation

1. Inspect the new KUC711AE unit to ensure all internal subboards (e.g., HB003688 series) and connector pins are fully seated and undamaged.
2. Align the module with the guide rails in the PEBB cabinet and push it firmly into position until it seats flush against the backplane.
3. Tighten all chassis retaining screws to secure the unit against vibration.
4. Reattach all power harnesses and interface cabling, ensuring locking tabs click firmly into place.

Stage 4: Power-On & Testing

1. Re-energize auxiliary control power before applying medium-voltage main power.
2. Observe status LEDs on the drive controller and gate units to confirm correct logic voltage initialization and zero gate-fault alarms.
3. Perform a low-voltage gate test routine via the drive display panel to confirm clean IGCT triggering across all inverter phases.

KUC711AE

Firmware/Software Versions & Upgrade Notes

• Direct Hardware Replacement: The KUC711AE / 3BHB004661R0001 acts as a hardware-transparent power supply module. Replacing the unit does not require software downloads or parameter re-indexing in the drive control unit (AMC34 / Main Control Board).
• Part Revision Compatibility: Part ID 3BHB004661R0101 (KUC711AE101) directly replaces older revisions such as 3BHB004661R0001, 3BHB003295R0001, and 3BHB002433R0001. Always verify physical footprint and subboard configuration during maintenance retrofits.

Frequently Asked Questions (FAQ)

Is this ABB KUC711AE module brand new or refurbished?

This product is supplied as Brand New Surplus. It is guaranteed unused, fully intact, and thoroughly inspected prior to dispatch.

What is the primary function of the KUC711AE in an ACS1000 drive?

The KUC711AE functions as the main Gate Unit Power Supply (GUSP). It delivers stable, isolated power to the individual gate driver units that switch the main IGCT power semiconductors.

What happens if the gate unit power supply fails during operation?

A failure or voltage drop on the gate unit supply prevents IGCTs from switching properly, causing immediate drive fault trips, phase imbalances, or potential semiconductor destruction.

Are 3BHB004661R0001 and 3BHB004661R0101 interchangeable?

Yes, 3BHB004661R0101 is the updated functional replacement revision for 3BHB004661R0001. Both belong to the KUC711AE gate unit power supply series.

What documentation and warranty accompany this module?

All New Surplus ABB KUC711AE modules ship in protective anti-static ESD packaging with factory serial tags, QC inspection documentation, and a full 1-year operational replacement warranty.
