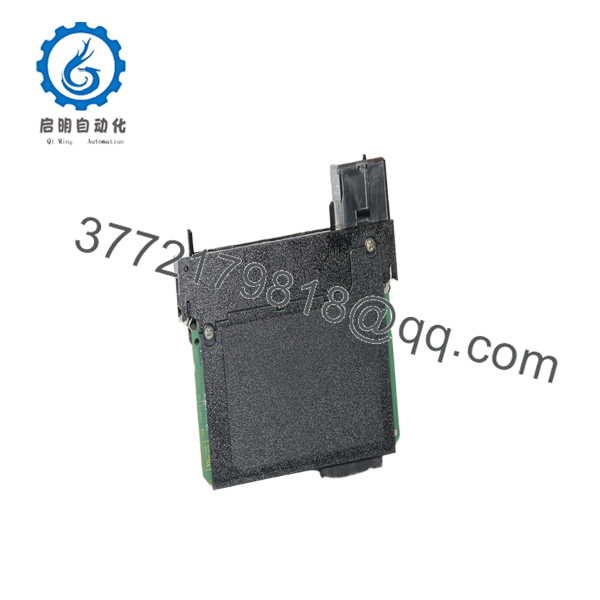

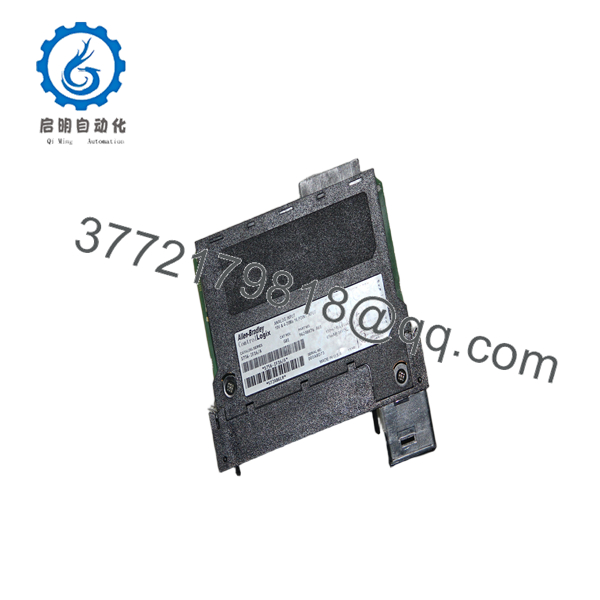

Allen-Bradley 1756-IF16 ControlLogix 16-Point Analog Input Module

  • Model: 1756-IF16
  • Brand: Allen-Bradley (Rockwell Automation)
  • Series: ControlLogix
  • Core Function: Acquire analog voltage and current process signals
  • Product Type: Analog Input Module
  • Key Specs: 16 analog inputs, Voltage/Current configurable, 16-bit Sigma-Delta conversion
  • Condition: New Original / New Surplus
Get a Quote
Categories: , , , , SKU: 1756-IF16 Brand:

Description

Key Technical Specifications

Parameter Value
Product Type Analog Input Module
Manufacturer Allen-Bradley / Rockwell Automation
Model Number 1756-IF16
Product Series ControlLogix
Number of Input Channels 16
Supported Input Signals 0–20.5 mA, 0–5.125 V, 0–10.25 V, ±10.25 V
Resolution 16-bit
A/D Conversion Sigma-Delta
Isolation 250 V continuous, inputs-to-backplane (no channel-to-channel isolation)
Data Format Integer or IEEE 32-bit Floating Point
Module Keying Electronic, software configurable
Removable Terminal Block 1756-TBCH or 1756-TBS6H
Current Draw Approximately 250 mA @ 5.1 V DC, 100 mA @ 24 V DC
Operating Temperature 0 to 60 °C
Storage Temperature −40 to 85 °C
Relative Humidity 5–95% non-condensing

The 1756-IF16 is an active ControlLogix analog input module supporting sixteen voltage or current inputs. It provides 250 V reinforced isolation between the field inputs and the backplane, while individual channels share a common analog reference rather than being individually isolated.



Product Introduction

The Allen-Bradley 1756-IF16 is a ControlLogix 16-channel analog input module designed for monitoring industrial process signals from transmitters, pressure sensors, flow meters, temperature transmitters, level instruments, and analyzers. It accepts both current and voltage inputs and converts them using a 16-bit Sigma-Delta analog-to-digital converter for integration into the Logix controller.

In production systems, the 1756-IF16 is commonly installed where high channel density is more important than individual channel isolation. Compared with the 1756-IF6I or 1756-IF8I, it accommodates more field instruments within a single chassis slot while reducing rack space requirements.

1756-IF16

1756-IF16

1756-IF16

1756-IF16

Installation & Configuration Guide



Stage 1 – Pre-Installation Preparation (Estimated Time: 10 Minutes)

⚠️ Safety First

  1. Notify operations of the planned shutdown.
  2. Place the process in a safe operating condition.
  3. Apply lockout/tagout procedures.
  4. Remove ControlLogix chassis power.
  5. Wait at least 5 minutes before opening the enclosure.

Tools Required

  • Grounded ESD wrist strap
  • PH1 screwdriver
  • Fluke 115 digital multimeter
  • 4–20 mA loop calibrator
  • Wire identification labels
  • Smartphone for documenting wiring

Data Backup

  1. Upload the Studio 5000 project.
  2. Record all analog channel configurations.
  3. Photograph every field wiring connection.
  4. Document scaling parameters and engineering units.
  5. Record firmware revision and electronic keying settings.



Stage 2 – Removing the Old Module (Estimated Time: 10 Minutes)

  1. Verify chassis power is OFF.
  2. Remove the removable terminal block.
  3. Label every field cable.
  4. Release the module locking tabs.
  5. Pull the module straight out.
  6. Inspect the chassis connector and RTB contacts.

⚠️ Retain the original module until the replacement has successfully completed commissioning.



Stage 3 – Installing the New Module (Estimated Time: 15 Minutes)

  1. Wear a grounded ESD wrist strap.
  2. Verify the replacement catalog number is 1756-IF16.
  3. Install the module firmly into the chassis.
  4. Reinstall the removable terminal block.
  5. Restore all field wiring according to the photographs.
  6. Configure each channel for the proper voltage or current range.
  7. Verify firmware compatibility and electronic keying.

Self-Checklist

  • Correct catalog number
  • Module fully seated
  • RTB securely latched
  • Wiring verified
  • Channel configuration restored



Stage 4 – Power-On & Testing (Estimated Time: 20 Minutes)

Pre-Power Checks

  • Verify instrument power supplies.
  • Measure loop voltage.
  • Confirm analog wiring polarity.
  • Verify shield termination.

Commissioning Steps

  1. Energize the ControlLogix chassis.
  2. Verify the Module Health LED.
  3. Open Studio 5000.
  4. Confirm the module is recognized.
  5. Inject calibrated analog signals into each channel.
  6. Verify engineering values.
  7. Return the controller to RUN mode.

⚠️ Troubleshooting Notes

  • Module Fault LED: Verify firmware compatibility and electronic keying.
  • Incorrect analog values: Confirm the channel is configured for the correct input type.
  • Noise or unstable readings: Verify shield grounding and separate analog wiring from VFD power cables.
  • Multiple channel errors: Inspect the removable terminal block before replacing the module.

Common Field Pitfalls

❗ Firmware Revision Mismatch

A replacement module may fail electronic keying if firmware revisions differ. Before removing the original module, document its firmware revision and keying configuration.

❗ Differential vs. Single-Ended Configuration

This catches experienced technicians as well as new ones. The 1756-IF16 can operate as 16 single-ended inputs or 8 differential inputs, but it cannot mix both modes on the same module. Plan your I/O allocation before installation. Community experience confirms this limitation during ControlLogix migrations.

❗ Current vs. Voltage Selection

Connecting a 4–20 mA transmitter to a channel configured for voltage input produces incorrect readings that often resemble hardware failure. Verify every channel configuration before energizing the system.

❗ Shared Analog Common

Unlike the 1756-IF6I, the 1756- does not provide channel-to-channel isolation. Be aware of shared analog return paths when instruments are powered from different supplies or installed over long cable runs.

❗ Electrostatic Discharge

The analog front-end circuitry is sensitive to static electricity. Handle the module only by its edges while wearing a grounded ESD wrist strap.

Keep these checks in mind and you’ll avoid most analog commissioning issues before production resumes.



Frequently Asked Questions (FAQ)

Q1. Is the Allen-Bradley 1756- still an active product?

Yes.

The remains an active ControlLogix product supported by Rockwell Automation. It includes firmware downloads, repair services, certifications, and a standard 1-year warranty.

Q2. Does every input channel have electrical isolation?

No.

The module provides 250 V reinforced isolation between the field wiring and the ControlLogix backplane, but individual input channels are not isolated from one another. If channel-to-channel isolation is required, consider modules such as the 1756-IF6I or 1756-IF8I.

Q3. Can I mix current and voltage inputs?

Yes.

Each channel can be configured for current or voltage measurements. However, the module cannot simultaneously mix single-ended and differential wiring modes. Field engineers frequently encounter this limitation during SLC-to-ControlLogix migrations.

Q4. Will replacing the module erase my PLC program?

No.

The ControlLogix controller stores the application program. Replacing the analog input module does not affect controller memory. Even so, always back up the Studio 5000 project and document channel configuration before maintenance.

Q5. Why is New Surplus inventory priced below OEM distribution?

New Surplus modules generally originate from canceled automation projects, unused maintenance inventory, or plant modernization programs. Lower pricing reflects inventory sourcing rather than reduced functionality. Verify serial numbers, inspection records, firmware revision, and warranty coverage before purchasing.

Q6. How is each 1756- inspected before shipment?

Every module should complete a documented inspection procedure:

  1. Inbound Inspection & Traceability
    • Verify OEM labels and serial numbers.
    • Inspect connectors, enclosure, and PCB.
    • Check for corrosion, scratches, repairs, and UV discoloration.
  2. Functional Testing
    • Install the module in a genuine ControlLogix chassis.
    • Verify LED startup sequence.
    • Test all 16 analog channels using calibrated voltage and current sources.
    • Perform continuous operation for more than 24 hours while monitoring measurement stability.
  3. Electrical Testing
    • Insulation resistance test using a 500 V Megger.
    • Ground continuity verification.
    • Analog input verification.
  4. Firmware & Configuration Verification
    • Record firmware revision.
    • Verify hardware revision.
    • Confirm electronic keying compatibility.
  5. Final QC & Packaging
    • QC inspector approval.
    • Anti-static ESD packaging.
    • Heavy-duty corrugated shipping carton.
    • QC Passed label with inspection date.

Test reports, calibration records, photographs, and functional test videos should be available upon request.

Q7. What should I verify before installing a replacement 1756-?

Before commissioning, verify:

  • Exact catalog number ()
  • Firmware revision
  • Electronic keying
  • Voltage/current channel configuration
  • Differential or single-ended operating mode
  • RTB wiring
  • Shield grounding
  • Chassis power capacity

From practical commissioning experience, most analog input problems result from configuration errors, grounding issues, or wiring mistakes rather than a defective module. Taking photographs of the original wiring and documenting every channel configuration before replacement typically reduces troubleshooting time considerably.
