3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Number of Inputs | 8 differential (voltage or current) |
| HART Support | 1 HART modem per module |
| Input Ranges | ±10 V, 0…5 V, 1…5 V, 0…10 V, 0…20 mA, 4…20 mA |
| Resolution | 16…21 bits |
| Backplane Current @ 5.1 V DC | 300 mA |
| Backplane Current @ 24 V DC | 135 mA |
| Total Backplane Power | 4.77 W |
| Power Dissipation | 3.21 W (voltage) / 4.01 W (current) |
| Calibrated Accuracy | Voltage: better than 0.05–0.1 % of range; Current: better than 0.15–0.3 % of range |
| Open Circuit Detection | Positive full scale within 5 s |
| Overvoltage Protection | Voltage: 30 V DC; Current: 8 V DC |
| Normal Mode Rejection | > 80 dB @ 50/60 Hz |
| Common Mode Rejection | > 100 dB @ 50/60 Hz |
| Removable Terminal Block | 1756-TBCH or 1756-TBS6H |
| Operating Temperature | 0 °C to +60 °C |
4. Product Introduction
The Allen-Bradley 1756-IF8H is an 8-channel differential analog input module for ControlLogix systems that combines high-resolution voltage/current measurement with HART protocol support. A single HART modem is shared across the module, allowing digital communication with HART-capable field transmitters while the analog process variable is still available.
Supported ranges include ±10 V, 0–5 V, 1–5 V, 0–10 V, 0–20 mA, and 4–20 mA. Resolution ranges from 16 to 21 bits depending on filter settings. The module is commonly used in process applications where both the 4–20 mA signal and HART device variables, status, or diagnostics are required without external multiplexers.

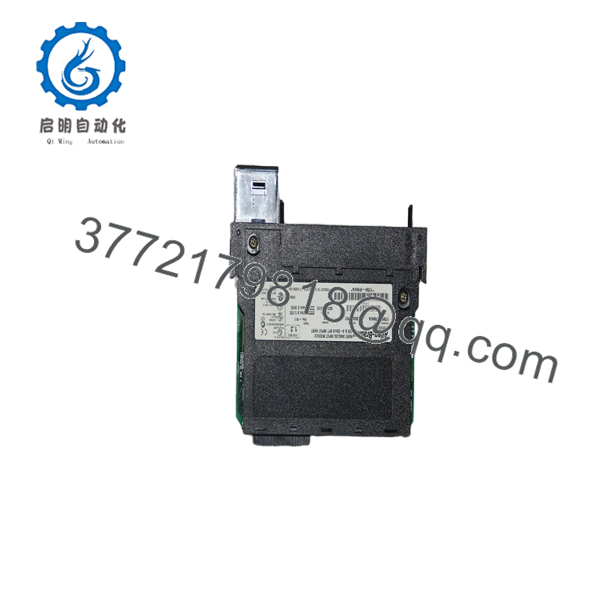

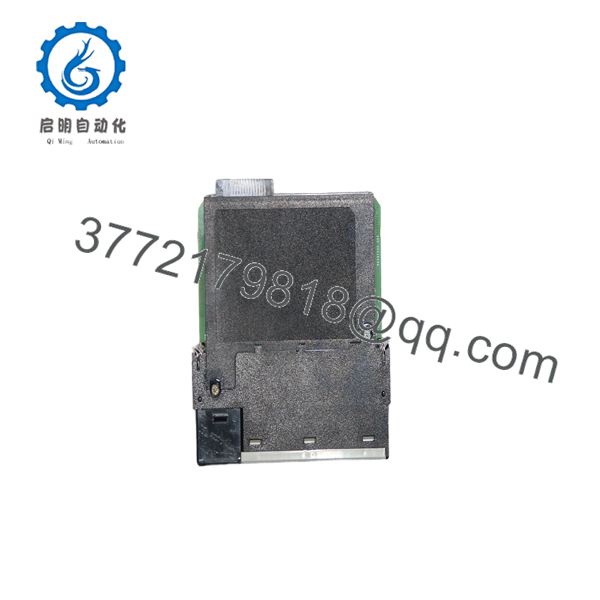

1756-IF8H
1756-IF8H

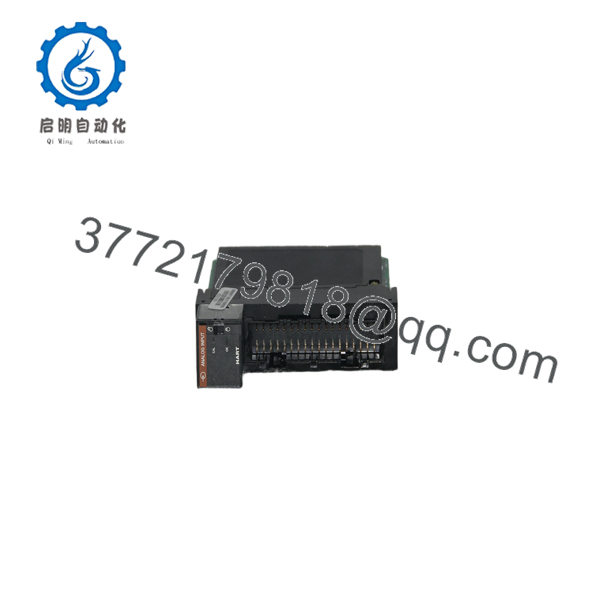

1756-IF8H
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Channel reading full scale / open | Open field wiring or failed transmitter | ✅ High | Check open-circuit detection status and field loop | Repair wiring or replace transmitter |
| No HART communication | HART not enabled or modem busy | ✅ High | Verify HART enable bits and scan time in configuration | Enable HART on required channels; allow scan time |
| Inaccurate analog reading | Wrong range selected or calibration due | ✅ High | Confirm input range and last calibration date | Select correct range; perform calibration |
| Module OK LED off / faulted | Backplane power or configuration error | ❌ Medium | Verify chassis power and module properties in Studio 5000 | Reseat module; correct configuration |
| High noise on readings | Poor shielding or filter setting too high | ✅ Medium | Check cable shielding and reduce filter frequency | Improve grounding; adjust digital filter |
| Slow HART updates | Multiple channels with HART enabled | ✅ Medium | Count enabled HART channels | Disable HART on unused channels |
If diagnostics remain unclear, capture channel status tags, HART secondary variables, and field loop measurements before contacting support.
6. Frequently Asked Questions (FAQ)
Q: Is the 1756-IF8H still in production? Yes. HART-enabled analog modules remain active in the ControlLogix portfolio.
Q: How many HART devices can the 1756-IF8H talk to at once? The module has one shared HART modem. It can communicate with HART devices on any of the eight channels, but only one HART transaction occurs at a time. Typical update time is about 1 second per enabled HART channel.
Q: Can I use voltage and current inputs on the same module? Yes. Each channel is independently configurable for voltage or current ranges.
Q: What is the difference between 1756-IF8H and 1756-IF8IH? The IF8H has non-isolated differential channels with one shared HART modem. The IF8IH provides channel-to-channel isolation and a HART modem per channel.
Q: What terminal blocks are required? Use a 36-position Removable Terminal Block: 1756-TBCH (screw-clamp) or 1756-TBS6H (spring-clamp).
Q: Does the module support HART 7? Yes. It is compatible with HART revisions 5, 6, and 7.
Q: Why is New Surplus sometimes priced lower? These are genuine Allen-Bradley modules from excess inventory or cancelled projects. They are unused and typically supplied with anti-static protection. They are not refurbished unless specifically stated.
