Allen-Bradley 1768-L43 CompactLogix L43 2MB Motion Controller

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The Allen-Bradley 1768-L43 is a CompactLogix L43 system processor designed for demanding motion applications, machine tools, and high-speed packaging lines. It features a dual-bus architecture that connects high-speed 1768 motion and communication modules on the left and standard 1769 Compact I/O modules on the right.

Because the 1768 platform occupies a specialized operational niche, sourcing genuine New Surplus modules is critical to avoiding long, expensive control-system retrofits. Refurbished 1768-L43 units carry serious operational hazards; aged memory capacitors, degraded internal power rails, and worn backplane bus drivers can trigger random motion faults and watchdog timeouts during coordinated multi-axis moves. Acquiring verified New Surplus preserves original execution speeds, ensures reliable axis synchronization, and delivers a much lower Total Cost of Ownership by eliminating emergency engineering redesigns.

Installation & Configuration Guide

1.Pre-Installation (Prep & Safety):Safety warning: Isolate power supplies for both 1768 chassis and field devices.

Execute full Lock-Out/Tag-Out (LOTO) protocols on the incoming line feeder for the 1768-PA3/PB3 power supply. Put on a grounded ESD wrist strap before handling the controller. Take photos of existing serial connection cables and verify the CompactFlash card is clean and properly formatted.

2.Removal:

Disconnect the DB-9 serial cable connected to Channel 0. Disengage the module lever latches at the top and bottom of the failed 1768-L43 CPU. Carefully slide the processor module straight forward off the 1768 backplane connector tracks, ensuring no twisting forces are applied to the interconnect pins.

3.Installation (Clone & Seat):

Unbox the New Surplus 1768-L43 processor inside an ESD-protected workstation. Ensure the 1768-BA lithium battery is plugged into its housing. Align the module side tracks with the 1768 power supply and adjacent modules. Slide the module rearward until the top and bottom locking levers snap into place. Connect the RS-232 serial cable to Channel 0.

4.Power-On & Testing:

Restore AC/DC power to the 1768 power supply. Verify the front panel OK LED transitions from solid red to flashing green, then solid green upon booting. Connect Studio 5000 / RSLogix 5000 via serial or network bridge, download the motion project file, and verify all SERCOS/analog axis tags communicate without fault codes.

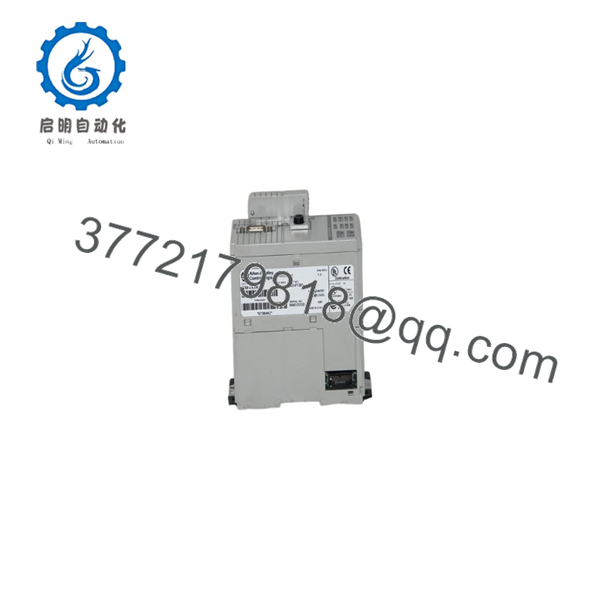

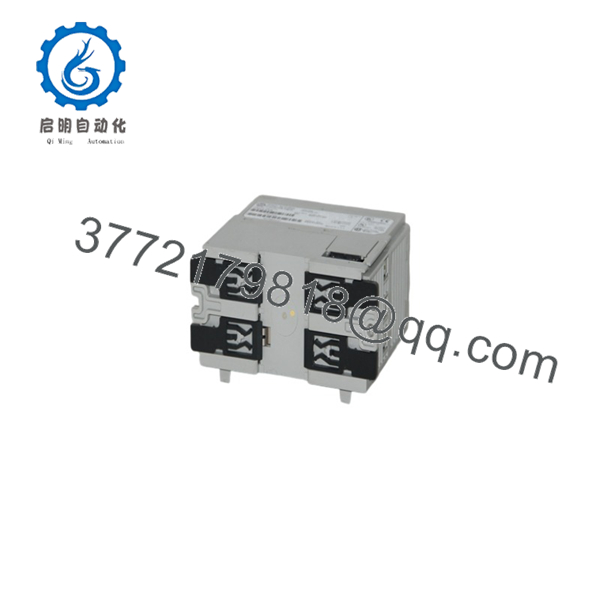

1768-L43

1768-L43

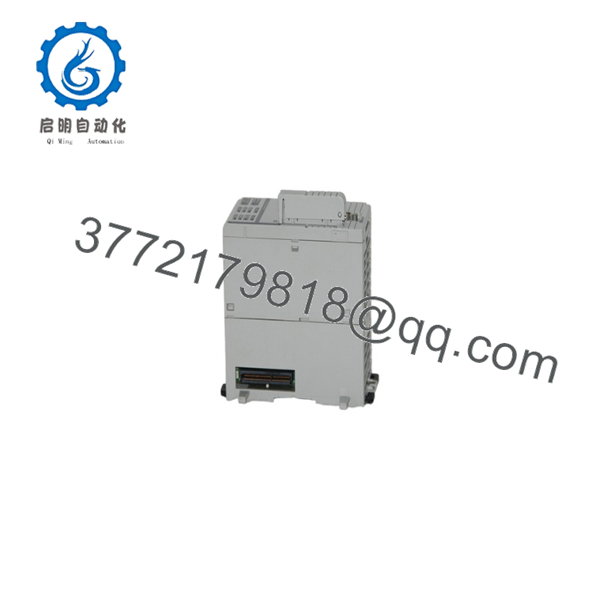

1768-L43

Firmware/Software Versions & Upgrade Notes

• Software Compatibility: Programmed using RSLogix 5000 / Studio 5000 (Major Revisions 16 through 20 supported).
• Firmware Coordination: The 1768-L43 firmware major revision must strictly match the project software major revision loaded in RSLogix 5000. Additionally, when using a 1768-M04SE SERCOS module, the SERCOS interface firmware must be kept in lock-step with the CPU revision.
• Non-Volatile Memory Transfer: If replacing a failed CPU, insert the original 1784-CF64/1784-CF128 CompactFlash card into the 1768-L43 slot before initial power-up. Configure the controller image-load properties to “On Power Up” to automatically restore logic and axis parameters without a PC connection.

Frequently Asked Questions (FAQ)

Why is this New Surplus 1768-L43 module priced higher than used or refurbished units?

The 1768-L43 is a specialized motion controller that processes complex high-speed kinematic algorithms. Refurbished units often suffer from degraded internal power components and thermal stress on internal memory modules, leading to unpredictable motion trajectory errors or axis position drift. Investing in genuine New Surplus guarantees zero operating hours, pristine high-speed bus interfaces, and full operational reliability, saving tens of thousands of dollars in potential mechanical damage and downtime.

Are these 1768-L43 processors original Allen-Bradley products?

Yes. We strictly guarantee that every 1768-L43 module supplied is 100% Original OEM New Surplus. Sourced from audited project overstock, system integrator reserves, and verified distributor inventories, each unit undergoes visual, mechanical latch, and live backplane bench testing prior to shipment.

What expansion modules are supported on the left side versus the right side of the 1768-L43?

The left side of the 1768-L43 processor connects to high-speed 1768 series modules (such as 1768-EN2T EtherNet/IP bridges, 1768-EWEB web server modules, and 1768-M04SE SERCOS motion cards). The right side connects to standard 1769 Compact I/O modules (such as digital inputs, relay outputs, and analog cards) using a 1769 end cap or right-side bus connection.

Can I run the 1768-L43 processor without a 1768-PA3 or PB3 power supply?

No. Unlike 1769-L3x controllers that can take power from various power supply placements, 1768-L43 processors require a dedicated 1768-PA3 (AC) or 1768-PB3 (DC) power supply mounted directly on the 1768 bus structure to provide regulated logic power to the high-speed backplane.

What warranty is included with this New Surplus 1768-L43 controller?

We back all New Surplus 1768-L43 processor modules with a full 1-year replacement warranty. If any operational defect or hardware fault occurs under standard operating parameters within 12 months, we will immediately supply a replacement unit directly from our stock.
