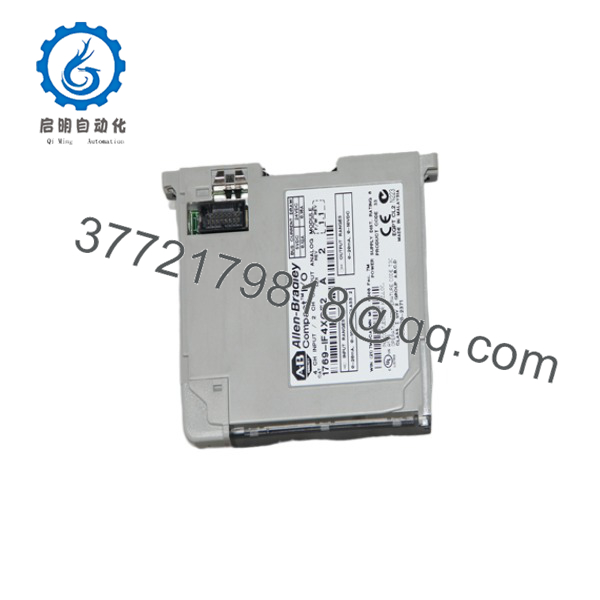

Allen-Bradley 1769-IF4XOF2 Compact I/O 4 In / 2 Out Analog Combination Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The Allen-Bradley 1769-IF4XOF2 is a high-versatility Compact I/O module combining 4 analog inputs and 2 analog outputs into a single chassis slot, ideal for CompactLogix and MicroLogix 1500 systems governing temperature loops, pressure transducers, flow meters, and variable frequency drives.

Maintaining this module as New Surplus provides a strategic operational advantage for facilities running standalone processing skids. Sourcing refurbished analog combination cards introduces serious operational hazards: heat-stressed digital-to-analog (DAC) converters and aged filtering capacitors on second-hand cards often exhibit severe signal calibration drift and high noise susceptibility. Installing factory-fresh New Surplus hardware preserves original 14-bit resolution, maintains loop accuracy, and delivers a much lower Total Cost of Ownership by preventing off-spec production runs and false high/low process trips.

1769-IF4XOF2

Installation & Configuration Guide

1.Pre-Installation (Prep & Safety):Safety warning: Ensure field loop supplies are powered down and ESD wrist strap is grounded.

Isolate 24V DC field loop power and main backplane power, applying Lock-Out/Tag-Out (LOTO) protocols. Wear a grounded ESD wrist strap connected to cabinet earth ground. Take a photograph of the 18-point Removable Terminal Block (RTB) wiring harness, noting signal shielding details (ground shields at one end only).

2.Removal:

Depress the top and bottom RTB release tabs and pull the wiring block directly forward from the front of the module housing. Locate the bus lever latches on the top and bottom of the adjacent left module. Slide the bus latches open to release the module from the 1769 backplane expansion bus. Slide the module forward off the DIN rail.

3.Installation (Clone & Seat):

Unpack the New Surplus 1769-IF4XOF2 module inside an ESD-protected zone. Align the DIN rail mounting channel on the rear housing with the 35 mm DIN rail. Push the module firmly onto the rail, slide it flush against the adjacent left module, and snap both the top and bottom bus levers closed to engage the backplane pins. Reattach the RTB and secure its latches.

4.Power-On & Testing:

Reapply backplane and field power to the chassis. Observe the module status panel: verify the OK LED illuminates solid green, indicating a successful backplane handshake. Using Studio 5000 / RSLogix 5000, verify input channel scaling, inject a known test signal (e.g., 4–20 mA loop generator), and measure output terminal voltage to confirm proper operation.

Firmware/Software Versions & Upgrade Notes

• Software Support: Programmed via RSLogix 5000 / Studio 5000 (CompactLogix) or RSLogix 500 (MicroLogix 1500).
• Configuration Parameters: Channel configuration (Voltage vs. Current, engineering unit scaling, and filter frequency selection) is pushed from the PLC processor over the backplane during module initialization. Ensure the I/O configuration in software matches the physical module catalog number.
• Jumper Wiring Note: When configuring input channels for current mode (0–20 mA or 4–20 mA), external jumper connections must be installed across the V/I in+ and i in+ terminals for that specific channel, or set via the internal terminal configuration according to the module wiring diagram.

Frequently Asked Questions (FAQ)

Is “1769-IF4X” the exact catalog number for this analog module?

In engineering drawings and panel schematics, “1769-IF4X” is frequently used as a shorthand reference for the 1769-IF4XOF2 module (4 Analog Inputs / 2 Analog Outputs). The full commercial catalog number for ordering and Studio 5000 hardware identification is 1769-IF4XOF2.

Why is this New Surplus module preferred over a cheaper refurbished card?

Analog circuits are sensitive to component aging. Refurbished combination cards often retain worn capacitors and degraded internal voltage references that cause signal drift in 4–20 mA loops over time. A drift of just 0.5 mA on a critical pressure loop can cause severe quality failures or false emergency shutdowns. Buying New Surplus ensures factory calibration accuracy, zero operational hours, and full operating life.

Are these 1769-IF4XOF2 modules original Allen-Bradley products?

Yes. We strictly guarantee that every 1769- module supplied is 100% Original OEM New Surplus. Sourced from audited distributor overstock, panel builder excess, and verified project reserves, every unit undergoes visual checks, backplane handshake testing, and channel signal verification before dispatch.

Does the 1769- provide channel-to-channel isolation?

No. The 1769- provides 500V AC optical isolation between the analog field circuitry and the 1769 backplane bus, but individual channels share a common signal return. If your application requires channel-to-channel isolation to prevent field ground loops, consider isolated analog modules such as the 1769-IF4I or 1769-OF4CI.

What warranty coverage is provided with this New Surplus module?

All New Surplus 1769- modules include our comprehensive 1-year replacement warranty. If any functional hardware defect or channel calibration failure occurs within 12 months under standard working conditions, we will replace the unit immediately from our ready stock.
