Key Technical Specifications
| Parameter | Value |
| Catalog Number | 2711-K10C8 |
| Display Type | Color Active Matrix TFT LCD |
| Display Size | 10.1-inch diagonal (211 x 158 mm active area) |
| Resolution | 640 x 480 pixels (VGA) |
| Input Method | Keypad (16 Configurable Function Keys F1–F16, Numeric Keypad, and Cursor Navigation Keys) |
| Communication Port | Data Highway Plus (DH+) Port (3-pin Phoenix connector) |
| RS-232 Printer Port | Yes (9-pin D-sub RS-232 for serial printing/logging) |
| Input Voltage | 24 VDC nominal (18–32 VDC operating range) |
| Power Consumption | 24 W maximum (1.0 A at 24 VDC) |
| Internal Memory | 1008 KB Application Flash Memory |
| Backlight Life | 50,000 hours typical (replaceable CCFL catalog 2711-NC14) |
| Enclosure Rating | NEMA 12, 13, 4X (Indoor use only), IP65 |
Product Introduction & Supply Chain Strategy
The Allen-Bradley 2711-K10C8 PanelView 1000 is a large-format human-machine interface (HMI) designed for complex industrial control systems. Featuring a high-resolution 10.1-inch color display and 16 physical function keys (F1–F16) alongside a full numeric keypad, it enables intuitive, tactile operator control across high-density PLC-5, SLC 5/04, and ControlLogix architectures via Data Highway Plus (DH+) networks.
With Rockwell Automation having discontinued the standard PanelView 1000 line, sourcing factory-sealed New Surplus units is vital for maintaining active production lines. Choosing New Surplus over refurbished hardware eliminates severe risks like brittle key membranes, dimming CCFL backlights, and thermal logic failures. Maintaining on-site buffer stock preserves line productivity while avoiding costly, multi-week control system redesigns.

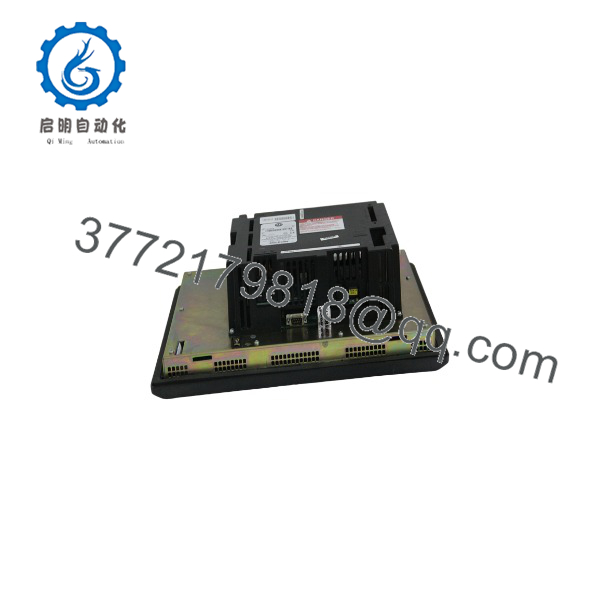

2711-K10C8

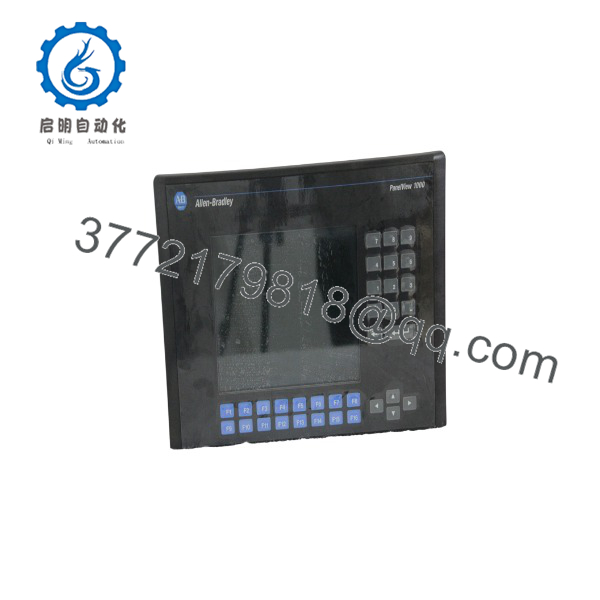

2711-K10C8
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Lock-Out/Tag-Out (LOTO): Isolate and lock out the 24V DC power feed driving the panel cutout before starting installation.
- Cutout Verification: Check cabinet cutout dimensions against PanelView 1000 standards (282 mm H x 422 mm W / 11.11 in H x 16.61 in W). Remove burrs and clean off metal debris around the lip.
- Gasket Setup: Verify the perimeter sealing gasket is seated cleanly inside the rear bezel channel to preserve NEMA 4X / IP65 enclosure integrity.
Stage 2: Removal
- Unplug the 3-pin DH+ network connector and any RS-232 serial printer cables from the rear header.
- Disconnect the 24V DC power harness (+24V DC, DC Common, Earth Ground) from the terminal block.
- Loosen and remove the perimeter mounting clamps, then ease the old unit forward out of the panel cutout.
Stage 3: Installation (Clone & Seat)
- Position the new 2711-K10C8 terminal into the cabinet cutout from the front side.
- Install all mounting clamps into their respective frame slots, tightening them in an alternating pattern to 10 in-lbs (1.13 N·m) of torque. Do not overtighten to avoid warping the front bezel.
- Wire the 24V DC supply lines (+24V, DC Common, Earth Ground) securely into the terminal power block.
- Plug the 3-pin DH+ connector (Clear, Shield, Blue) into the network port.
Stage 4: Power-On & Testing
- Apply 24V DC power and monitor the boot sequence on the color display.
- Verify the terminal runs self-diagnostics and enters the terminal Configuration Screen or launches the application program.
- Test key tactile feedback across function and numeric keys, and confirm active node communication with the host controller on the DH+ highway.
Firmware/Software Versions & Upgrade Notes
- Software Environment: Configured using PanelBuilder32 software (version 3.80 or higher recommended).
- Application File Transfer: Upload or download
.PVA/.PVRruntime files via PCMCIA ATA memory card (using card retaining cap 2711-NM216) or directly using a 1784-U2DHP USB-to-DH+ interface converter. - DH+ Configuration: Confirm the terminal’s DH+ node address (0–77 octal) and baud rate (57.6k, 115.2k, or 230.4k) match your network design and do not duplicate existing nodes.
Frequently Asked Questions (FAQ)
Is this 2711-K10C8 unit guaranteed to be New Surplus and not refurbished?
Yes. This unit is 100% Brand New Surplus stock in original OEM factory packaging. It has never been installed in an active industrial enclosure, exposed to harsh ambient air, or subjected to keypad or display repairs.
Why is buying New Surplus so critical for PanelView 1000 terminals?
Refurbished PanelView 1000 units often suffer from shortened service lives due to aged CCFL backlights (which lose brightness over time), hardened key membranes with degraded tactile feedback, and thermal stress on internal power regulators. Purchasing New Surplus ensures full 50,000-hour backlight life, factory-fresh key response, and long-term operating stability.
What is the difference between the 2711-K10C8 and 2711-B10C8?
The K in 2711-K10C8 indicates Keypad Only input (16 function keys + numeric pad with no touchscreen). The B version (2711-B10C8) is a Dual Input model that combines a keypad with a touchscreen. The 2711- is preferred for environments where physical key tactile feedback is required.
How does the 2711- differ from the 2711-K10C15?
While both are 10.1-inch color PanelView 1000 keypad terminals, the 2711- uses Data Highway Plus (DH+) communications with a 24V DC power supply, whereas the 2711-K10C15 uses ControlNet communications with a 24V DC power supply.
What warranty coverage comes with this New Surplus HMI?
We back this 2711- New Surplus terminal with a full 1-year replacement warranty. Every unit passes rigorous visual checks, port integrity verification, and ESD-safe packaging before dispatch.
