ALSTOM 251380-000 VIO-86S Vital I/O Module

Description

3. Key Technical Specifications

ALSTOM 251380-000 VIO-86S is documented as a Vital General Purpose I/O module with an 8 input / 6 output configuration for ElectroLogIXS systems.

4. Product Introduction

ALSTOM 251380-000 VIO-86S is a Vital General Purpose I/O Module used in ElectroLogIXS safety control architectures. It provides 8 vital input channels and 6 vital output channels for railway signaling and industrial safety-related control applications.

In field replacement work, engineers normally verify the complete part number, voltage variant, rack configuration, and associated personality module before installation. The matching VIO-86S Personality Module is identified as P/N 227537-000 in ElectroLogIXS documentation.

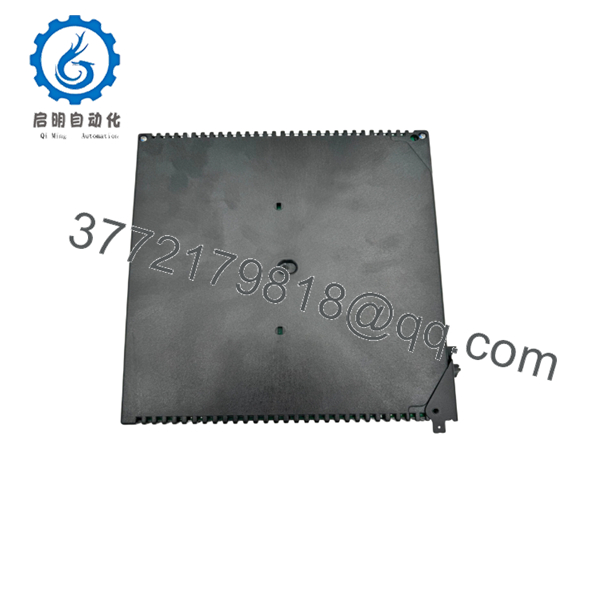

251380-000 VIO-86S

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 5–10 minutes)

⚠️ Safety First:

• Notify operations before taking the signaling/control system offline.
• Confirm the equipment is in a safe maintenance state.
• Apply lockout/tagout procedures.
• Remove power and wait at least 5 minutes for capacitor discharge.

Tools Required:

• ESD wrist strap
• PH1 screwdriver
• Fluke 115 multimeter
• Wire labels
• Smartphone/camera for documentation

Data Backup:

1. Record the existing rack slot location.
2. Photograph all wiring, connectors, and module labels.
3. Document the existing module serial number and hardware revision.
4. Verify the associated VIO-86S Personality Module configuration if installed.
5. Save available controller configuration records.

Stage 2: Removing the Old Module (Estimated Time: 5 minutes)

1. Remove the front cover or protective access panel.
2. Label each field connection before removal.
3. Disconnect connectors carefully without stressing pins.
4. Release rack retention clips or locking mechanisms.
5. Pull the VIO-86S module straight out.
6. Inspect the backplane connector for contamination, bent pins, or mechanical damage.

⚠️ Note: Keep the removed module until the replacement is fully tested. Legacy control systems often require the original board for revision comparison.

Stage 3: Installing the New Module (Estimated Time: 10 minutes)

1. ESD Preparation: Wear a grounded wrist strap before touching the PCB.
2. Verify the replacement marking:
   • ALSTOM
   • 251380-000
   • VIO-86S
3. Configuration Clone (Critical):
   • Match rack position.
   • Confirm connector arrangement.
   • Verify any configuration keys or hardware settings.
4. Insert the module into the ElectroLogIXS rack.
5. Confirm full seating and locking engagement.
6. Reconnect field wiring carefully.

Self-Checklist:

• Correct 251380-000 part number verified
• Rack slot confirmed
• Connectors fully seated
• Wiring labels matched
• Module locked into position

Stage 4: Power-On & Testing (Estimated Time: 10–15 minutes)

Pre-Power Check:

• Check supply rails with a Fluke 115 multimeter.
• Verify no short condition exists before energizing.

Power-On Steps:

1. Power the rack only.
2. Check module status indicators.
3. Verify the controller recognizes the VIO-86S.
4. Confirm diagnostic status.
5. Test input signals.
6. Test output channels under controlled conditions.
7. Return field equipment to service after verification.

⚠️ Troubleshooting Note:
If the module fails to initialize, check:

• Incorrect module revision
• Wrong rack slot
• Personality module mismatch
• Wiring errors
• Configuration differences

6. Frequently Asked Questions (FAQ)

Q: Can I hot-swap the ALSTOM 251380-000 VIO-86S module?

A: No, do not assume hot-swap capability. ElectroLogIXS vital modules should normally be replaced with power removed unless the specific system documentation confirms otherwise. Removing a live module can create safety faults or damage connected hardware.

Q: Is the ALSTOM VIO-86S 251380-000 obsolete?

A: This is a legacy ElectroLogIXS component, and availability depends on surplus inventory and installed system base. Many railway systems continue operating legacy ALSTOM/GE Transportation equipment, so tested replacement stock remains available through industrial surplus channels.

Q: Is the 251380-000 the same as the VIO-86S module used by GE Transportation?

A: Yes, the part number is referenced as ALSTOM P/N 251380-000 and also appears in GE Transportation ElectroLogIXS documentation and inventory references. Always verify the exact application before replacement.

Q: Will I lose the control program when replacing this module?

A: The VIO-86S is an I/O module, not the main application controller. The control logic is normally stored elsewhere in the system. However, I/O configuration and addressing must match the existing installation.

Q: What condition should I expect when buying this module?

A: Confirm whether the unit is New Original (New Surplus), Factory Sealed, or Refurbished (tested). For surplus units, request serial photos, inspection records, and functional test information before installation.

Q: What is the most common replacement mistake with VIO-86S modules?

A: Engineers often focus only on the module part number and overlook the surrounding configuration. I have seen replacements fail because the technician matched the board but ignored the associated personality module, wiring arrangement, or system revision.

Q: What quality inspection should be completed before shipping a replacement VIO-86S?

A proper inspection process should include:

1. Inbound Inspection & Traceability
   • Verify source documentation.
   • Check serial markings and identification labels.
   • Inspect for corrosion, scratches, rework marks, or physical damage.
   • Confirm included accessories and documentation.
2. Live Functional Testing
   • Test using a compatible ElectroLogIXS rack or simulation setup.
   • Verify power-up sequence.
   • Check module status indicators.
   • Perform I/O simulation testing.
   • Run extended operation testing.
   • Generate a test report.
3. Electrical Testing
   • Insulation resistance test using a 500 V Megger where applicable.
   • Ground continuity check.
   • Additional electrical verification based on system requirements.
4. Configuration Verification
   • Record hardware revision.
   • Document module identification.
   • Photograph configuration details.
5. Final QC & Packaging
   • QC inspector sign-off.
   • ESD anti-static packaging.
   • Protective cushioning.
   • QC label with inspection date.

Test photos and videos should be available upon request. Verified functional testing under controlled conditions is the correct standard for legacy safety control modules.
