ALSTOM MVAX31S1DE0754A Trip Circuit Supervision Relay (TCS)

Description

3. Part Number & Nomenclature Breakdown

For the MVAX31 family of protective and monitoring devices, the catalog number MVAX31S1DE0754A maps to the following design specifications:

4. Key Technical Specifications

5. Product Introduction & Application Strategy

The ALSTOM MVAX31S1DE0754A is an electromechanical Trip Circuit Supervision (TCS) relay used to verify the health of medium-to-high voltage circuit breaker tripping systems. A tripped circuit breaker is the final line of defense against catastrophic overcurrents and faults on the power grid. Because trip coils are only energized during an actual fault event, a silent wire break, contact corrosion, or loss of auxiliary supply can go unnoticed until a fault occurs—resulting in a failed trip and extensive substation damage.

The MVAX31 prevents this by running a continuous, low-current monitoring loop through the trip coil and breaker auxiliary contacts. Since it is designed as an MVAX 31 variant, it supervises the circuit whether the breaker is Open or Closed.

From a system maintenance perspective, sourcing this module as a New Surplus unit is highly recommended over used or third-party repaired options. Because TCS relays are energized continuously throughout their operational life, salvaged relays often suffer from severe thermal fatigue in their internal coil windings and copper slugs. Investing in a factory-sealed, zero-hour surplus MVAX31 ensures that your emergency trip paths remain monitored by reliable, unworn electromechanical contacts.

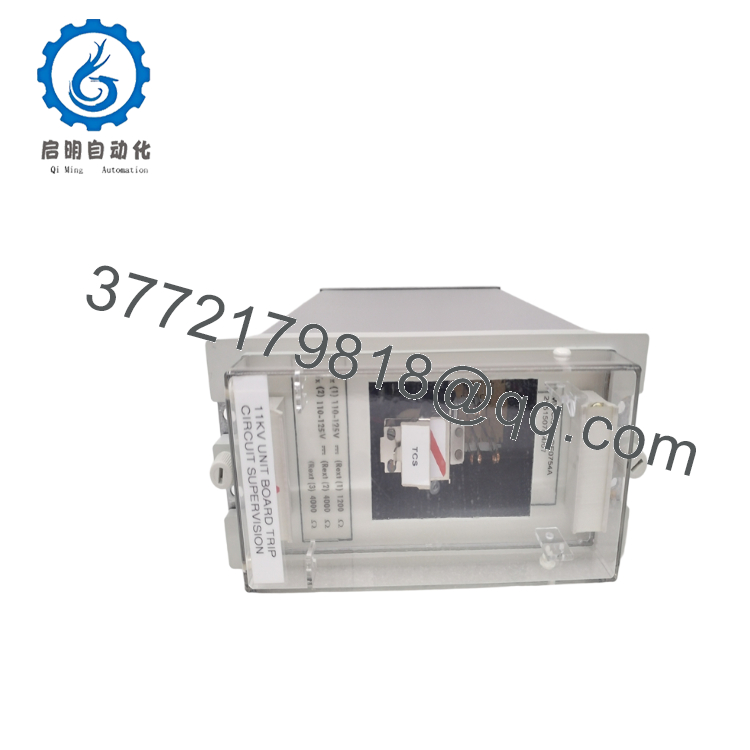

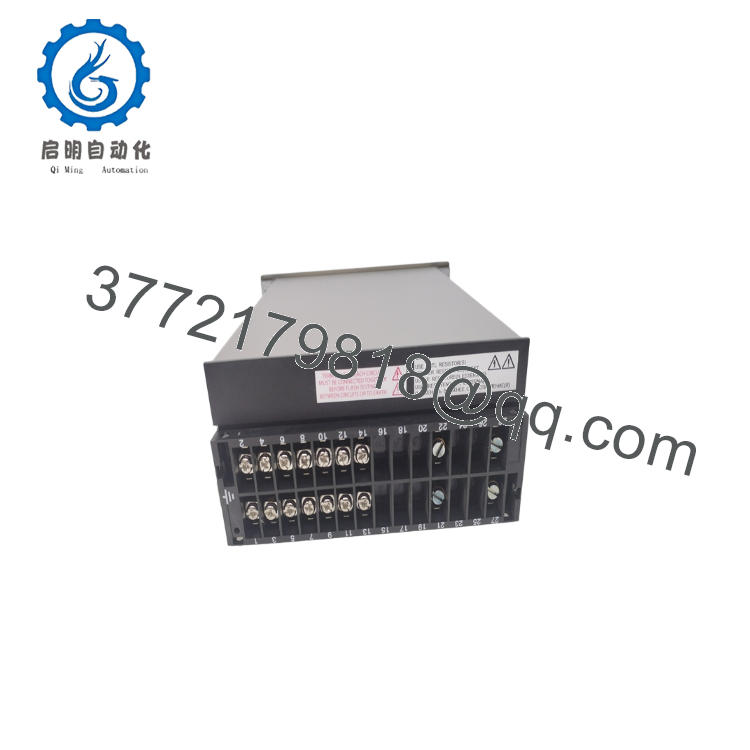

MVAX31S1DE0754A

MVAX31S1DE0754A

MVAX31S1DE0754A

6. Installation & Testing Guideline

Stage 1: Safety & Isolation

Perform complete lock-out/tag-out (LOTO) procedures on the high-voltage switchgear. Isolate the 110-125 VDC auxiliary battery distribution feed to the relay panel. Put on a grounded ESD wrist strap. Ensure that you have identified the associated external series resistors required for the 110-125V system.

Stage 2: Mechanical Insertion

Mount the outer size 2 drawout casing securely into the panel cutout. If replacing an existing unit in a running panel, slide the active MVAX31S1DE0754A module into the case tracks. Push firmly until the terminal fingers fully engage the rear backplane receptacles. Secure the retaining screws.

Stage 3: Electrical Terminal Connections

Verify the wiring matches your substation’s schematic:

• Coil Inputs: Wire the trip path supervision loop across the designated terminal paths (typically monitoring terminals like A13-A14, B21-B22, and C27-C28 depending on scheme design).
• Alarm Signaling: Connect the NC/NO fault signaling contacts to your local annunciator panel and remote RTU/SCADA inputs.
• External Resistor: Ensure the external series-limiting resistor is mounted vertically (for heat dissipation) and wired in series with the supervision coils to restrict current below the trip coil’s pickup threshold.

Stage 4: Commissioning & Functional Verification

1. Energize the 110-125 VDC auxiliary supply loop. With the breaker closed and the trip circuit healthy, the MVAX31 internal coils should pick up, and the mechanical flag should remain reset (clear/black).
2. Drop-Off Time Test: Simulate a trip circuit failure by safely opening the supervision link. Verify that the relay drops off and initiates the alarm contact. The time delay must fall within the designated envelope (typically around 400 ms) to ensure that normal breaker transition times do not trigger nuisance SCADA alarms.
3. Reset the mechanical flag manually using the front-cover reset mechanism.

7. Frequently Asked Questions (FAQ)

What is the purpose of the 400 ms drop-off delay in the MVAX31?

The drop-off delay (achieved using built-in copper slugs on the relay’s electro-magnet) prevents false alarms during transient voltage dips, normal circuit breaker operations, or when the trip relay contacts momentarily short-circuit the supervision path during a legitimate trip sequence.

Why does this electromechanical relay require external resistors?

The MVAX31 relies on external series resistors to limit the monitoring current to a very low level (typically a few milliamps). This prevents the trip coil of the circuit breaker from accidentally picking up and causing an unwanted, spontaneous breaker opening during normal supervision.

Is this MVAX31S1DE0754A unit a new surplus item?

Yes. This is a Brand New Surplus unit. It has not been salvaged from a decommissioned substation, nor has it undergone third-party electronic rebuilding. It ships in clean protective packaging, showing uncompromised coil windings, unscored drawout fingers, and a pristine mechanical flag assembly.

What warranty terms apply to this legacy protection relay?

We back this New Surplus MVAX31S1DE0754A relay with a comprehensive 1-year operational warranty from your date of purchase. If a component defect occurs during this window, we handle replacement or repair immediately, shielding your operating budget from the limited 30-day structural warranties typically packaged with refurbished alternative components.
