Key Technical Specifications
- Manufacturer: Applied Materials, Inc.
- Part Number: 0010-44213
- Associated Reference: 0150-00743, Rev. 001; verify both labels against the installed assembly
- Product Classification: QCM Radiance RTP pyrometer / optical temperature-measurement assembly
- Primary Application: Temperature monitoring in Applied Materials Radiance rapid thermal processing equipment
- Measurement Principle: Optical/non-contact pyrometry; exact wavelength range and calibration data require OEM documentation
- Process Environment: Semiconductor manufacturing equipment; verify vacuum-side versus atmospheric installation location before replacement
- System Compatibility: Applied Materials QCM/Radiance RTP tool configuration; compatibility is revision-dependent
- Electrical Interface: Proprietary AMAT harness and connector arrangement; confirm connector keying and pinout from the tool documentation
- Mechanical Interface: Tool-specific mounting and optical alignment; compare bracket, standoff, cable exit, and sensor head geometry
- Calibration Requirement: Treat replacement as requiring tool-level verification or calibration before production wafer processing
- Service Status: Legacy semiconductor-tool spare; stock and condition vary by individual unit
Market listings connect part number 0010-44213 with an Applied Materials Radiance RTP/QCM pyrometer assembly and often show the companion number 0150-00743. Many other public listings label the same part as unrelated items, such as a gas regulator, power supply, sensor, or wafer-lift component; those descriptions conflict with the QCM/Radiance RTP listing and should not be used for procurement or installation decisions. Verify the actual unit label, companion part number, and your tool BOM before ordering.
Product Introduction
The Applied Materials 0010-44213 is associated with a QCM Radiance rapid thermal processing pyrometer assembly used to monitor wafer temperature without direct physical contact. In RTP equipment, temperature feedback affects lamp-power control, recipe accuracy, thermal uniformity, and process repeatability during heating and cooling sequences.
This is a tool-specific semiconductor spare, not a generic industrial temperature transmitter. Buy the AMAT 0010-44213 only after matching the installed unit’s labels, associated 0150-00743 reference, mechanical bracket, optical head orientation, cable/connector configuration, and applicable Radiance RTP tool revision. A wrong optical assembly may fit mechanically yet produce unusable temperature data.

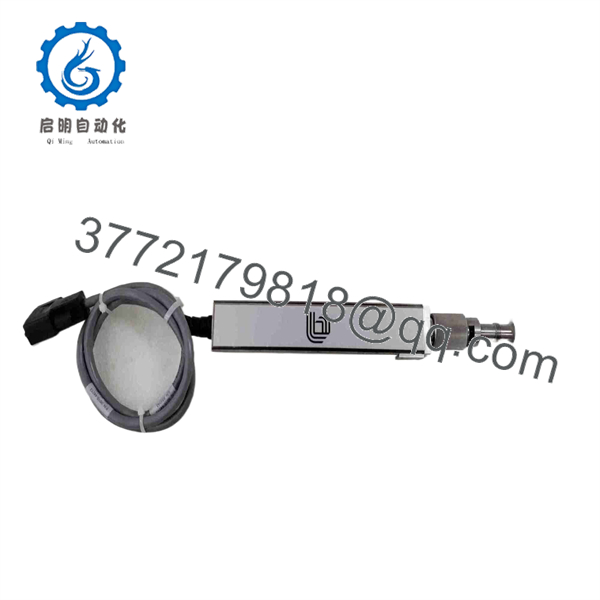

0010-44213

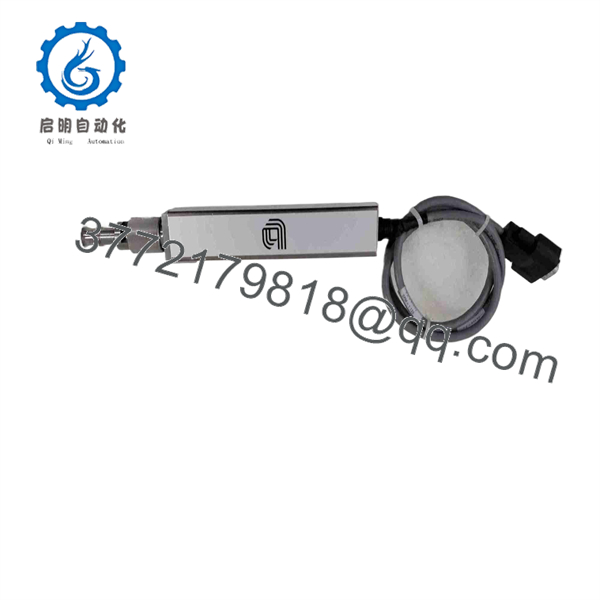

0010-44213
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| RTP tool reports pyrometer communication fault | Loose harness, damaged cable, connector contamination, failed sensor electronics, interface-board fault | ✅ High | Power down under tool lockout; inspect both ends of the pyrometer harness for bent pins, corrosion, burn marks, and latch damage | Reseat and inspect the harness before replacing the assembly; compare with a known-good cable if available |
| Temperature reading is fixed, zero, or outside physical range | Broken signal path, failed sensor, incorrect calibration constants, data-acquisition fault | ✅ High | Compare reported temperature against a qualified reference during an approved maintenance test; review tool diagnostics and raw sensor values | Check the interface board and configuration first. Replace only after the fault follows the sensor assembly |
| Temperature reading is noisy or unstable | Dirty optical path, loose mount, damaged fiber/optics, electrical noise, failed detector | ✅ High | Inspect optical windows and mounting surfaces using OEM-approved cleanroom procedures; examine trend data for noise correlated with lamp power or motion | Clean only with the tool manufacturer’s approved method. Do not touch optical surfaces with bare gloves or unapproved wipes |
| Measured wafer temperature disagrees with the recipe or reference | Calibration drift, wrong pyrometer model, incorrect emissivity setting, optical misalignment | ✅ High | Compare installed part number and calibration/configuration values with the tool BOM and backup; perform the OEM-approved calibration check | Do not run production wafers until the temperature loop passes the prescribed verification |
| Heating lamps do not start | Interlock open, lamp power supply fault, safety fault, recipe issue | ❌ Low | Read the RTP controller fault log; check lamp supply and safety/interlock status per service documentation | Do not replace the pyrometer unless diagnostics specifically identify a temperature-sensing fault |
| Process temperature overshoots during ramp | Incorrect feedback scaling, calibration error, dirty optics, lamp-control tuning, sensor response fault | ⚠️ Medium | Review temperature trend, requested versus actual lamp power, and recent calibration history | Stop production processing. Validate the optical path and calibration before changing hardware |
| Replacement unit is not recognized | Wrong revision, incompatible connector, incorrect paired interface part, configuration mismatch | ✅ High | Compare every label: 0010-44213, any revision code, 0150-00743 association, connector style, and mounting geometry | Do not force-connect. Return the unit for cross-check if any label or connector differs |
| Readings drift after maintenance | Optical head disturbed, bracket not seated, window contamination, calibration not restored | ✅ High | Inspect mechanical seating and alignment references; review before/after calibration values and maintenance records | Reinstall and complete the required tool-level verification before releasing the chamber |
❗ Do not treat a pyrometer problem as an ordinary instrumentation fault. In an RTP tool, an incorrect temperature signal can change the actual wafer thermal profile even when the recipe displays normal setpoints. Capture the tool alarm history, current calibration record, photos of the installed labels, and the optical mounting arrangement before removing the assembly. Contact technical support with those records if the diagnosis remains uncertain.
Frequently Asked Questions
What is the Applied Materials 0010-44213?
Available semiconductor-spare listings identify the AMAT 0010-44213 as a QCM Radiance RTP pyrometer or pyrometer-related optical assembly. It is associated with non-contact temperature sensing in Applied Materials Radiance rapid thermal processing equipment, and some listings pair it with reference 0150-00743.
Is 0010-44213 a generic temperature controller or gas regulator?
No. Do not rely on generic web pages that call 0010-44213 a gas regulator, power supply, transmitter, wafer-lift device, or generic control module. Those descriptions conflict with the more specific QCM/Radiance RTP identification. Semiconductor-tool part numbers are often misclassified by secondary-market sellers. Match the physical label and your Applied Materials tool BOM before purchase.
Can I replace the pyrometer without recalibrating the RTP tool?
Do not assume so. A replacement optical temperature-sensing assembly can have different calibration data, detector response, optical alignment, or configuration requirements. Follow the OEM service procedure for the exact tool. At minimum, verify part identification, mechanical seating, raw signal stability, temperature feedback, and any required calibration or reference-wafer procedure before processing production material.
Can I use an assembly with the same base number but a different revision?
Only if your tool documentation explicitly approves it. Different revisions can change connector keying, electronics, mounting, optical geometry, calibration coefficients, or supported controller software. The safest replacement is an exact label match: 0010-44213, the correct revision where shown, and the appropriate associated hardware reference such as 0150-00743.
Is the AMAT 0010-44213 still available from the OEM?
Treat it as a legacy, tool-specific spare with availability dependent on OEM service channels, surplus inventory, or qualified refurbished stock. Ask the supplier to confirm physical possession, condition, photographs, tool compatibility, and lead time before issuing a purchase order. Listings show units available through secondary-market channels, but listing availability is not proof of current stock.
Is a New Surplus unit better than a Refurbished unit?
It depends on the evidence supplied with the unit. New Surplus means unused original inventory, though it may have been stored for years and may require inspection for packaging damage, connector oxidation, or optical contamination. Refurbished means previously used equipment that should have documented functional testing and, where applicable, calibration verification. For a pyrometer assembly, request exact-label photos, optical-surface photos, serial-number traceability where available, test records, and written warranty terms.
What testing should a supplier perform before shipment?
For New Original / New Surplus stock, request inbound traceability review, serial-number and label verification, anti-counterfeit inspection, optical-head and connector inspection, verification that no corrosion, scratches, rework marks, or cable damage are present, and protective packaging suitable for optical and ESD-sensitive hardware.
For Refurbished stock, request testing in a compatible Applied Materials Radiance RTP configuration whenever available. The test should confirm power-up recognition, stable sensor output, communication with the relevant interface, response under a controlled thermal reference or qualified simulator, and verification that the supplied part number and revision match the purchase order. Ask for the test report, photos, and video before shipment.
