Key Technical Specifications
- Manufacturer: Applied Materials, Inc. (AMAT)
- Product Family: AKT semiconductor-equipment hardware
- Part Number: 0100-71309
- Known Revision: Rev. 01
- Published Listing Description: AKT MF Primary Distribution assembly
- Alternate Market Descriptions: Control circuit board module; VME communication board; industrial I/O module
- Most Reliable Identification Method: Match the full part number, Rev. 01 marking, PCB photographs, connector layout, and installed equipment documentation
- Primary Application: Applied Materials semiconductor and display-manufacturing equipment
- Form Factor: OEM printed circuit board assembly; exact chassis, slot, and mechanical dimensions require confirmation from the installed unit
- Interface Details: Publicly unverified; do not assume VME, field I/O, analog I/O, or communication functionality from reseller descriptions alone
- Voltage and Current Ratings: Not publicly verified; confirm supply rails and connector pinout from the machine schematic before installation
- Firmware/Configuration: Not publicly verified; record host diagnostics, board labels, switch settings, and configuration data before replacement
Available listings consistently connect 0100-71309 with Applied Materials and AKT semiconductor equipment, while the board’s exact function is described inconsistently across sellers. One listing specifically calls it “AKT MF Primary Distribution 0100-71309 Rev. 01”; other sellers call it a control board, I/O module, or VME communication board. Treat the part number and physical-board match as mandatory, and verify the machine schematic before purchase or installation.
Product Introduction
The Applied Materials 0100-71309 Rev. 01 is an OEM control-circuit-board assembly associated with AMAT AKT semiconductor and display-manufacturing equipment. A market listing identifies it as an AKT MF Primary Distribution board, indicating a role in the tool’s internal control or distribution architecture rather than a general-purpose PLC module.
This part is normally purchased as an exact spare for installed AMAT equipment. Verify the full 0100-71309 number, Rev. 01 marking, connector count, PCB revision, host location, and machine documentation before ordering. Do not substitute a different AMAT 0100-series board based on visual similarity or a generic reseller description.

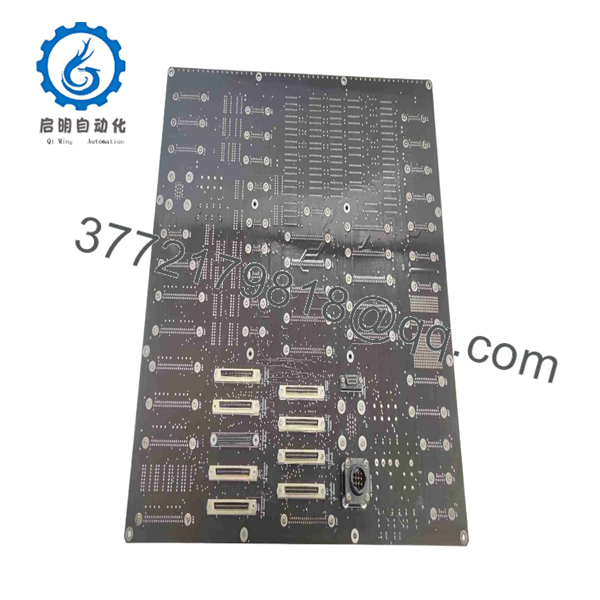

0100-71309

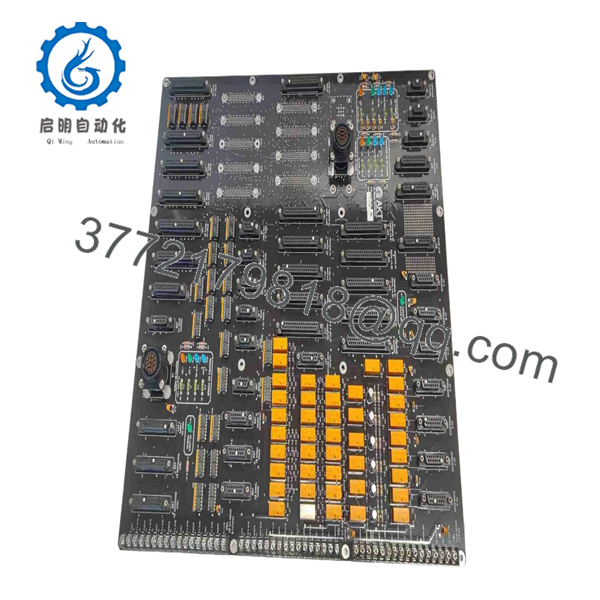

0100-71309
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No LEDs, no local board activity, or tool fails after power-up | Missing supply rail, blown upstream fuse, power-distribution fault, loose connector, or board failure | ✅ High | Follow the approved lockout/tagout procedure. Check the machine power-distribution schematic. Measure the specified DC rails at the board-side connector with a Fluke 115 or equivalent meter. Inspect upstream fuses and power-supply status. | Verify power rails, fuses, and connector seating before replacing the board. A dead board is often the result of an upstream supply issue. |
| Tool reports a primary-distribution or subsystem initialization fault | Board fault, incorrect board revision, poor edge-connector contact, host-controller issue, or failed external load | ✅ High | Capture the exact alarm text and timestamp. Power down under OEM procedure, inspect mating connectors for pushed-back or oxidized pins, then compare the installed label against the replacement label. | Replace the board only after confirming correct machine supply conditions and an exact 0100-71309 Rev. 01 match. |
| System faults immediately after replacement | Wrong revision, connector installed incorrectly, displaced adjacent board, incompatible configuration, or damaged pin | ✅ High | Compare high-resolution photographs of the old and replacement boards. Confirm every connector keyway, cable label, slot location, and mounting point. Inspect the backplane and headers under magnification. | Remove power and recheck the installation. Do not repeatedly cycle power while an interface mismatch remains possible. |
| Intermittent subsystem trips during machine motion or vibration | Loose harness, cracked solder joint, connector oxidation, inadequate strain relief, or failing external device | ✅ Medium | With power removed, inspect connector retention and cable strain relief. Review fault logs for correlation with motion, chamber cycling, or cabinet temperature. Check whether gentle harness movement reproduces the symptom only where site safety procedures allow. | Correct harness and connector issues first. Use a verified matching spare only if the intermittent fault follows the board. |
| One downstream subsystem remains in fault while others are normal | External load, cable fault, local power branch, interlock, fuse, or subsystem board failure | ❌ Low to Medium | Check the affected branch’s fuse, terminal points, local supply rail, interlock chain, and cable continuity. Compare measurements with a working branch using the OEM schematic. | Troubleshoot the external branch before condemning the 0100-71309 board. |
| Communication timeout or host-controller alarm appears after a board swap | Board identity/configuration mismatch, improper seating, host communication issue, or disturbed adjacent card | ✅ Medium | Record diagnostic logs. Verify the original card’s slot, revision, labels, and connector positions. Check host-controller status before and after reinserting the original board if approved by site procedures. | Confirm that 0100-71309 is the exact approved spare. Do not rely on descriptions such as “VME communication board” unless AMAT documentation verifies that function for your tool. |
| Burn mark, hot-electronics odor, or visibly damaged component | Overvoltage, shorted external load, failed power supply, liquid contamination, or internal board failure | ✅ High | Do not re-energize the assembly. Photograph the damage, inspect adjacent components, and measure the external branch for shorts before installing a replacement. | Repair the root cause before fitting another board. Otherwise, the replacement can fail immediately. |
❗ Revision warning: Document the old board’s full label and revision before removal. I have seen technicians install a visually identical board, only to lose a shift chasing a startup fault caused by one undocumented revision or connector difference.
❗ Connector warning: Take photos before unplugging anything. Seriously. On legacy semiconductor equipment, similar harness plugs can sit close together, and one swapped cable can produce alarms that look like a failed board.
❗ ESD warning: Use a grounded wrist strap and place the board directly into an ESD shielding bag. A board can appear fine after static damage, then fail only after it warms up under load.
If the fault remains uncertain, send technical support the exact AMAT tool model, complete alarm text, diagnostic logs, photos of both sides of the installed board, all connector labels, and the 0100-71309 Rev. 01 marking. Keep these checks in mind and you will save yourself 90% of typical rework time.
Frequently Asked Questions (FAQ)
What is the AMAT 0100-71309 board used for?
The 0100-71309 is an Applied Materials board used in AMAT semiconductor or display-manufacturing equipment. An identified market listing calls it an “AKT MF Primary Distribution” assembly and specifies Rev. 01. That is the most useful public identification available; the detailed electrical function, I/O count, voltage rails, and host interface should be verified from the equipment schematic or OEM documentation.
Is AMAT 0100-71309 a VME communication board or an I/O module?
Do not assume either description is correct for your machine. Reseller listings apply several different generic names to 0100-71309, including control circuit board, industrial I/O module, and VME communication board. Those descriptions conflict, so the safe approach is to match the physical board, revision, installed location, and AMAT documentation—not the generic title.
Can I use another AMAT 0100-series board as a substitute?
No. A nearby AMAT part number does not mean the board is electrically or mechanically interchangeable. Connector pinouts, supply rails, board identification, configuration, host interface, and downstream loads can differ between revisions and assemblies. Use an exact 0100-71309 replacement unless Applied Materials supplies a written supersession or compatibility reference.
Can I hot-swap the 0100-71309 board?
Assume no unless the exact machine manual says otherwise. Primary distribution and control boards can carry supply rails or interface signals that are not designed for live insertion. Shut down the equipment under the approved procedure, isolate energy sources, use ESD precautions, and verify that stored energy has dissipated before removing the board.
Will replacing this board retain the machine configuration?
The answer depends on the specific AMAT tool architecture. Public information does not establish whether 0100-71309 contains firmware, calibration information, address settings, or nonvolatile configuration. Before removal, save host-controller diagnostics, photograph all labels and switch positions, and record the board location and connected harnesses. Do not assume the replacement is plug-and-play.
Why is a New Surplus AMAT 0100-71309 cheaper than a factory order?
New Surplus generally means unused original inventory from excess stock, canceled projects, closed facilities, distributor liquidation, or legacy-equipment inventory. It may be genuine OEM stock, but it is outside the current OEM supply channel. Ask for actual photographs of the labels, Rev. 01 marking, connectors, packaging condition, serial-number visibility, test evidence, warranty terms, stock confirmation, and ship date before issuing a purchase order.
How should a supplier test this board before shipment?
A credible supplier should begin with traceability and visual inspection: review available OEM packing records, inspect labels, confirm there are no corrosion marks, repairs, damaged connectors, missing components, UV yellowing, or scratched traces. The supplier should then test the board in the correct AMAT-compatible fixture or documented simulation environment where possible.
At minimum, request evidence of power-up verification, interface checks appropriate to the host system, connector inspection, thermal observation during a sustained test, and a written test report. The final package should use an ESD shielding bag, bubble protection, and heavy-duty corrugated boxing. Test photos and video should be available upon request. A generic “tested working” statement is not enough for a critical production spare.
