Key Technical Specifications
| Parameter | Specification |
| Model Code | ABX-PDPS-COPS |
| Network Interface 1 | PROFIBUS DP-V0 / DP-V1 Slave (DB9 Female connector) |
| Network 1 Baud Rate | Auto-sensing, up to 12 Mbit/s |
| Network Interface 2 | CANopen Slave Profile DS301 V4.02 (5-pin open style pluggable connector) |
| Network 2 Baud Rate | 10 kbit/s to 1 Mbit/s (DIP switch or software selectable) |
| Max I/O Data Size | Up to 512 bytes Input and 512 bytes Output data |
| Operating Voltage | 24 V DC (±15%), 100 mA typical / 300 mA max |
| Galvanic Isolation | Integrated triple-way isolation (Power, Network 1, Network 2) |
| Configuration Interface | RS-232 Configuration Port (RJ11 connector) |
| Mounting & Enclosure | Heavy-duty DIN-rail mount (EN 50022 standard), IP20 rating |
| Operating Temperature | −25 to +70 °C |
Product Introduction & Supply Chain Strategy
This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The Anybus ABX-PDPS-COPS serves as a high-performance X-gateway coupler, enabling seamless peer-to-peer cyclic data exchange between a PROFIBUS DP master PLC (e.g., Siemens S7-300/400/1200/1500) and a CANopen master controller.
Securing a genuine New Surplus ABX-PDPS-COPS for your plant inventory mitigates severe supply chain downtime risks when cross-network bridges fail. Second-hand or repaired gateways frequently suffer from thermal stress on transceiver ICs and micro-cracks on internal bus couplers. Holding factory-sealed inventory on-site guarantees full 10 to 15 year operational longevity, preventing $50,000 per hour unplanned line outages during hardware replacements.

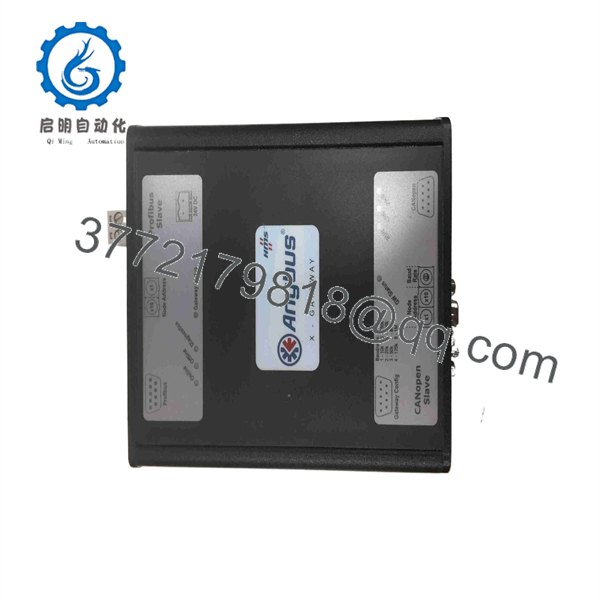

ABX-PDPS-COPS
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Enforce strict Lock-Out/Tag-Out (LOTO) procedures on the 24 V DC control enclosure power feeder.
- Put on a grounded ESD wrist strap before handling the X-gateway unit.
- Record the physical DIP switch settings for both PROFIBUS node address and CANopen node ID / baud rate from the active unit.
Stage 2: Removal
- Unplug the DB9 PROFIBUS connector and the 5-pin CANopen terminal connector.
- Disconnect the 24 V DC main power wire harness.
- Release the bottom DIN-rail retention latch using a flathead screwdriver and lift the unit off the mounting rail.
Stage 3: Installation (Clone & Seat)
- Configure the node address DIP switches on the ABX-PDPS-COPS to match the original unit exactly.
- Mount the gateway onto the standard 35 mm DIN-rail until the locking mechanism latches securely.
- Reattach the PROFIBUS DB9 plug, CANopen terminal plug, and 24 V DC power wiring.
Stage 4: Power-On & Testing
- Apply 24 V DC power and confirm correct polarity.
- Connect a PC via the RS-232 configuration cable and upload/verify the I/O mapping configuration using Anybus Configuration Manager.
- Check the front diagnostic LEDs: confirm solid green status indicators for both PROFIBUS and CANopen networks, ensuring no red bus fault (BF) or error conditions persist.
Firmware/Software Versions & Upgrade Notes
- Configuration Utility: Requires Anybus Configuration Manager (X-gateway edition) to define I/O buffer sizes and mapping structures.
- GSD and EDS Files: Ensure the appropriate PROFIBUS
.GSDfile and CANopen.EDSfile matching the firmware revision of the replacement unit are loaded into your master PLC configuration tools (such as TIA Portal, Step 7, or CODESYS). - Upgrade/Downgrade Warning: Replacing hardware revisions without verifying map configurations can alter byte-swapping settings (Little-Endian vs. Big-Endian) across the bus interface. Always audit data mapping prior to placing the new gateway into active process control.
Frequently Asked Questions (FAQ)
Q: Why is your New Surplus pricing lower than OEM direct, but higher than refurbished options?
A: Our pricing reflects the market cost of sourcing genuine, unused global inventory. Refurbished parts are cheap because they carry high failure risks from degraded optocouplers and aged capacitors. Our New Surplus stock provides original OEM quality at a fraction of factory list price.
Q: Is this Anybus ABX-PDPS-COPS gateway truly unused?
A: Yes. Every unit is brand-new, stored in anti-static ESD packaging, and features clean terminal contacts with zero wear on DIN-rail clips. Packaging is opened solely for visual inspection and quality control verification.
Q: Does replacing this unit require reprogramming the main PROFIBUS PLC?
A: No. As long as the node address DIP switches match the original unit and the I/O configuration memory map is uploaded via Anybus Configuration Manager, the master PLC will see the replacement gateway transparently.
Q: Can this unit act as a Master on either PROFIBUS or CANopen?
A: No. The ABX-PDPS-COPS functions strictly as a Slave on both sides (PROFIBUS DP Slave and CANopen Slave), passing cyclic data between two separate master controllers.
Q: What warranty coverage comes with this module?
A: We provide a full 1-year replacement warranty on all New Surplus modules, covering complete functional operation under standard industrial operating conditions.
