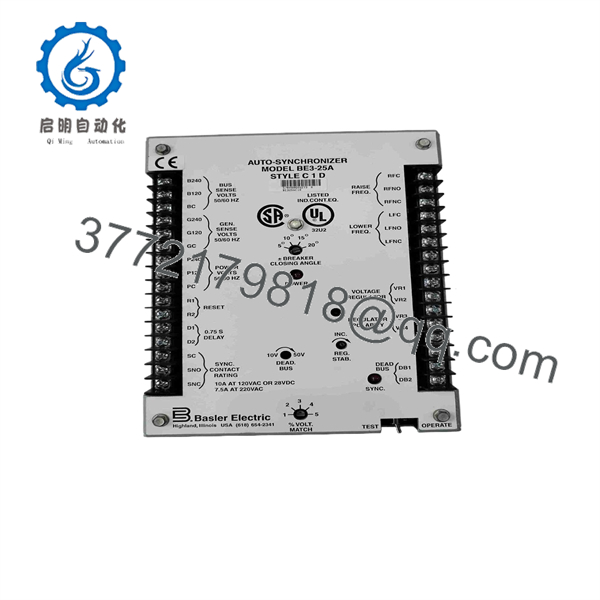

Basler Electric BE3-25A Auto-Synchronizer Relay

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Basler Electric BE3-25A is an automatic synchronizer relay designed to parallel oncoming generators with an energized station bus or another operating generator. By continuously monitoring phase angle, frequency differential, and voltage magnitude across the breaker, the BE3-25A issues active raise/lower correction signals to the prime mover’s electronic governor and automatic voltage regulator (AVR). Once all parameters align within programmed tolerances, it energizes its output contact to safely initiate circuit breaker closure without causing electrical or mechanical shock to the generator shaft.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Refurbished generator control relays present extreme operational risks: internal phase-sensing transformers and calibration potentiometers often drift due to past thermal stress, leading to out-of-phase paralleling. In prime power or emergency backup facilities, closing a generator breaker out of phase can cause catastrophic stator coil failure, twisted crankshafts, and utility penalties running into hundreds of thousands of dollars. Sourcing New Surplus inventory secures 100% component integrity, maintains system total cost of ownership (TCO), and preserves an operational lifespan of 10 to 15 years.

BE3-25A

Installation & Configuration Guide

1.Pre-Installation Setup and Safety:LOTO & Voltage Check.

Verify the generator set and station bus are locked out/tagged out (LOTO). Put on a grounded anti-static wrist strap before handling terminal leads. Inspect the BE3-25A metal enclosure for shipping damage. Confirm that sensing inputs match the 120 V AC potential transformer (PT) output lines.

2.Removing the Legacy Synchronizer:Label Potentiometers & Wiring.

Record the current front-panel dial settings for phase angle tolerance, voltage differential, and dead-bus thresholds on the existing unit. Label all wiring connected to the sensing input terminals, governor correction outputs (raise/lower or bipolar), and breaker trip coil lines. Unscrew and remove the unit from the panel.

3.Mounting and Wiring the New Unit:Set Switches & Wire Terminals.

Secure the BE3-25A into the control panel enclosure. Replicate the DIP switch and potentiometer settings recorded from the old unit. Connect the BUS PT and GEN PT lines to their respective sensing terminals, and wire the correction outputs to the electronic governor (Woodward, Barber-Colman) and AVR inputs.

4.Power-On & Commissioning Verification:Phase Alignment & Trip Test.

Apply control power and observe that the front-panel Power LED illuminates green. Run the generator in manual mode without closing the main breaker. Verify that the BE3-25A actively issues speed/voltage correction signals until the Sync LED illuminates and the breaker close contact energizes smoothly.

Firmware/Software Versions & Upgrade Notes

• Operating Nature: Pure hardware-based analog/digital hybrid synchronizing relay; requires no firmware loads, PC software tools, or network address programming.
• Governor Correction Signal Compatibility:
  • Option Type W: Bipolar signal output configured for Woodward 2301, 2301A, and 1712–1724 series governors.
  • Option Type B: Compatible with Barber-Colman electronic summing point governors.
  • Dry Contact Option: Raise/Lower relay contacts rated 2 A at 240 V AC / 28 V DC for discrete motor-operated potentiometers or digital governor inputs.
• Drop-in Replacement Safety: Because settings are established entirely via front-panel pots and internal jumpers, swapping units requires zero software migration. Always verify phase rotation (A-B-C) on both bus and generator PTs prior to initial breaker closure.

Frequently Asked Questions (FAQ)

Q: Is this Basler BE3-25A auto-synchronizer brand new or refurbished?

A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All internal transformers, calibration circuits, and relay contacts retain factory-original specifications with zero electrical operating hours.

Q: What is the main difference between a sync-check relay (BE3-25) and an auto-synchronizer ()?

A: A standard sync-check relay (BE3-25) is a passive monitoring device that only permits manual breaker closure when two sources happen to align. The auto-synchronizer () is an active control device; it actively sends speed and voltage correction signals to the generator’s governor and voltage regulator to bring an out-of-sync generator into alignment automatically.

Q: Why shouldn’t I buy a cheaper refurbished auto-synchronizer for generator control?

A: Paralleling a generator out of phase is one of the most destructive electrical events in a power plant. Refurbished synchronizers frequently suffer from aged capacitors and drifted phase-comparator circuits. A minor delay in breaker contact execution can cause severe mechanical shearing of generator shafts. Paying 20–30% more for New Surplus guarantees OEM timing accuracy and complete operational safety.

Q: How does the Dead-Bus feature work on the ?

A: The optional dead-bus feature allows the to close the generator breaker onto a completely de-energized station bus during emergency black-start conditions. The dead-bus voltage threshold is adjustable from 10 to 50 V AC on the unit.

Q: What warranty coverage is provided with this New Surplus unit?

A: Every unit undergoes complete visual, electrical isolation, and power-up verification prior to shipment. It is backed by our standard 1-year functional replacement warranty.
