Bender IRDH575B2W-435 Insulation Monitoring Device IT Systems

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Bender IRDH575B2W-435 ISOMETER is an advanced insulation monitoring relay designed for demanding ungrounded (IT) power distribution systems in solar energy plants, industrial automation facilities, marine installations, and heavy processing environments. Powered by Bender’s patented AMP-Plus measurement technology, it accurately evaluates ground insulation resistance across modern electrical networks containing variable frequency drives (VFDs), power electronics, and DC buses without triggering false alarms from system leakage capacitance.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.

Refurbished insulation monitors pose severe operational risks due to drifted reference resistors, degraded measurement transformers, and dried-out power supply capacitors. An undetected ground fault in an IT power grid can result in catastrophic second-fault short circuits, arc flashes, and sudden facility power failure. Sourcing genuine New Surplus inventory guarantees factory-calibrated measurement precision, lowers your Total Cost of Ownership (TCO), and provides an exact drop-in hardware replacement without necessitating panel re-engineering or electrical re-certification.

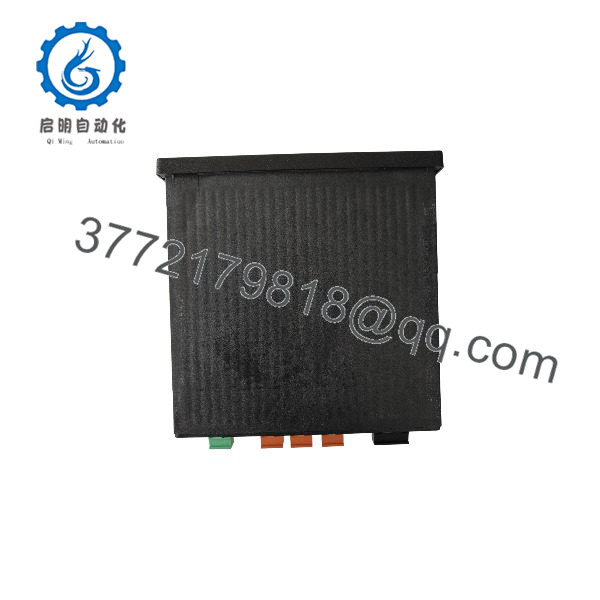

IRDH575B2W-435

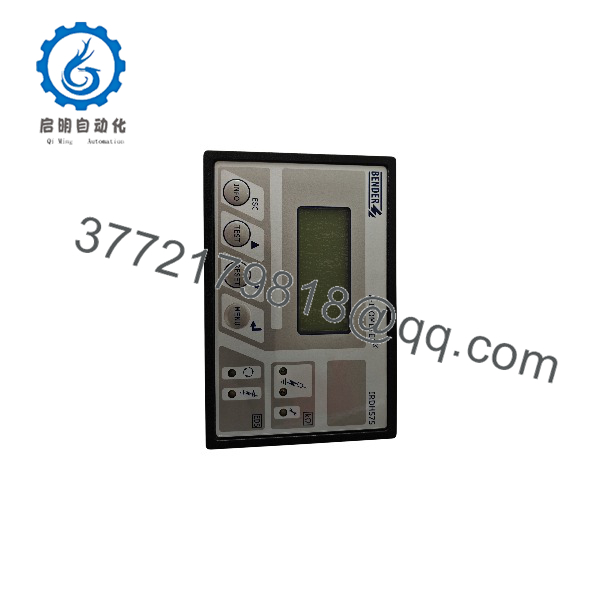

IRDH575B2W-435

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO) procedures on both the main monitored network supply (Un) and auxiliary control voltage (Us).
2. Put on an anti-static wrist strap connected to a verified panel grounding bus to prevent electrostatic discharge (ESD) damage.
3. Document existing parameter configurations (R_{an1}, R_{an2} alarm response values, relay operation modes, and BMS network addresses) from the legacy unit.

Stage 2: Removal

1. Disconnect the terminal wiring harnesses from the rear and sides of the IRDH575 housing.
2. Undo the panel door mounting brackets or retaining frame screws holding the unit in place.
3. Carefully slide the module forward out of the panel cutout and place it into ESD-safe packaging.

Stage 3: Installation (Clone & Seat)

1. Position the replacement IRDH575B2W-435 into the panel cutout and tighten the mounting frame clamps evenly to establish a secure mechanical fit.
2. Reconnect the wiring connectors, ensuring that system coupling terminals and ground reference connections (E/KE) are firmly torqued.
3. Apply auxiliary supply power (Us) and navigate the front panel LCD menu to configure alarm thresholds, relay modes, and communication parameters to match original project settings.

Stage 4: Power-On & Testing

1. Apply main system voltage (Un) to the monitored power bus.
2. Observe the LCD screen to confirm the system displays stable real-time insulation resistance values in MΩ without fault indications.
3. Press the front panel TEST button to initiate an internal self-test cycle; verify that alarm LEDs illuminate and output relays trigger as configured.

Firmware/Software Versions & Upgrade Notes

• System Compatibility: Ensure the device software and BMS protocol configuration match connected remote indicator panels (e.g., Bender MK2430 / TM series) or SCADA gateways.
• Backward Compatibility: The IRDH575 series retains functional compatibility across classic Bender panel-mount footprints; however, verify analog signal scaling parameters (0–20 mA vs 4–20 mA) during setup.
• Firmware Risks: Never disconnect auxiliary power while saving parameters or executing system resets. Interrupted EEPROM writes can corrupt system memory, causing startup fault loops.

Frequently Asked Questions (FAQ)

Q: Is this Bender IRDH575B2W-435 unit genuine New Surplus or a refurbished module?

A: This unit is 100% genuine New Surplus. It has zero field operating hours, pristine terminal connectors, unmarred casing brackets, and original factory calibration. It is not used, repaired, or refurbished.

Q: Why should I choose New Surplus over a cheaper refurbished IRDH575B2W-435?

A: Refurbished insulation relays often suffer from drifted internal measurement tolerances and aged internal power supplies. In ungrounded IT networks, a compromised monitor may fail to detect insulation breakdown, leading to destructive double-phase ground faults. New Surplus guarantees original OEM safety performance and full service life.

Q: How is the IRDH575B2W-435 verified before shipment?

A: Every unit undergoes multi-point Quality Control bench verification. Technicians conduct physical casing checks, perform auxiliary power-up boot testing, verify LCD menu navigation, and conduct functional test/reset loop checks to confirm relay operation.

Q: Is the Bender still actively produced by the OEM?

A: The IRDH575 series is a legacy model from Bender. Acquiring New Surplus units enables plant maintenance teams to maintain strategic buffer stock, allowing direct hardware swaps without redesigning cabinet cutouts or upgrading to new product lines.

Q: Does this unit require external coupling devices for high-voltage networks?

A: Direct system connections depend on the specific voltage rating of the network. For higher system voltages (e.g., 1000 V or higher), an external Bender coupling device (such as the AGH series) must be utilized alongside the monitor.

Q: What warranty coverage applies to this module?

A: This New Surplus Bender includes a standard 1-Year functional replacement warranty covering electronic and manufacturing defects.
