Bentec GEUX30-1000-001 Incremental Shaft Encoder 1000 PPR

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Bentec GEUX30-1000-001 is a ruggedized incremental encoder designed for oilfield automation, top drives, drawworks, and automated pipe handling systems. Engineeered by Bentec to withstand extreme environmental conditions—including high vibration, wide temperature swings, and exposure to mud, oil, and moisture—the GEUX30 series delivers precise rotational speed and positioning feedback to PLC and VFD motor control loops.

Because unexpected encoder failure on a drilling rig top drive can bring pipe-handling operations to a complete standstill, securing verified GEUX30-1000-001 units as critical site spares is vital. A compromised or degraded encoder often causes erratic motor speed control, false overspeed trips, or inaccurate shaft positioning. Installing genuine, high-grade replacement units ensures stable closed-loop speed regulation and prevents costly rig non-productive time (NPT).

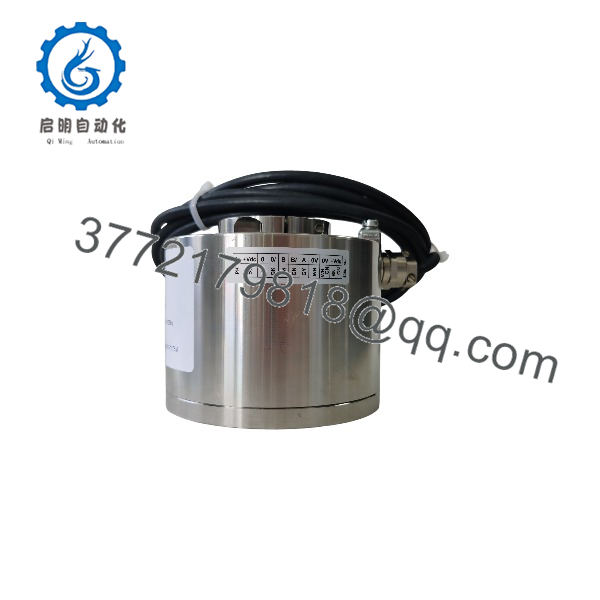

GEUX30-1000-001

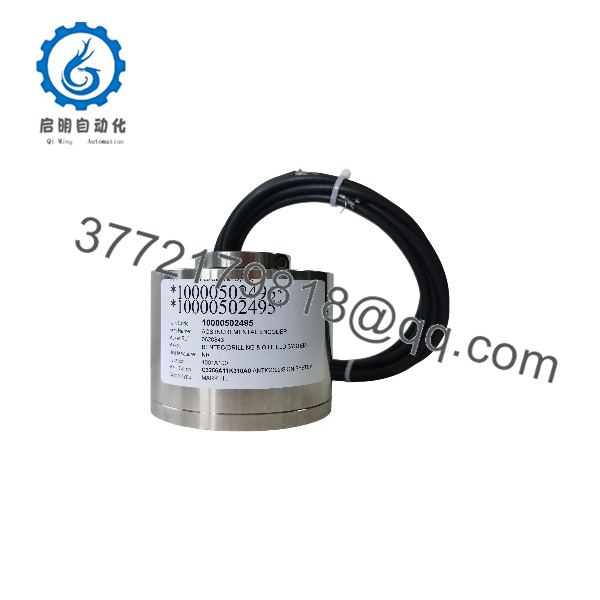

GEUX30-1000-001

Installation & Configuration Guide

1.Pre-Installation & Safety:Isolate drive power and apply safety locks.

Disconnect power to the motor drive/VFD system and follow Lock-Out/Tag-Out (LOTO) procedures. Clean around the shaft mounting area to remove grease, drilling mud, and particulate debris.

2.Removal of Legacy Unit:Disconnect cable and unbolt mounting flange.

Unplug or label and disconnect the signal wiring harness. Loosen the shaft coupling or clamping collar, remove the flange mounting hardware, and carefully pull the damaged encoder straight off the motor shaft.

3.Mechanical & Electrical Mounting:Align shaft coupling and secure encoder body.

Inspect the motor shaft for wear or burrs. Mount the new GEUX30-1000-001, ensuring flexible coupling alignment to prevent excessive radial/axial bearing loads. Reconnect the heavy-duty signal cable connector, verifying IP-rated seal tightness.

4.Commissioning & Signal Test:Verify signal pulse counts and closed-loop direction.

Reapply power to the encoder feedback loop. Rotate the motor shaft at low speed to confirm channel A/B phase sequence and 1000 PPR count accuracy on the VFD/PLC control interface.

Firmware & Control System Compatibility

• Standard Interface: Operates as a passive hardware sensor requiring no embedded firmware flashing or software installation.
• PLC/VFD Parameterization: Ensure the motor drive or PLC high-speed counter card parameter is configured for 1,000 PPR quadrature evaluation (x1, x2, or x4 decoding).
• Wiring Precaution: Always use shielded twisted-pair cabling for signal lines (A, A-bar, B, B-bar, Z, Z-bar) to protect feedback signals from EMI generated by high-power VFD output cables.

Frequently Asked Questions (FAQ)

Q: What does the 1000 in the part number GEUX30-1000-001 signify?

A: It indicates the encoder’s resolution of 1,000 pulses per revolution (PPR) for incremental position and speed measurement.

Q: Where is this encoder typically used on a drilling rig?

A: It is commonly deployed on top drive main motors, mud pump drives, drawworks position feedback assemblies, and iron roughnecks for automated torque and rotation control.

Q: Can a failing encoder cause VFD overspeed or tracking faults?

A: Yes. Missing pulses, noise interference, or internal optical disc damage will disrupt the drive controller’s speed feedback loop, frequently causing speed deviation alarms, erratic torque, or sudden drive trips.

Q: What is the benefit of keeping a spare GEUX30 encoder on the rig site?

A: Having a ready-to-install spare encoder minimizes NPT during drilling operations, allowing maintenance crews to swap out a faulty feedback unit within minutes rather than waiting for field logistics delivery.
