Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 125840-01 |
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Product Series | 3500 Machinery Protection System |
| Associated Power Platform | 3500/15 Power Supply System |
| Product Type | Legacy high-voltage AC Power Input Module, PIM |
| Primary Function | Routes field AC power to the associated 3500/15 power-supply module |
| Input Voltage Range | 175 to 264 V AC RMS |
| Input Frequency | Verify against the installed 3500/15 power-supply documentation and site supply specification |
| Physical Position | Rear of the 3500 rack, behind the associated left-side power-supply slot |
| Associated Supply Configuration | Legacy high-voltage AC 3500/15 power-supply arrangement |
| Rack Power Arrangement | One supply can power a full rack; a second installed supply can provide redundancy |
| Rack Location | Designated half-height power-supply positions on the left side of a 3500 rack |
| Field Wiring Role | AC mains input termination and routing into the corresponding power-supply module |
| Protection Behavior | The PIM fuse can open during an overvoltage event; low input voltage does not normally damage the PIM or supply |
| Approximate Weight | 0.34 kg / 0.75 lb |
| Operating Temperature | −30 to +65 °C |
| Storage Temperature | −40 to +85 °C |
| Humidity | Up to 95%, non-condensing |
| Lifecycle Status | Legacy high-voltage AC PIM; public lifecycle references identify it as phased out / obsolete |
| Migration Warning | A transition to the newer universal AC arrangement requires the correctly matched 3500/15 universal AC supply module and universal AC PIM, with engineering review of wiring and approvals |
The Bently Nevada 125840-01 is a legacy high-voltage AC Power Input Module for 3500/15 rack power systems. It installs at the rear of the rack behind its associated supply and accepts 175–264 V AC RMS. The 3500/15 platform supports one or two power supplies, with either supply able to power a full rack and the second serving as redundancy.
Product Introduction
The Bently Nevada 125840-01 is the rear high-voltage AC Power Input Module for a legacy 3500/15 machinery-protection rack power configuration. It accepts plant AC mains in the 175–264 V AC RMS range and routes that power into the matching 3500/15 high-voltage AC power-supply module installed in the left-side rack power position.
This part is not the front power-supply converter. It is the rear PIM that terminates and interfaces incoming field power to the associated supply. Match the existing PIM label, front supply-module part number, supply voltage, rack position, redundancy arrangement, agency requirements, and field wiring before replacing it.

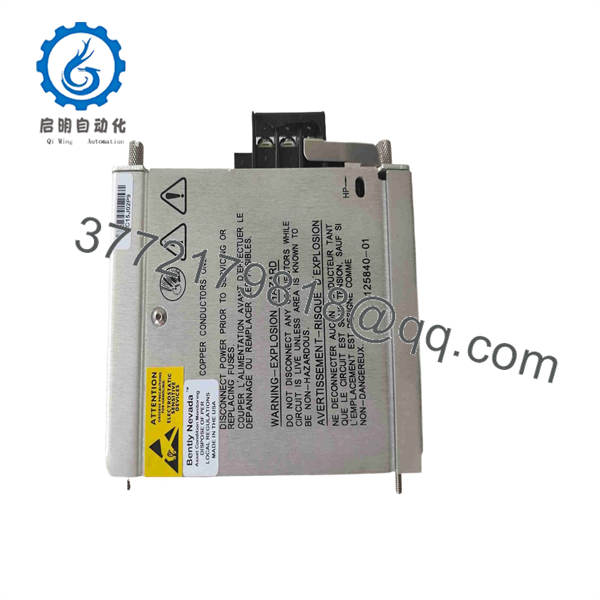

125840-01 3500/15

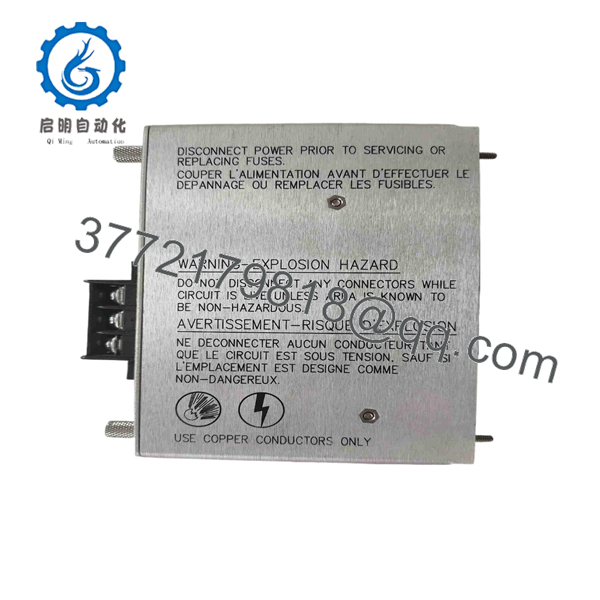

125840-01 3500/15
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Entire 3500 rack has no power | Facility supply loss, open breaker, blown upstream fuse, failed 3500/15 supply, failed PIM, loose mains wiring | ✅ Medium | Follow the site’s electrical-safety procedure. Measure incoming AC voltage at the upstream disconnect and PIM input terminals. Check breaker, fuse, and rack power indicators. | Confirm plant power and upstream protection first. Do not replace the 125840-01 until the input supply is verified. |
| One redundant power-supply channel shows failed | Failed front supply module, blown PIM fuse, missing AC input, loose PIM, PIM wiring fault | ✅ High | Compare the two supply channels. Measure AC input at each PIM and inspect the front supply LEDs and rack diagnostics. | Identify whether the fault follows the PIM, front supply, or incoming feed. Replace only the failed component after controlled testing. |
| PIM fuse opens repeatedly | Overvoltage, short circuit downstream, wrong supply configuration, damaged field wiring, surge event | ✅ High | Isolate power. Inspect for damaged insulation, loose conductors, burn marks, and incorrect supply-module/PIM pairing. Measure actual mains voltage and investigate recent switching or surge events. | Do not replace or oversize the fuse without finding the cause. Correct the overvoltage, wiring, or supply defect first. |
| Rack resets during large plant loads | AC undervoltage, voltage sag, loose terminal, unstable incoming supply, failing power-supply module | ✅ Medium | Use a power-quality meter or data logger to record AC voltage during motor starts, breaker transfers, or process load changes. Inspect terminal torque. | Correct the supply-quality issue or loose connection. A low-voltage condition is more likely upstream than in the PIM. |
| Replacement PIM does not fit or rack remains unpowered | Wrong PIM type, wrong front supply pairing, wrong rack slot, connector damage, wiring not restored | ✅ High | Compare old and new PIM labels, front supply part number, rear connector, rack slot, and terminal wiring. Confirm the replacement is exactly 125840-01. | Do not force the module. Install only the correct high-voltage AC PIM matched to the legacy supply configuration. |
| Rack powers up but individual monitors show faults | Monitor card issue, TDI fault, backplane issue, system configuration issue | ❌ Low | Check whether rack power rails are healthy, then review individual monitor status and TDI diagnostics. | Do not replace the 125840-01 for an individual monitor fault after the rack has stable power. |
| Burnt terminals or heat discoloration | Loose mains terminal, undersized conductor, overload, poor torque, corrosion | ✅ High | De-energize and lock out. Inspect terminals, wire gauge, conductor condition, and torque against the approved drawing. Use infrared inspection if permitted. | Replace heat-damaged PIM hardware and conductors. Correct termination torque and conductor sizing before re-energizing. |
| Rack remains powered after one AC feed is removed | Redundant 3500/15 supply is carrying the rack load | ❌ Low | Check both installed supply indicators and verify the removed feed corresponds to the affected redundancy path. | This can be normal in a redundant system. Restore the failed path under planned maintenance, then prove redundancy. |
| New PIM causes a power fault immediately | Miswired line/neutral or phase connection, incorrect supply voltage, incompatible front supply, damaged PIM | ✅ High | Isolate immediately. Compare all field wiring with the rack drawing and verify actual line voltage before reapplying power. | Correct wiring and pairing. Do not cycle power repeatedly into a faulted configuration. |
| Moisture or contamination inside the rear rack area | Panel ingress, poor enclosure sealing, condensation, contaminated atmosphere | ✅ Medium | Lock out and inspect the PIM, rack rear, cable entries, and enclosure seals for corrosion, tracking, or residue. | Replace contaminated hardware and correct the enclosure issue before return to service. |
❗ The 125840-01 is a rear PIM, not the 3500/15 front power-supply module. It routes incoming AC power to the supply module. Replacing it will not repair a failed front supply, an open plant breaker, or a rack backplane fault.
❗ Do not use it on a low-voltage AC or DC arrangement. The 125840-01 is for the legacy high-voltage AC input configuration, documented at 175–264 V AC RMS. Confirm the actual site supply with a meter and compare the front supply and rear PIM labels before ordering.
❗ Treat the rack as energized until proven otherwise. This module interfaces with plant mains. Apply lockout/tagout, verify absence of voltage using approved test methods, and follow site electrical-work procedures before opening the rear rack area or moving terminals.
❗ Plan migration rather than waiting for failure. Public lifecycle references identify the 125840-01 as phased out. If your machinery-protection rack depends on this configuration, document the matched supply/PIM pair and plan a controlled conversion to the applicable universal AC power arrangement with OEM engineering review.
If the fault remains unclear, provide technical support with photos of the 125840-01 label, associated front 3500/15 supply label, rear rack position, terminal wiring, supply-voltage measurements, fuse condition, rack power LEDs, and current rack configuration. Keep these checks in mind and you will save yourself 90% of typical rework time.
Frequently Asked Questions (FAQ)
What is the Bently Nevada 125840-01?
The 125840-01 is a Bently Nevada high-voltage AC Power Input Module, or PIM, used with a legacy 3500/15 power-supply arrangement. It installs at the rear of the 3500 rack and routes incoming AC power to the matching front power-supply module.
Is the 125840-01 the actual 3500/15 power supply?
No. It is the rear power input module, not the front power-supply converter. The PIM receives and routes the field AC input; the front 3500/15 supply module converts that input into the internal voltages required by the 3500 rack.
What input voltage does it accept?
The legacy high-voltage AC PIM is documented for 175–264 V AC RMS input. Measure the actual plant supply and verify the associated front supply configuration before installing it.
Can one 3500/15 supply power an entire rack?
Yes. The 3500/15 datasheet states that either one installed power supply can power a full 3500 rack. If two are installed, the second provides redundant backup capability.
Is 125840-01 interchangeable with 125840-02?
No. Public listings identify 125840-01 as the high-voltage AC PIM and 125840-02 as a low-voltage AC PIM. Do not select a PIM based only on physical appearance. Match the installed PIM number, front power-supply type, input voltage, rack wiring, and documentation.
Can I hot-swap the 125840-01?
Do not assume it is hot-swappable. It carries incoming mains power and its removal can interrupt a rack power path. Even in a redundant rack, service must follow the approved electrical-isolation, lockout/tagout, machinery-protection, and redundancy-verification procedure.
Why did the PIM fuse open?
The available product information states that undervoltage does not normally damage the PIM or supply, while overvoltage can open the PIM fuse. Repeated fuse operation may also indicate wiring damage, an incorrect front supply/PIM combination, a downstream fault, or a surge event. Find the root cause before replacing the PIM or fuse.
Is the 125840-01 obsolete, and should I stock a spare?
Yes. Public lifecycle information identifies this legacy high-voltage AC PIM as phased out. If it is installed in a critical 3500 machinery-protection rack, retain a verified spare with the matching legacy power-supply module and document the rack wiring, input voltage, redundancy arrangement, approvals, and transition plan. For a long-term solution, evaluate a controlled upgrade to the correct matched universal AC supply and PIM configuration.
