Bently Nevada 125840-01 175-264 VAC Power Input Module

Description

Key Technical Specifications

The 3500/15 accepts one or two power supplies. With two correctly configured supplies installed, the lower position functions as primary and the upper position as backup.

Important compatibility note: Older 3500/15 hardware combinations may have narrower voltage limits than the 175–264 VAC RMS range. Verify the revision combination of the PIM and associated power-supply module before applying the newer voltage specification.

Product Introduction

The Bently Nevada 125840-01 is a high-voltage AC Power Input Module used with the 3500/15 power-supply assembly in a 3500 Machinery Protection System. It provides the rear-side AC power input interface for systems using approximately 220 VAC nominal input and 175–264 VAC RMS operation.

This is a PIM, not a complete 3500/15 power-supply module. The distinction matters when ordering a replacement. The 125840-01 is associated with high-voltage AC configurations using the 3500/15 architecture and should be matched against the installed power-supply revision before replacement.

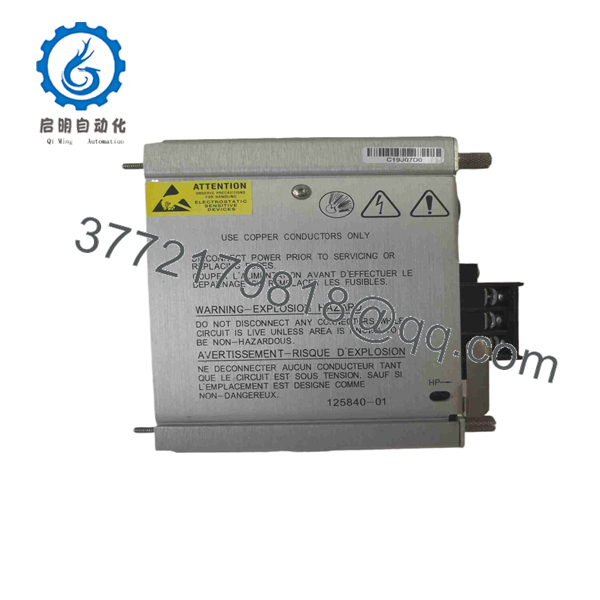

125840-01

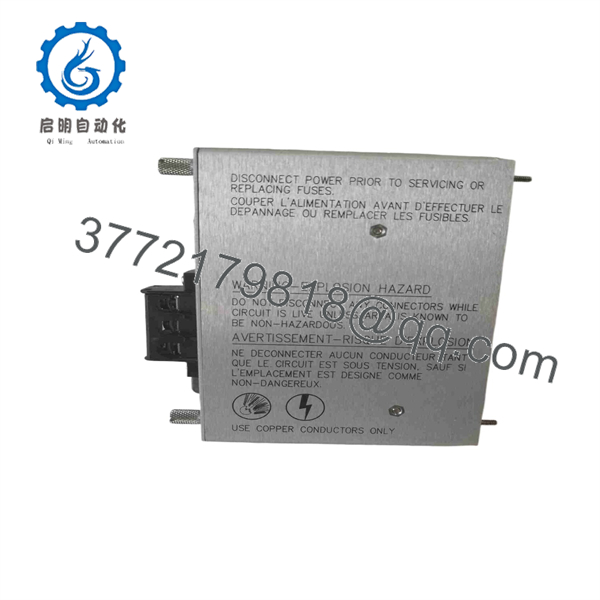

125840-01

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Estimated time: 5–8 minutes

⚠️ Safety First: The 125840-01 handles potentially hazardous AC voltage. Notify operations, place the machinery in a safe operating state, apply lockout/tagout, and verify that the applicable AC supply is isolated before accessing the PIM.

1. Obtain the replacement 125840-01 and verify the complete part number.
2. Confirm that the existing system uses the 3500/15 high-voltage AC configuration.
3. Record the installed power-supply part number and revision.
4. Photograph the existing rear terminal arrangement before disconnecting anything.
5. Label every incoming AC conductor before removal.
6. Use an ESD strap when handling the module.
7. Keep the original PIM beside the work area until commissioning is complete.

Tools Required

• ESD wrist strap
• Appropriate insulated screwdriver
• Digital multimeter
• Wire labels
• Smartphone or camera for configuration photographs

⚠️ Do not assume that every 3500/15 AC combination has the same permissible input range. Check the hardware revision and applicable manual before energizing the replacement.

Stage 2: Removing the Old Module

Estimated time: 5 minutes

1. Isolate and verify the AC supply is de-energized.
2. Remove the applicable rack/power-supply access hardware.
3. Photograph the terminal arrangement again before disconnecting conductors.
4. Label and disconnect the AC wiring without pulling on terminals.
5. Release the module’s retaining hardware.
6. Pull the module straight out rather than twisting it against the mating hardware.
7. Inspect the mating connectors, terminals, and surrounding rack area for contamination, discoloration, damaged insulation, or loose hardware.

⚠️ Keep the removed 125840-01 available for comparison until the replacement has passed operational checks.

Stage 3: Installing the New Module

Estimated time: 5–8 minutes

1. Confirm that the replacement is exactly Bently Nevada 125840-01.
2. Compare the replacement against the removed unit for connector arrangement and physical configuration.
3. Do not substitute 125840-02. That part is associated with the low-voltage AC configuration.
4. Install the PIM in the designated 3500/15 position.
5. Ensure the module seats correctly without forcing the connector.
6. Reconnect the AC wiring according to the applicable 3500/15 wiring documentation.
7. Tighten terminals using the specified torque from the applicable installation documentation.
8. Verify that no conductor strands are exposed and that protective earth/ground connections are correctly restored.

Self-Checklist

• Part number verified
• High-voltage AC configuration confirmed
• Wiring labels verified
• Connector fully seated
• Retaining hardware secured
• Grounding checked
• No exposed conductor strands

Stage 4: Power-On & Testing

Estimated time: 10–15 minutes

1. Before energizing, perform a visual inspection of the complete AC input circuit.
2. Use an appropriate meter and electrical safety procedure to verify the expected supply condition.
3. Energize the 3500/15 according to the site’s approved startup procedure.
4. Observe the power-supply status indicators.
5. Verify that the rack reaches its normal operating state.
6. If a redundant power supply is installed, verify the expected primary/backup arrangement.
7. Confirm that the 3500 rack monitoring modules return to normal operation.
8. Review rack alarms and system status.
9. If possible, compare operating voltage and status indications against the pre-replacement records.
10. Record the replacement part number and installation date in the site’s maintenance history.

⚠️ Do not repeatedly cycle the AC supply while troubleshooting. If the rack fails to start, isolate the supply and investigate the PIM, associated 3500/15 power-supply module, incoming voltage, fuse/protection circuitry, and wiring systematically.

Common replacement trap: The 125840-01 is not interchangeable with the low-voltage 125840-02 merely because both belong to the 3500/15 family. Match the PIM to the actual power-supply configuration.

Frequently Asked Questions (FAQ)

1. Can the Bently Nevada 125840-01 be hot-swapped?

The 3500/15 architecture can maintain rack operation when a power-supply module is removed or inserted if a correctly configured redundant power supply is installed. That does not mean the 125840-01 should be removed under power without following the applicable Bently Nevada service procedure. For maintenance involving exposed high-voltage AC terminals, isolate the hazardous energy first.

2. Is the 125840-01 the complete 3500/15 power supply?

No. This is an important ordering distinction. 125840-01 is the High Voltage AC Power Input Module (PIM). The associated front power-supply hardware has its own part number, such as 127610-01 in legacy AC configurations.

3. What voltage does the 125840-01 accept?

The documented high-voltage AC configuration uses 220 VAC nominal, with a listed range of 175–264 VAC RMS and 47–63 Hz. Some older PIM/power-supply combinations have narrower limits, so check the exact hardware revision before applying the full range.

4. Can I replace 125840-01 with 125840-02?

No—not as a direct like-for-like substitution. 125840-01 is the high-voltage AC PIM, while 125840-02 is the low-voltage AC PIM. The associated 3500/15 configuration must match the selected PIM.

5. Is 125840-01 obsolete?

Several current spare-parts sources identify the 125840-01 as discontinued/obsolete, while other suppliers still list new surplus or new-original inventory. Treat availability as stock-dependent rather than assuming ongoing OEM production.

6. Why does a replacement 125840-01 cost less than the original OEM price?

Usually this comes down to inventory source rather than a different electrical design. Industrial surplus may originate from unused project stock, plant closures, discontinued inventory, or specialist spare-parts channels. Condition must be stated explicitly—new original, new surplus, or refurbished/tested. Do not treat those categories as equivalent.

7. What should I verify before ordering?

Give the supplier the complete 125840-01 part number, the installed 3500/15 power-supply part number, hardware/revision information if available, and your required condition. Also verify whether you need only the PIM or the complete power-supply assembly. This prevents the common mistake of ordering a compatible-looking front power module while the actual failed component is the rear PIM.
