Bently Nevada 125840-02 3500/15 Low Voltage AC PIM

Description

Key Technical Specifications

The 125840-02 is specifically identified in Bently Nevada 3500/15 documentation as the Low Voltage AC Power Input Module (PIM). It is not the complete 3500/15 power supply module. The associated AC power supply module is separately identified as 127610-01.

For the legacy low-voltage AC configuration, the documented input range is 85–132 VAC RMS at 47–63 Hz. The published maximum input current is 4.5 A RMS, with maximum input power of 194 W.

The PIM occupies a dedicated half-height position directly behind the associated 3500/15 power supply. The published PIM dimensions are 120.7 × 25.4 × 114.3 mm, with an approximate weight of 0.34 kg.

Product Introduction

The Bently Nevada 125840-02 is a Low Voltage AC Power Input Module used with the 3500/15 Power Supply in Bently Nevada machinery monitoring systems. It is specified for 110 VAC nominal operation, with an input range of 85–132 VAC RMS at 47–63 Hz.

The important procurement point is the distinction between the PIM and the power supply itself. The 125840-02 is the AC input module; 127610-01 is the associated AC power supply module. Verify the existing rack configuration and exact part number before ordering a replacement.

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation — Approximately 5–10 Minutes

⚠️ Safety First: The 125840-02 interfaces with hazardous AC power. Do not treat this as a low-voltage signal module.

1. Notify operations and place the machinery monitoring system in the approved maintenance state.
2. Apply lockout/tagout (LOTO) to the relevant power source.
3. Verify that the AC input is de-energized with an appropriately rated multimeter.
4. Allow the system to discharge before handling the module. Bently Nevada documentation specifically warns that hazardous voltage can remain after power removal and instructs technicians to wait several minutes before handling power-supply components.
5. Prepare an ESD wrist strap, PH1 screwdriver, multimeter, wire labels, and smartphone or camera.
6. Photograph the installed 3500/15 power-supply arrangement before removal.
7. Record the existing PIM part number, revision markings, wiring arrangement, and rack position.

Tools Required

• ESD wrist strap and grounded work surface
• Appropriately rated multimeter
• PH1 screwdriver
• Wire labels
• Camera or smartphone
• Site-approved insulated tools where required

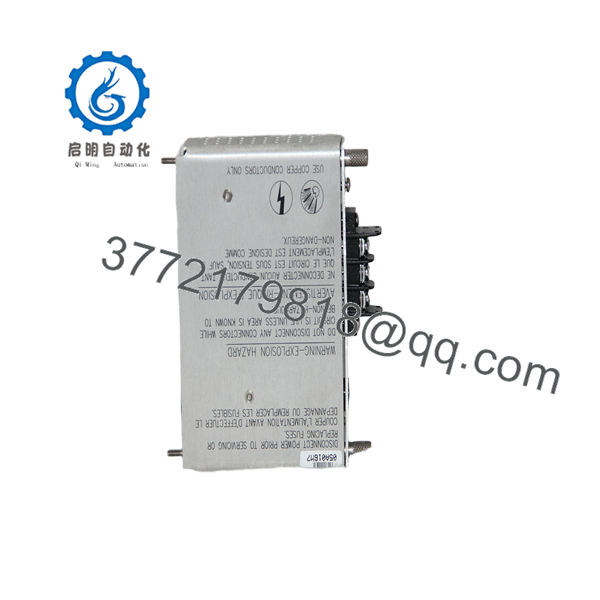

125840-02

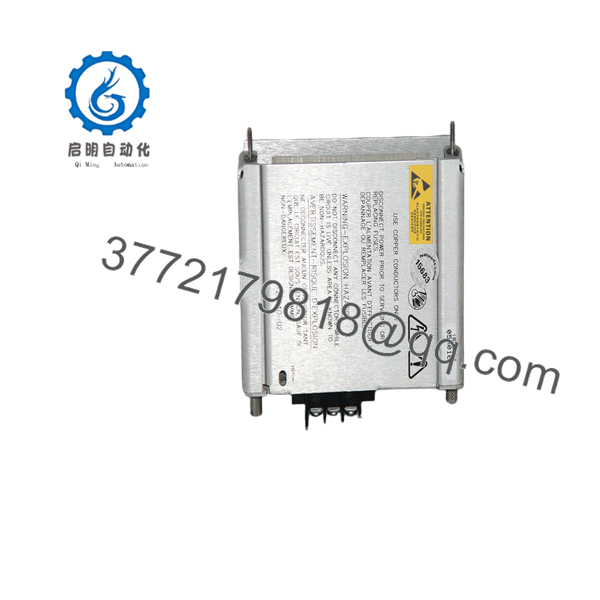

125840-02

Stage 2: Removing the Existing Module — Approximately 5 Minutes

1. Confirm the rack is de-energized and the AC input has been verified at zero voltage.
2. Remove the appropriate cover or access hardware according to the 3500/15 installation procedure.
3. Photograph the wiring before disconnecting anything.
4. Label conductors individually if the installation does not already have permanent identification.
5. Disconnect the wiring without pulling on insulation or forcing terminals.
6. Release the applicable mounting or retaining hardware.
7. Remove the PIM carefully and keep it available for comparison with the replacement.
8. Inspect the surrounding rack area for contamination, damaged connectors, loose hardware, or signs of overheating.

⚠️ Do not discard the original module immediately. Keep it beside the replacement until the rack has completed operational testing.

Stage 3: Installing the Replacement — Approximately 5–10 Minutes

1. Confirm that the replacement is 125840-02, not the visually similar 125840-01 high-voltage AC PIM.
2. Compare the physical arrangement of the replacement with the removed module.
3. Inspect connectors, terminals, mounting surfaces, and visible insulation for damage.
4. Use ESD precautions while handling the module.
5. Position the 125840-02 in the correct dedicated PIM location behind the associated 3500/15 power supply.
6. Secure the module using the correct retaining hardware.
7. Reconnect wiring according to the documented installation drawing.
8. Do not assume the wiring is identical simply because the replacement has the same part number family. Verify terminal identification against the applicable 3500/15 documentation.
9. Confirm that all connections are mechanically secure.
10. Inspect the completed installation before restoring power.

Replacement Self-Checklist

• Part number confirmed: 125840-02
• Correct low-voltage AC PIM identified
• Input wiring verified
• Connections secured
• No damaged insulation or terminals
• Mounting hardware secured
• Original module retained for comparison
• LOTO remains in place until final pre-power inspection

Stage 4: Power-On & Testing — Approximately 10 Minutes

1. Perform a final visual inspection.
2. Confirm that the AC supply voltage is appropriate for the 125840-02 input specification.
3. Verify that no wiring short or unintended connection exists.
4. Remove LOTO only under the site’s approved energization procedure.
5. Restore power to the 3500/15 rack.
6. Observe the power-supply status indication.
7. Confirm that the associated 3500/15 power supply reaches its normal operating state.
8. Check the 3500 rack for power-supply alarms or fault indications.
9. Verify the monitoring modules return to their expected operating condition.
10. Confirm communication with the supervisory or host system.
11. Review system diagnostics before returning the monitored machinery to normal service.

Troubleshooting Notes

If the 3500/15 does not indicate normal power status:
Do not immediately assume the replacement PIM is defective. First verify the incoming AC voltage, fuse condition, wiring, connector seating, and the associated power supply module.

If the rack remains without power after the PIM replacement:
Check the associated 127610-01 AC Power Supply Module and the rack power path. The 125840-02 and 127610-01 are separate components.

If the input voltage is outside 85–132 VAC RMS:
Stop. The 125840-02 is the low-voltage AC PIM. A high-voltage AC installation uses a different PIM, identified as 125840-01 in the 3500/15 spare-parts documentation.

If the replacement appears physically correct but does not operate:
Verify the exact part number, revision, connector condition, fuse, associated power supply, and rack configuration before condemning the module.

Important Replacement Warning

❗ Do not substitute 125840-01 for 125840-02 solely because both belong to the 3500/15 family. The two PIMs correspond to different AC input voltage ranges. 125840-01 is the high-voltage AC PIM, while 125840-02 is the low-voltage AC PIM.

Also, do not assume the PIM itself is the complete power supply. The 3500/15 architecture uses a power supply module together with its corresponding power input module.

Frequently Asked Questions (FAQ)

Can I hot-swap the Bently Nevada 125840-02?

Do not assume that the 125840-02 can be removed under power simply because the 3500/15 can be configured with redundant power supplies. The PIM interfaces with AC power, so the safe replacement procedure should follow the applicable Bently Nevada installation documentation and the plant’s electrical safety procedure. De-energize and verify the circuit unless the exact rack configuration and approved procedure explicitly permit otherwise.

Is 125840-02 the complete 3500/15 power supply?

No. This distinction matters when ordering spares. 125840-02 is the Low Voltage AC Power Input Module (PIM). The associated AC power supply module is separately listed as 127610-01.

What input voltage does 125840-02 accept?

The documented legacy specification is 85–132 VAC RMS, with a nominal input of 110 VAC and an input frequency of 47–63 Hz. Maximum input current is listed as 4.5 A RMS, with maximum input power of 194 W.

What is the difference between 125840-01 and 125840-02?

Both are 3500/15 AC Power Input Modules, but they are intended for different input-voltage ranges.

• 125840-01: High Voltage AC PIM, 175–264 VAC RMS
• 125840-02: Low Voltage AC PIM, 85–132 VAC RMS

Do not interchange them without verifying the complete rack configuration and applicable documentation.

Is Bently Nevada 125840-02 obsolete?

The part belongs to the established 3500/15 legacy architecture, and current commercial availability varies by supplier. The published 3500/15 documentation identifies 125840-02 as the Low Voltage AC PIM spare part.

For procurement, confirm actual stock condition, manufacturing date, revision, and warranty rather than relying only on a website’s “in stock” indicator.

Will replacing 125840-02 erase my 3500/15 monitoring configuration?

The PIM is a power-input component rather than the system configuration storage element. Nevertheless, treat any 3500 rack power intervention as a controlled maintenance activity. Record the existing rack condition and verify all monitor modules, alarms, communications, and power-supply indications after energization.

Why is a replacement 125840-02 sometimes priced well below OEM list pricing?

Industrial automation spare-parts pricing varies substantially according to stock source, age, condition, packaging, traceability, and warranty. A lower price does not by itself establish that a module is counterfeit or defective.

For procurement, request the exact condition classification—for example, Factory Sealed, New Original/New Surplus, or Refurbished/Tested—along with photographs of the actual part label, serial information where applicable, and the supplier’s warranty terms.

What should I verify before ordering 125840-02?

At minimum, provide the supplier with:

1. Exact part number: 125840-02
2. Existing 3500/15 rack configuration
3. AC input voltage at the installation
4. Existing PIM and power-supply part numbers
5. Condition requirement: Factory Sealed, New Surplus, or Refurbished/Tested
6. Required warranty period
7. Required delivery date

The most important check is the input-voltage requirement. If the rack uses 175–264 VAC RMS, 125840-02 is not the correct AC PIM; the documented high-voltage AC spare is 125840-01.
