3. Key Technical Specifications
| Parameter | Specification Value |
|---|---|
| System Compatibility | Master controller for all 3500-series monitor modules |
| Data Acquisition | Collects both static condition data and dynamic transient waveforms |
| Network Integration | Direct interface with Bently Nevada System 1 optimization software |
| Configuration Storage | Non-volatile memory stores master rack configuration parameters |
| Front Panel Ports | RS-232 configuration port and 10Base-T/100Base-TX Ethernet port |
| Security | Hardware key-switch prevents unauthorized configuration changes |
| Power Consumption | 10.5 Watts typical backplane draw |
| Slot Requirement | Must be installed in Slot 1 (directly adjacent to power supplies) |
| Status Indicators | OK, TX/RX (transmit/receive), TM (trip multiply), CONFIG OK |
4. Product Introduction & Supply Chain Strategy
The Bently Nevada 125840-02 is the physical circuit board assembly that powers the 3500/22M Transient Data Interface (TDI). It functions as the absolute brain of the 3500 Machinery Protection System. Residing in slot 1 of the chassis, it holds the master configuration file for every module in the rack, coordinates backplane timing, and continuously streams high-resolution transient vibration data (like startup/coast-down plots) to the plant’s System 1 diagnostic software.
Securing this specific master controller as a New Surplus asset is the highest-leverage supply chain decision for your protection loops. If a 3500/22M module fails, you lose the ability to configure the rack, modify alarm setpoints, or collect condition monitoring data. Refurbished TDI cards often carry compromised flash memory sectors or degraded network ICs that can corrupt your master configuration file or drop connection to System 1. Deploying a certified New Surplus 125840-02 ensures flawless memory retention and uncorrupted data flow, guarding against total rack management failure without suffering extended factory lead times.

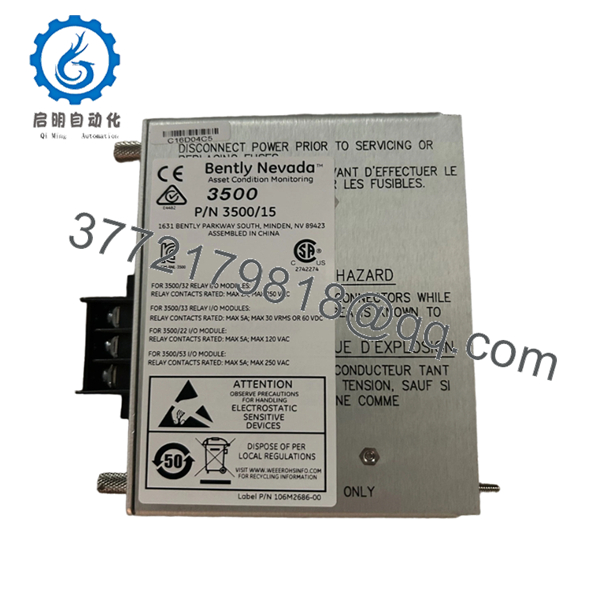

- 125840-02
5. Installation & Configuration Guide
1Pre-Installation Prep & SafetyEstimated time: 10 min1.Pre-Installation Prep & Safety:Estimated time: 10 min.
Crucial: Backup your current rack configuration using the 3500 Rack Configuration software before touching the hardware. Ground yourself with an ESD wrist strap. Acknowledge that while the TDI can be hot-swapped, doing so temporarily suspends transient data collection to System 1.
2Module RemovalEstimated time: 5 min2.Module Removal:Estimated time: 5 min.
Turn the front panel key-switch to the “RUN” position. Loosen the top and bottom retaining screws on the TDI faceplate. Pull the ejector tabs outward to disengage the backplane connectors, then slide the 125840-02 card out of slot 1 smoothly.
3Installation & SeatingEstimated time: 5 min3.Installation & Seating:Estimated time: 5 min.
Verify the hardware dip switches (if applicable for legacy addressing) on the new 125840-02 board match the old unit. Slide the new module into slot 1. Press the ejector tabs firmly inward to seat the card into the backplane, and tighten the retaining screws.
4Configuration Download & SyncEstimated time: 15 min4.Configuration Download & Sync:Estimated time: 15 min.
Connect your maintenance laptop to the front RS-232 configuration port. Turn the key-switch to the “PROGRAM” position. Use the 3500 configuration software to download your saved rack configuration file directly to the new TDI module. Once verified, return the key to “RUN” to lock the logic.
6. Firmware/Software Versions & Upgrade Notes
The 125840-02 (3500/22M) dictates the firmware baseline for the entire 3500 rack. When installing a new TDI, its firmware version must be compatible with the existing monitor cards (like the 3500-42M or 3500-53M).
If the new TDI carries a significantly newer firmware version (e.g., v5.xx) while the rest of the rack operates on legacy v2.xx firmware, you may experience “Module Incompatible” errors. In these scenarios, you must use the Bently Nevada Firmware Upgrade Tool to either flash the new TDI down to match the legacy rack (if supported), or sequentially upgrade the subordinate monitor cards to match the new TDI standard. Always consult the Bently Nevada firmware compatibility matrix before initiating a rack-wide flash.
7. Frequently Asked Questions (FAQ)
If the 125840-02 TDI fails, does the machine lose its protection trip logic? No. The individual monitor cards (like the 3500-42M) retain their specific alarm and trip logic in their own local memory and continue to protect the machine independently. However, if the TDI fails, you cannot change configurations, you lose the ability to view data in System 1, and the rack cannot communicate with the DCS via gateway cards.
Why is a New Surplus TDI critical compared to a refurbished one? The TDI manages continuous, high-volume data traffic and constant EEPROM read/write cycles. Refurbished modules possess aged memory chips that are closer to their write-cycle limits, leading to sudden configuration corruption. A New Surplus unit provides a fresh memory lifecycle, ensuring your master configuration remains secure.
What is the purpose of the key-switch on the front panel? The key-switch is a physical security measure. When in the “RUN” position, the rack configuration is locked and cannot be altered via network or serial connection. To download a new configuration or alter setpoints, an operator must physically insert the key and turn it to “PROGRAM”.
Does the 125840-02 module replace the older 3500/20 RIM module? Yes, the 3500/22M TDI was designed as the direct upgrade and replacement for the obsolete 3500/20 Rack Interface Module (RIM). Upgrading to the 125840-02 TDI provides enhanced Ethernet connectivity and direct integration with System 1 without needing external communication processors.
What are the warranty terms for this New Surplus controller? We cover this Bently Nevada 125840-02 TDI module with a complete 1-year functional warranty. If the module experiences any backplane synchronization faults, memory retention failures, or network communication drops under standard operating conditions, we will issue a full replacement.
