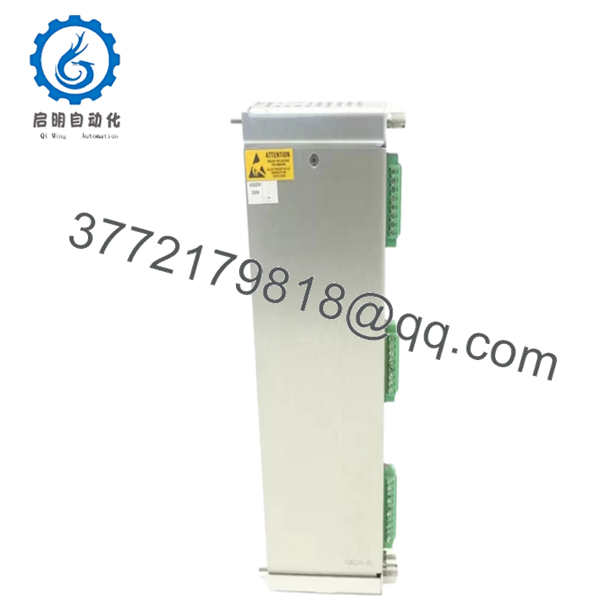

Bently Nevada 128229-01 Prox/Seismic I/O Module with Internal Terminations

  • Model: 128229-01
  • Brand: Bently Nevada
  • Series: 3500 Monitoring System
  • Core Function: Prox/Seismic transducer interface
  • Product Type: I/O Module for 3500/42M
  • Key Specs: Internal terminations, supports proximity/acceleration/velocity inputs
  • Condition: New Original / New Surplus
Get a Quote
Categories: , , , , SKU: 128229-01 Brand:

Description

3. Key Technical Specifications

  • Compatibility: 3500/42M Proximitor/Seismic Monitor
  • Input Signal Range: -10 Vdc to +10 Vdc
  • Transducer Support: Proximity, acceleration, Velomitor
  • Power Consumption: 10.5 Watts (typical for paired monitor)
  • Terminations: Internal
  • Buffered Outputs: Coaxial connectors per channel
  • Transducer Power: -24 Vdc
  • Operating Temperature: -30°C to +65°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 95% non-condensing
  • Dimensions: 241.3 mm x 24.4 mm x 99.1 mm
  • Weight: 0.20 kg (0.44 lbs)

4. Product Introduction

The Bently Nevada 128229-01 is the Prox/Seismic I/O Module with internal terminations for the 3500/42M Proximitor/Seismic Monitor. It interfaces proximity probes, accelerometers, and velocity sensors to the monitor module for vibration and position measurements.

It provides buffered outputs and transducer powering in a standard 3500 rack setup. Use it for direct field wiring termination at the rear of the rack in machinery protection and condition monitoring applications.

128229-01
128229-01

5. Troubleshooting Quick Reference

Symptom Possible Cause Relevance to this Part Quick Check Method Recommendation
No transducer signal Wiring or power issue ✅ High Measure -24V at transducer terminals Verify power supply from I/O module
Buffered output flat Probe failure or gap out of range ✅ High Check DC gap voltage Adjust or replace transducer
Noisy or erratic signals Grounding or shielding problem ✅ High Inspect cable shields Ensure single-point grounding
Monitor Not OK I/O module fault or open circuit ✅ Medium Swap with known good I/O Test continuity on field wiring
Incorrect scaling Wrong I/O type or config ✅ Medium Confirm module part number matches config Verify in 3500 software
High temperature drift Environmental beyond limits ❌ Low Check rack ambient Improve cooling or ventilation

Send gap voltages, wiring diagrams, and monitor status for additional help.

6. Frequently Asked Questions (FAQ)

What transducers does the 128229-01 support? It works with standard proximity probes, accelerometers, and Velomitor sensors on the 3500/42M monitor.

Is this I/O module hot-swappable? No. Power down or bypass associated protection channels before swapping to avoid false alarms or trips.

What condition is this unit? New Original / New Surplus. Each undergoes inspection and basic continuity/power testing.

How does it differ from external termination versions? This model has internal terminations for direct field wiring. External versions (like 128240-01) use separate termination blocks.

Any special wiring considerations? Use shielded cable with proper grounding. Avoid ground loops. Match transducer type and scale factor in the monitor configuration.

Will this work with my existing 3500/42M monitor? Yes, as long as the I/O type matches your configuration. Confirm part numbers and firmware compatibility.

Common issues during replacement? Mismatched I/O type causes scaling or Not OK errors. Take photos of existing wiring and verify all connections after install. Test buffered outputs and gap voltages before returning to service.
