Key Technical Specifications
| Parameter | Specification |
| Part Number | 129478-01 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| System Compatibility | Bently Nevada 3500/15 Power Supply Chassis |
| Associated Front Module | 129486-01 High Voltage DC Power Supply |
| Input Voltage Range | 88 to 140 Vdc |
| Maximum Current Draw | 2.5 A max (at full rack capacity) |
| Over-Voltage Protection | Integrated fast-acting fuse (opens at >140 Vdc) |
| Under-Voltage Behavior | Failsafe; under-voltage conditions cause no hardware damage |
| Mounting Position | Rear half-height slot (directly behind 3500/15 supply) |
| Dimensions (H × W × D) | 120.7 mm × 25.4 mm × 114.3 mm (4.75 in × 1.0 in × 4.5 in) |
| Weight | 0.34 kg (0.75 lb) |
| Operating Temperature | −30°C to +65°C (−22°F to +150°F) |
Product Introduction & Supply Chain Strategy

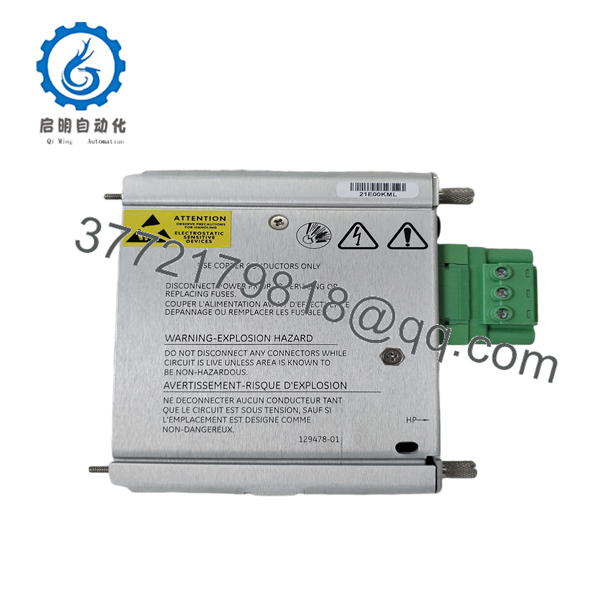

The Bently Nevada 129478-01 is a high-voltage DC Power Input Module (PIM) that conditions and routes 88 to 140 Vdc field power into the 3500/15 power supply chassis. It mounts in the rear half-height slot directly behind the main power supply card to safeguard downstream turbine and rotating machinery monitoring racks.
As a legacy component, securing this part as New Surplus guarantees total physical and electrical integrity without the degraded capacitors or heat-stressed traces common in second-hand units. Strategic stocking of 1–2 New Surplus units mitigates severe Total Cost of Ownership (TCO) risks, eliminating unplanned downtime costs that far outweigh the purchase price.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Perform Lock-Out/Tag-Out (LOTO) on the incoming 88–140 Vdc feeder line before touching the terminal connections.
- Put on a grounded anti-static wrist strap connected to the rack chassis earth ground.
- Label all high-voltage DC field wiring (+DC, -DC, Ground) and photograph the terminal wiring layout for verification.
Stage 2: Removal
- Loosen the two thumbscrews securing the existing rear PIM module using a flathead screwdriver.
- Pull the module straight back out of the rack guide rails. Avoid twisting to prevent damaging the internal backplane connector pins.
Stage 3: Installation (Clone & Seat)
- Verify the replacement 129478-01 board fuse is intact and matches the factory specification.
- Slide the module into the rear half-height slot behind the 3500/15 power supply module.
- Push firmly until the card edge connector seats into the backplane, then hand-tighten the mounting thumbscrews.
Stage 4: Power-On & Testing
- Reconnect field wiring to the terminal block, ensuring proper polarity (+DC, -DC, Earth Ground).
- Measure incoming feeder voltage with a multimeter to confirm it stays within the 88 to 140 Vdc range.
- Energize the DC circuit breaker and verify the front 3500/15 power supply “Supply OK” LED illuminates green.
- 129478-01
- 129478-01
Firmware/Software Versions & Upgrade Notes
- Firmware Dependency: As a passive power distribution interface card, the 129478-01 contains no programmable microprocessor or flash firmware.
- System Software Compatibility: Fully compatible with all revisions of Bently Nevada 3500 System Rack Configuration Software and Rack Interface Modules (3500/22M).
- Power Supply Matching: Ensure the front slot contains the matching High Voltage DC Power Supply module (129486-01). Do not pair this PIM with Low Voltage DC (133292-01) or Universal AC (106M1079-01) front modules to prevent equipment damage.
Frequently Asked Questions (FAQ)
Is this unit a genuine New Surplus module or a refurbished part?
This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.
Why is New Surplus priced higher than refurbished cards on the market?
Refurbished cards often hide internal thermal fatigue, weakened solder joints, and degraded over-voltage fuses. Saving a few hundred dollars on a used module risks an emergency trip on critical turbines, where downtime costs can exceed $50,000 per hour. New Surplus guarantees 100% operational life expectancy.
What happens if the input voltage exceeds the 140 Vdc threshold?
The 129478-01 features an internal fast-acting fuse designed to open when voltage exceeds 140 Vdc. This sacrificial protection prevents over-voltage spikes from propagating into the main 3500 backplane and destroying expensive monitoring cards.
Can I hot-swap the 129478-01 module while the 3500 rack is running?
If your 3500 rack utilizes a redundant dual power supply setup (upper and lower power supply slots populated), you can safely replace one PIM/Power Supply pair while the second supply carries the rack load. If operating a single power supply system, removing the PIM will shut down the rack.
What warranty covers this 129478-01 module?
Every New Surplus 129478-01 module comes backed by a 1-year functional warranty. Each shipment includes verification paperwork and ESD-safe packaging to ensure immediate drop-in readiness.
