3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 4 (Ch 1-2: Prox/Accel; Ch 3-4: Velomitor) |
| Compatible Monitor | 3500/42M Proximitor/Seismic Monitor |
| Input Types | Proximity, Acceleration, Velomitor® |
| Power Consumption (Monitor) | 7.7 W typical |
| Input Impedance | 10 kΩ (Prox/Accel) |
| Sensitivity (Radial Vibration) | 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil) |
| Sensitivity (Velocity) | 20 mV/(mm/s) pk or 5.8 mV/(mm/s) pk |
| Buffered Outputs | Front-panel coaxial, short-circuit protected, 550 Ω |
| Recorder Output | 4–20 mA, ±0.25 % accuracy (room temp) |
| Dimensions (Barrier I/O) | 241.3 mm × 24.4 mm × 163.1 mm (9.50 in × 0.96 in × 6.42 in) |
| Weight (Barrier I/O) | 0.46 kg (1.01 lb) |
| Operating Temperature | –30 °C to +65 °C (typical system) |
| Hazardous Area Options | ATEX/IECEx, cNRTLus Class I Div 2 (config dependent) |
4. Product Introduction

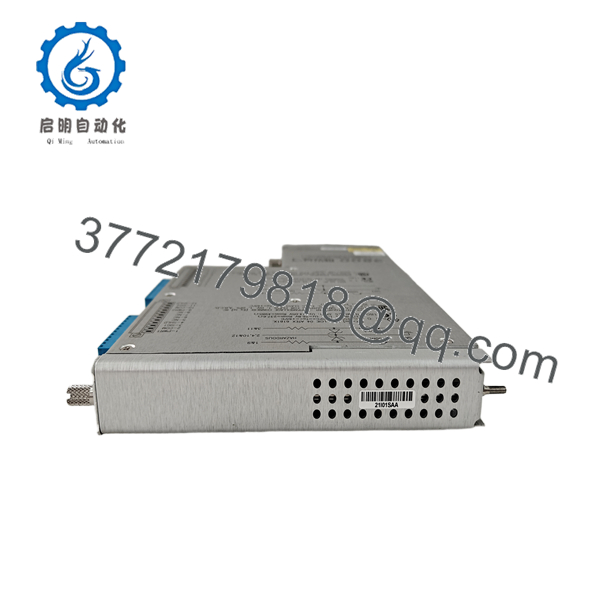

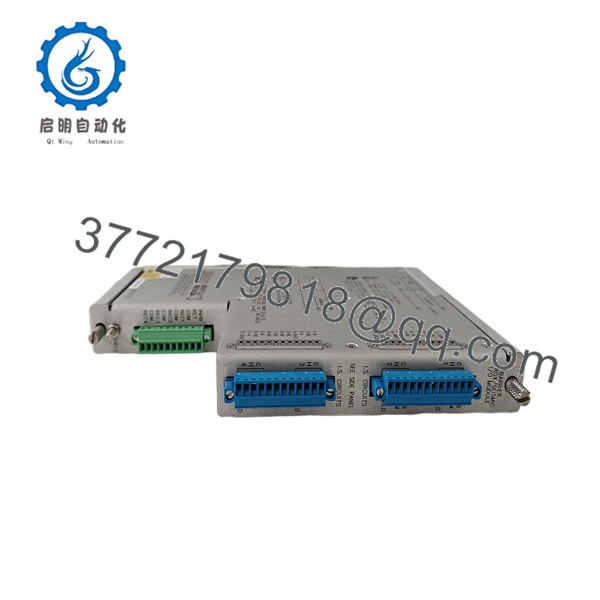

The Bently Nevada 135489-02 is the internal-barrier I/O module for the 3500/42M Proximitor/Seismic Monitor. It mounts in the rear of a 3500 rack and provides terminations plus intrinsic-safety barriers for two proximity/acceleration channels and two Velomitor channels.
This mixed configuration lets one monitor card handle both shaft vibration (or thrust/eccentricity) on channels 1–2 and casing velocity on channels 3–4 without external barriers or terminal blocks. It is the direct replacement for any 3500/42M system ordered with option A05 and is used on turbines, compressors, and pumps where both proximity and seismic measurements are required in a single slot pair.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No OK LED / channels Not OK | Transducer power missing or shorted | ✅ High | Measure –24 Vdc at I/O terminals; check for short on probe cable | Replace probe or cable first; then swap I/O module |
| High vibration reading on Velomitor channels only | Wrong channel type configured or sensor mismatch | ✅ High | Verify rack configuration software shows Velomitor on Ch 3/4 | Confirm sensor is Velomitor; reconfigure if needed |
| Gap voltage out of range on Prox channels | Probe gap incorrect or barrier failure | ✅ Medium | Measure gap voltage at buffered output BNC | Adjust probe gap; if still bad, test with known-good probe |
| Communication timeout after module swap | Firmware or configuration mismatch | ❌ Low (I/O side) | Read diagnostic buffer via 3500 software | Restore original configuration; verify monitor firmware |
| Intermittent readings after installation | Loose Euro-style connector or ESD damage | ✅ High | Reseat connector; inspect for bent pins | Always use ESD strap; torque terminals per manual |
| All channels OK but no 4–20 mA output | Recorder output short or load >600 Ω | ❌ Low | Measure current into known 250–500 Ω load | Check external wiring before replacing module |
If symptoms persist, capture photos of the module faceplate LEDs, terminal wiring, and a diagnostic log from the 3500 rack configuration software, then contact technical support.
- 3500/42M 135489-02
- 3500/42M 135489-02
6. Frequently Asked Questions (FAQ)
Q: Is the 135489-02 a complete monitor or just the I/O card? A: It is the rear I/O module only. You still need a matching 3500/42M front monitor module (typically 176449-02 or equivalent) installed in the same rack slot pair.
Q: Can I use this module for four proximity probes? A: No. Channels 1–2 are Prox/Accel only; channels 3–4 are hard-wired for Velomitor. For four Prox/Accel channels you need the 135489-01 instead.
Q: Does it support hot-swap? A: No. Power down the rack or at least remove the associated monitor module before inserting or removing the I/O card. Hot-swapping can damage the backplane or the barriers.
Q: Why is the price lower than a factory-new unit from Baker Hughes? A: This is New Original / New Surplus stock—genuine Bently Nevada parts that were never installed in a running system. They carry a 1-year warranty and have been functionally verified.
Q: Will my existing configuration file work after replacement? A: Yes, provided the channel types (Prox/Accel vs Velomitor) match. Always back up the current configuration and note the exact firmware revision of the front monitor card before swapping.
Q: Are the internal barriers suitable for Zone 0/1? A: The barriers are designed for the hazardous-area approvals available on the 3500 system (typically Zone 2 / Class I Div 2). Confirm the exact approval option on your rack and consult the 3500 Internal Barrier datasheet (141495) for entity parameters before installation in classified areas.
Q: What is the typical lead time and warranty? A: Units are normally in stock for same- or next-day shipment. All modules ship with a 1-year warranty against defects in materials and workmanship.
