Bently Nevada 136294-01 Process Variable Isolated I/O Rear Card

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Bently Nevada 136294-01 is a rear I/O module designed for the 3500/62 Process Variable Monitor, providing isolated signal interfaces for critical plant parameters such as pressure, temperature, flow, and level. It accepts +4 to +20 mA inputs and features internal termination screw blocks to route isolated analog measurements directly into the 3500 rack backplane for machinery protection logic.

Sourcing this module as New Surplus ensures strict signal isolation performance, avoiding the capacitor degradation and ground-loop crosstalk typical in pulled or reconditioned hardware. Maintaining 1–2 New Surplus units in plant buffer stock prevents extended lead-time delays and eliminates costly un-planned trips on high-value process trains.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO) procedures on active +4 to +20 mA transmitter loops wired to the 3500/62 slot.
2. Put on a grounded anti-static wrist strap connected directly to the 3500 system earth ground.
3. Photograph and label field wire pairs (+, −, Shield) connected to the rear terminal blocks before disconnection.

Stage 2: Removal

1. Loosen the top and bottom captive thumbscrews securing the existing rear 136294-01 module using a flathead screwdriver.
2. Pull the module straight backward along the card guide rails. Do not twist or rock the card to prevent bending backplane pins.

Stage 3: Installation (Clone & Seat)

1. Inspect the new 136294-01 backplane edge connector and terminal strips for zero physical defects.
2. Align the module with the card guides in the designated rear slot directly behind the 3500/62 monitor card.
3. Slide the card in firmly until it seats into the backplane connector, then hand-tighten the mounting thumbscrews.

Stage 4: Power-On & Testing

1. Reconnect field transmitter wiring to the internal terminal blocks according to the system wiring diagram.
2. Re-energize the 3500/62 slot and verify that the front 3500/62 monitor displays a solid green “OK” LED.
3. Measure live 4–20 mA current loops with a calibrated meter to confirm accurate signal conversion in the 3500 Rack Configuration Software.

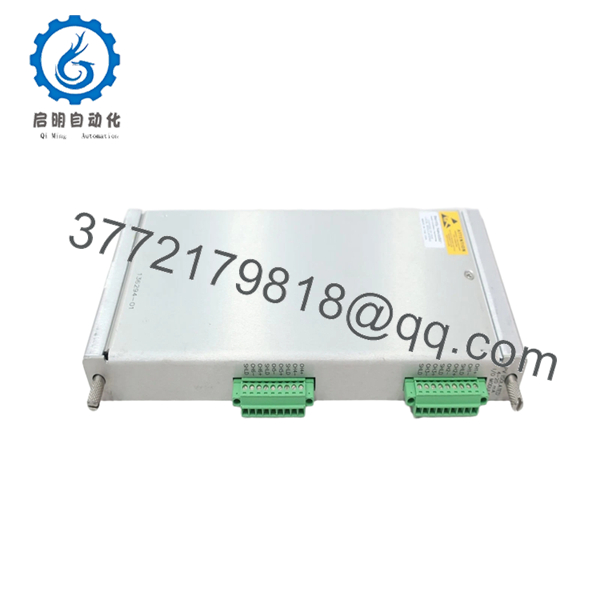

136294-01

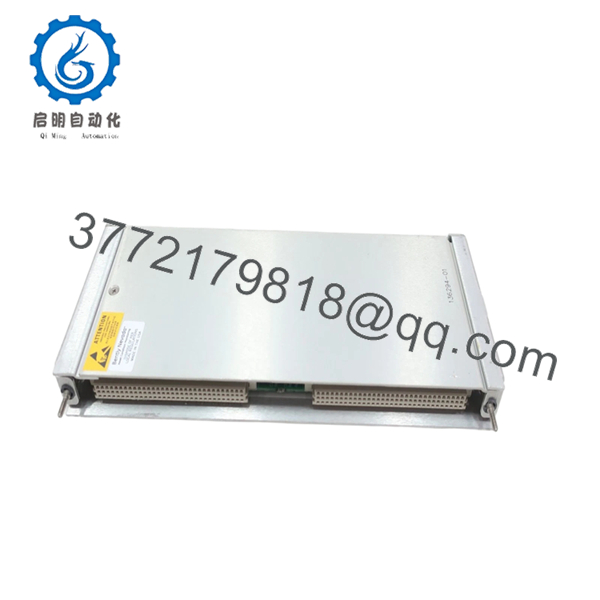

136294-01

Firmware/Software Versions & Upgrade Notes

• Firmware Requirements: When adding a 136294-01 module to an existing 3500 system, verify that the 3500/20 Rack Interface Module runs Firmware V1.07 (Rev G) or later, and the 3500/62 main card uses compatible firmware.
• System Software: Configured via Bently Nevada 3500 System Configuration Software (Version 2.20 or later).
• Input Selection: Ensure the software channel setup is explicitly defined for “Isolated 4-20 mA” mode. Matching software input definitions with the physical 136294-01 I/O hardware is required to avoid invalid process reading faults.

Frequently Asked Questions (FAQ)

Is this unit a genuine New Surplus module or a refurbished part?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.

Why buy New Surplus instead of lower-cost refurbished 136294-01 modules?

Refurbished analog I/O modules often carry invisible thermal degradation in optocouplers and filter capacitors. Signal drift or unexpected isolation breakdown on a 4-20 mA loop can cause improper trip signals on process equipment, leading to downtime costs that far exceed hardware savings.

What is the difference between Internal Terminations (136294-01) and External Terminations?

The 136294-01 features internal Euro-style screw terminal blocks mounted directly on the module circuit board. External termination variants connect to external DIN-rail terminal blocks via a multi-conductor cable. You must select the model that matches your physical cabinet wiring architecture.

Can I hot-swap this rear I/O module while the 3500 rack is powered?

Removing a rear I/O module interrupts field sensor signals to the front 3500/62 monitor, causing a channel “Not OK” status and potentially tripping linked machine protection relays. Always bypass active protection channels in software before pulling an I/O card.

What warranty covers this 136294-01 module?

Every New Surplus 136294-01 module includes a full 1-year functional warranty. Each card ships in anti-static ESD packaging complete with factory inspection sign-offs.
